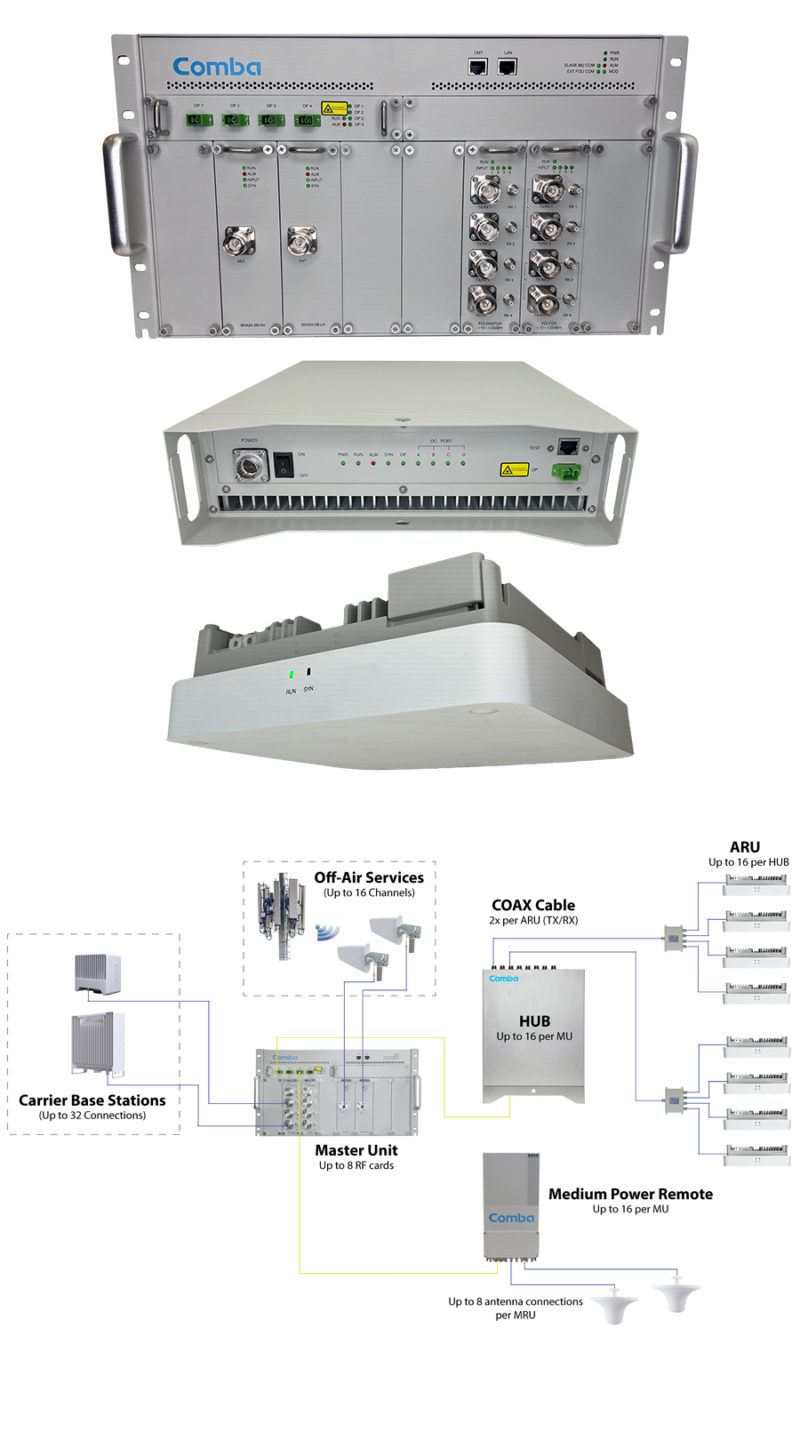

The ComFlex NG Series Distributed Antenna System is the Next Generation of Comba Analog DAS. This is an RF over fiber to RF + Power over coaxial cable solution that enhances a wireless network’s coverage by extending cellular services from existing cell sites to an indoor environment. The system consists of the Master Unit (MU), Fiber Expansion Unit (HUB) and Active (Antenna) Remote Unit (ARU). The MU includes the Chassis with an integrated power supply, Fiber Optical Unit (FOU) and RF Units consisting of BDA Cards. With a modular design, it can support up to 16 independent RF inputs, 16 HUBs, and 256 ARU. The ARU is designed with a compact and slim form factor for easy installation; it is an integrated design which supports 4 independent bands in the consumer signal booster mode, LTE 700MHz, CELL 850 MHz, PCS 1900MHz, and AWS.

This solution is an effective point-to-multipoint distributed antenna system that provides effective coverage enhancement. The Comba DAS offers service providers an optimal solution for multiple applications from a single building to a campus, apartment complex, office building, warehouse, or more! This is the perfect single sector solution for up to 750,000 square feet or multi-sector solution for a campus environment.


Features:

• Coverage Today, Capacity Tomorrow!
• 5G Ready Analog DAS – Upgradeable to 2500BRS and C-Band.
• Modularized Master Unit supports field upgrades and independent gain control.
• Active antenna solution for simple design and installation.
• Multi-Band, Multi-Operator Support – Up to 64 RF Inputs per Sector.
• Off-Air integrated BDA cards for quick building coverage.
• Optical link auto gain control.
• RF link automatic calibration to the Antenna.
• Web based GUI for intelligent commissioning and configuration.
• Self-Commissioning BDA Cards for Off-Air Coverage.
• Power over coax to the antenna – no extra conductors needed!

View ComFlex NG Specifications
