MU-Chassis-AC (Chassis)
– MU-FOU (Fiber Optical Unit – 4 Optical Ports, 600-4000 MHz)
– MU-BDA (See RF Card Solutions Below – Consumer Part 20)
– MU-POI (See RF Card Solutions Below – Industrial)
ARU-HUB-AC (Remote Fiber Hub – Supports up to 16 ARUs)
ARU-6B-Internal (Active Remote Unit – 6 Band Support (700/850/1900/2100/2500/3700) – 19dBm (FDD) / 22dBm (TDD)
Description
Optical Specifications:
| Operating Frequency | 600MHz-1GHz,1.7GHz-2.2GHz, 3.3GHz-4GHz | |
| Optical Fiber | Single Mode | |
| Optical Wavelength | nm | 1310, 1550 + WDM |
| Optical Output Power | dBm | Master Unit: -2 to +2 Hub: 6 to 8 |
| End-to-End Reflectance | dB | < -60 |
| End-to-End Optical Loss | dBo | < 8 |
| Optical Automatic Gain Control Range | dB | 8 |
| Fiber Connectors | SC/APC | |
| Max Remote Units (Hubs) per Master Unit | 16 (with FOU expansion) |
Electrical Specifications:
Power Supply | VAC | 100 – 240 / 50 – 60Hz |
|---|---|---|
| Power Consumption (approx.) | W | < 500 |
| RF Connectors | 4.3-10 - Female (BDA Card, POI Card TX) QMA - Female (POI Card RX) | |
| Operating Temperature | °F | +32 – +113 |
| Operating Humidity | ≤85 | |
| Ingress Protection | IP30 | |
| Enclosure Cooling | Chassis Fan Cooling | |
| Installation Type | 19" Rack |
Mechanical Specifications:
| Product | MU01-RACK-E02 Chassis | MU01-PSU-A92E01 Power Supply | MU01-FOU-SABFOP6 Optical Unit |
|---|---|---|---|
Dimension (in/mm) | 7” x 19” x 15.7” (178 x 482 x 400) | 5.5” x 2.5” x 15.7” (140 x 63 x 400) | 1.5” x 7.3” x 11.8” (37 x 185 x 299) |
Weight (lb/kg) | 24.3 / 11 | 5.5 / 2.5 | 4.4 / 2 |
| Connector Type | N/A | N/A | SC/APC |
ComFlex NG DAS RF Modules
At the heart of the DAS system is controlling and distributing the RF signals. The Master Unit can take up to 8 RF modules to customize the wireless ecosystem. Just simply plug the unit in and make the connections to the remote units.
Features:
• Available for all North American bands including 2500BRS and C-Band
• Independent gain control
ComFlex NG DAS Hub
The Fiber Expansion Unit (Hub) feeds the wireless signals from the master unit
out to the active remote units.
Features:
• Compact, slim design
• Supports up to 16 ARUs
ComFlex NG DAS Active Remote Units

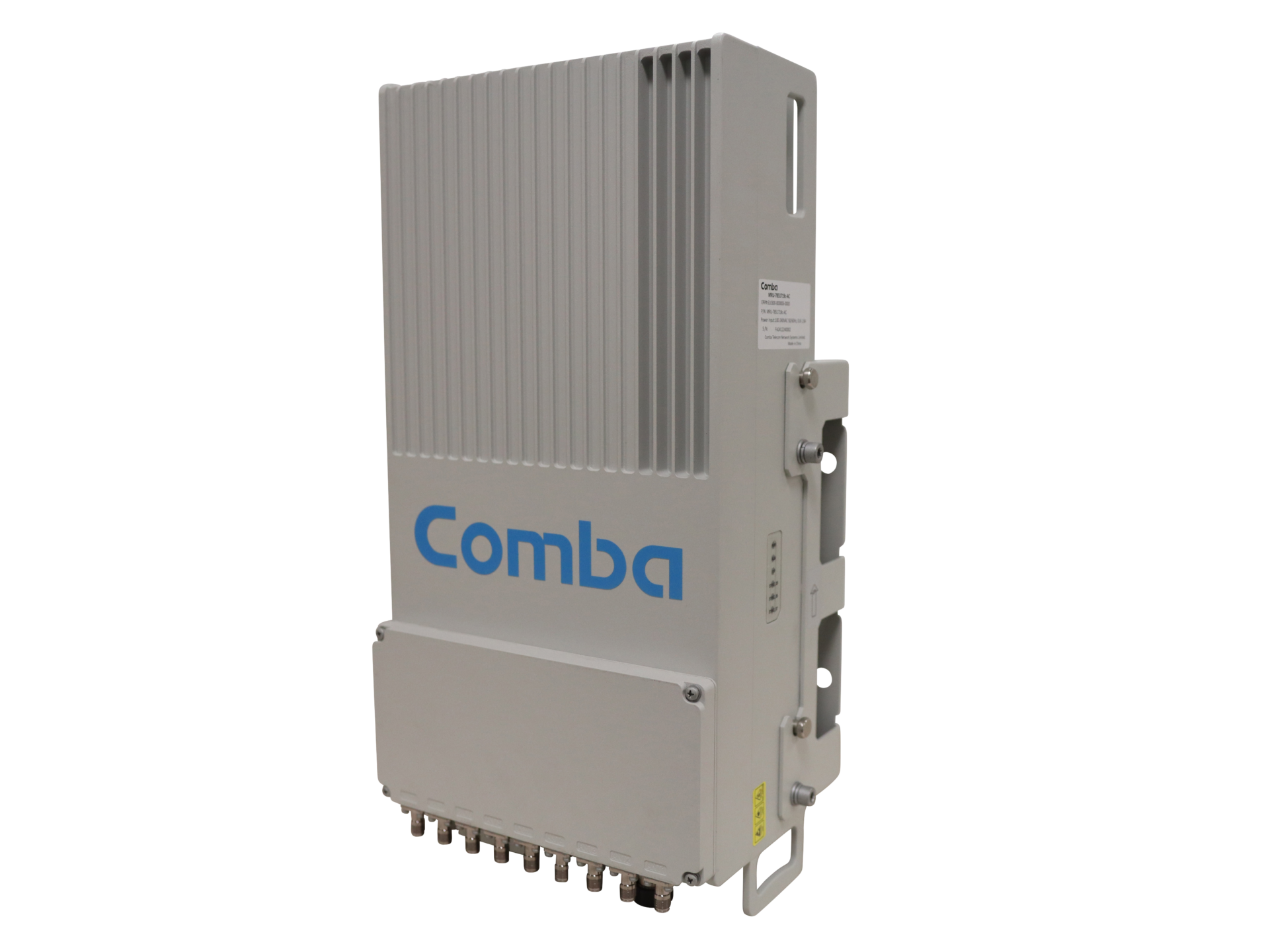

The Active Remote Units are self contained and support 6 wireless bands.
Features:
• Compact, slim design
• Supports 6 independent bands (LTE 700MHz, CELL 800, PCS 1900MHz,
EAWS, BRS 2500TDD and C-Band 3700TDD
ComFlex NG Series Medium Power Remote Units
The ComFlex NG series Medium Power Remote Unit (MPRU) is designed to bring improved signal quality in a compact efficient form factor. The MPRU supports up to 7 independent bands, LTE 700MHz, CELL 850 MHz, PCS 1900MHz, EAWS, BRS 2500TDD, C-Band 3700TDD and C-Band DOD. Supporting all part 20 off air FDD bands while integrating both BRS TDD and C-Band TDD, offers an efficient solution to bring immediate coverage solution.
Features:
• Supports up to 7 Independent Frequency Bands
• 5G Ready Analog DAS – Supports 2500BRS and C-Band
• Supports 194MHz of BRS and 380 MHz of C-Band Spectrum
• Up to 16 MPRU per Master Unit
• Support AC or DC
• Wall mounting
ComFlex NG Battery Backup Units
To support ComFlex NG in case of a loss of power, a 60AH and 100AH Battery Backup Unit is available.
Features:
• Supports internal battery for power backup application
• Provides 4 External alarm ports to connect Dry Contact Port
• Provides 7 Dry connectors to the monitor centre
• Supports local monitoring and control by RJ45 port
• Supports multi alarm LEDs:
o AC fail alarm
o Battery alarm
o Power controller failure alarm
o 4 External alarms

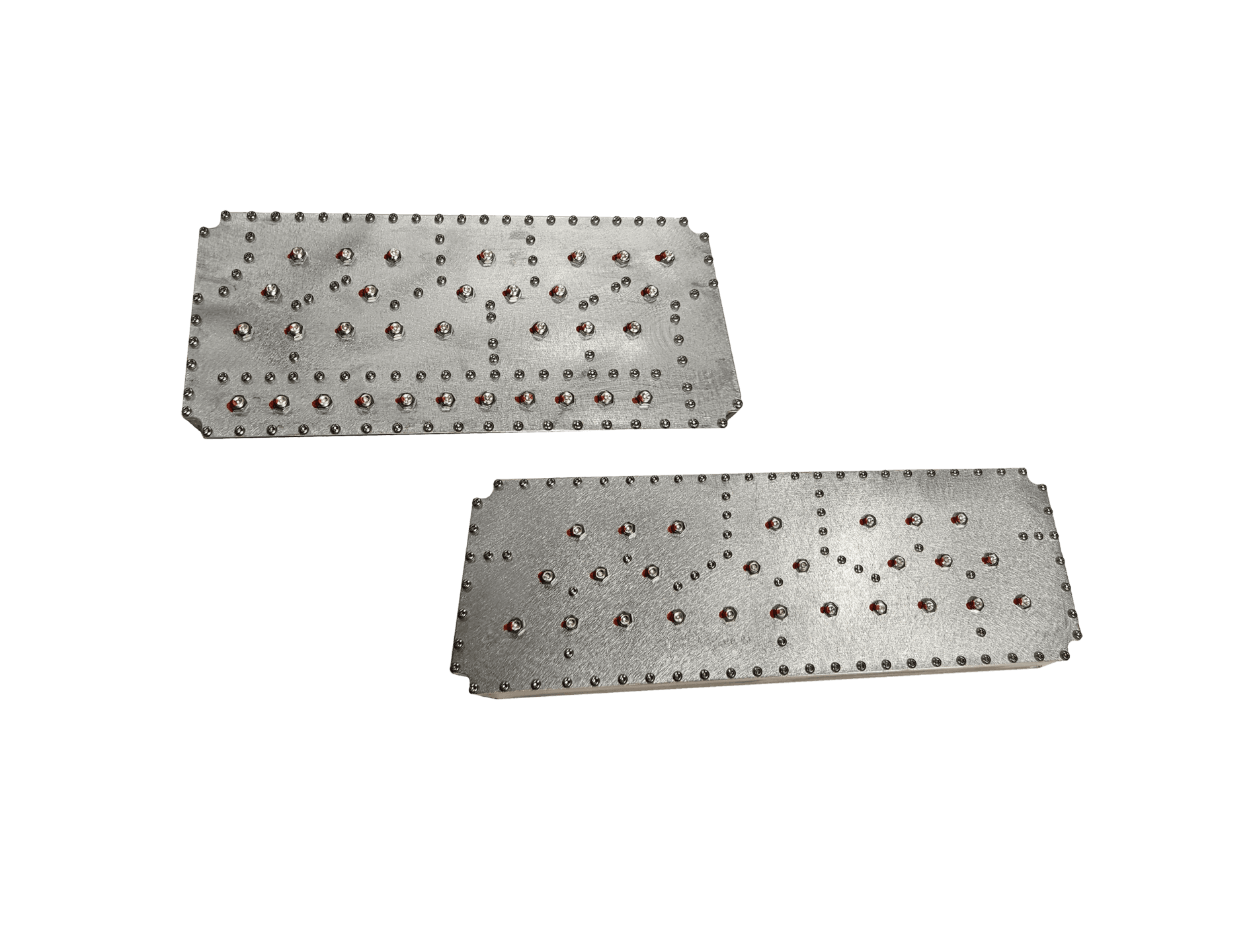

Passive Components
Comba offers power splitters and directions couplers designed for use with the ComFlex NG solultion.
Cable and Connectors
Comba offers 3/8" Plenum rated coax cable to be used with ComFlex NG as well as the connectors needed. Please see below and click the button to see the cable and connector specifications.
Features:
• 3/8" Plenum rated cable
• Both N-Male and N-Female connectors for the 3/8" cable
