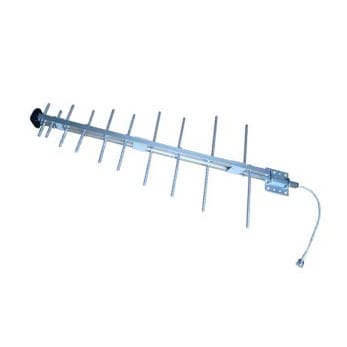

ILP-YMN-V8P
Indoor Log Periodic Directional Antenna
450-512MHz, 758-869MHz , N-Female, Supports UHF and 700/800 MHz Public Safety Band
Features:
• Wideband Coverage: Supports UHF and 700/800 MHz Public Safety Band
• Compact Form Factor: Log-Periodic directional antenna designed for space-limited environments.
• Specialized Application: Engineered for reliable in-building coverage, including elevator shaft deployments.
Description
Electrical Specifications:
| Product Model | ILP-YMN-V8P | |
| Frequency (MHz) | 450-512 | 758-869 |
| Gain (dBi) | 7.0 ± 1.0 | 8.0 ± 1.0 |
| Polarization | Vertical | |

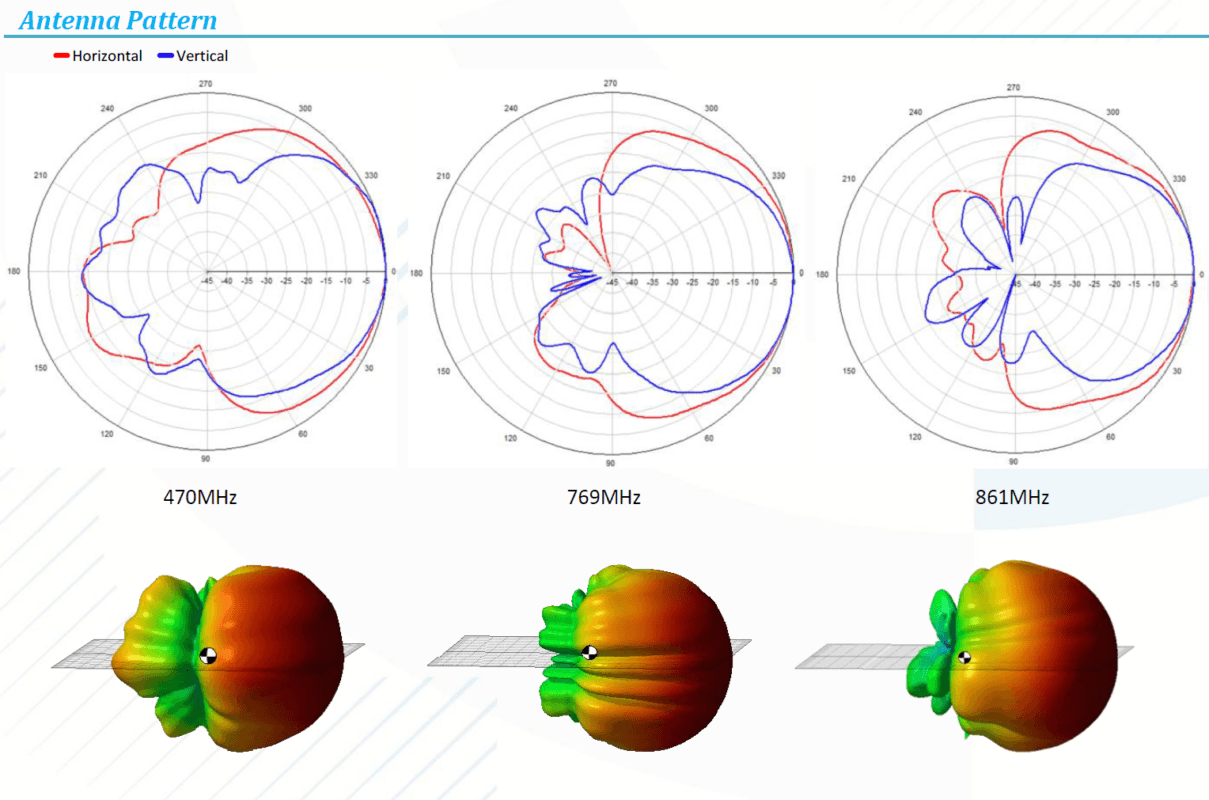

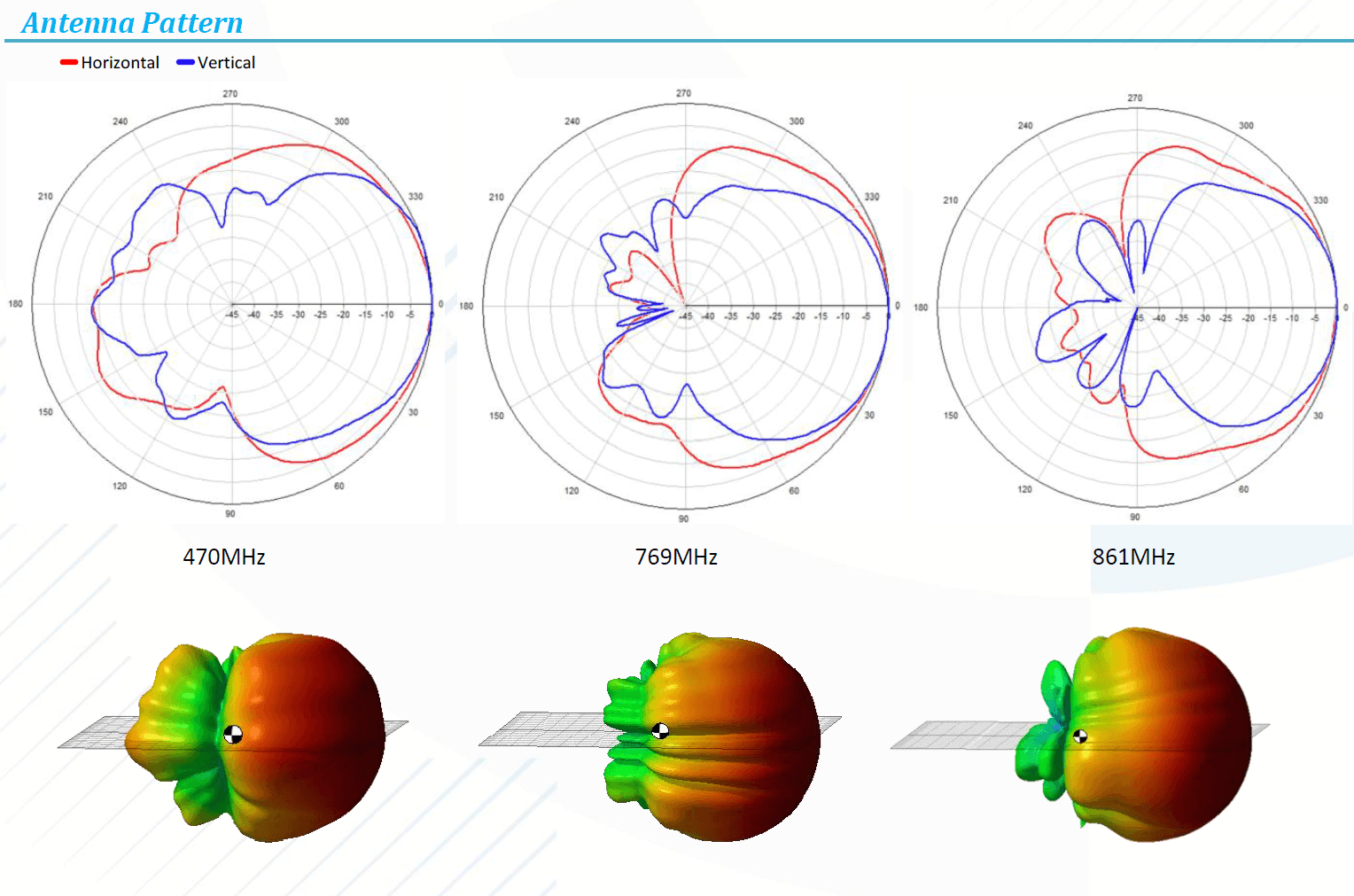

| Beamwidth Horizontal(°) | 90 ± 15 | 80 ± 15 |
| Beamwidth Vertical (°) | 60 ± 10 | 55 ± 10 |
| VSWR | ≤ 1.8 | ≤ 1.8 |
| Front to Back Ratio, Typical | ≥ 10 | ≥ 15 |
| Average Power, max (W) | 50 | |
| Impedance (ohm) | 50 | |
Mechanical Specifications:

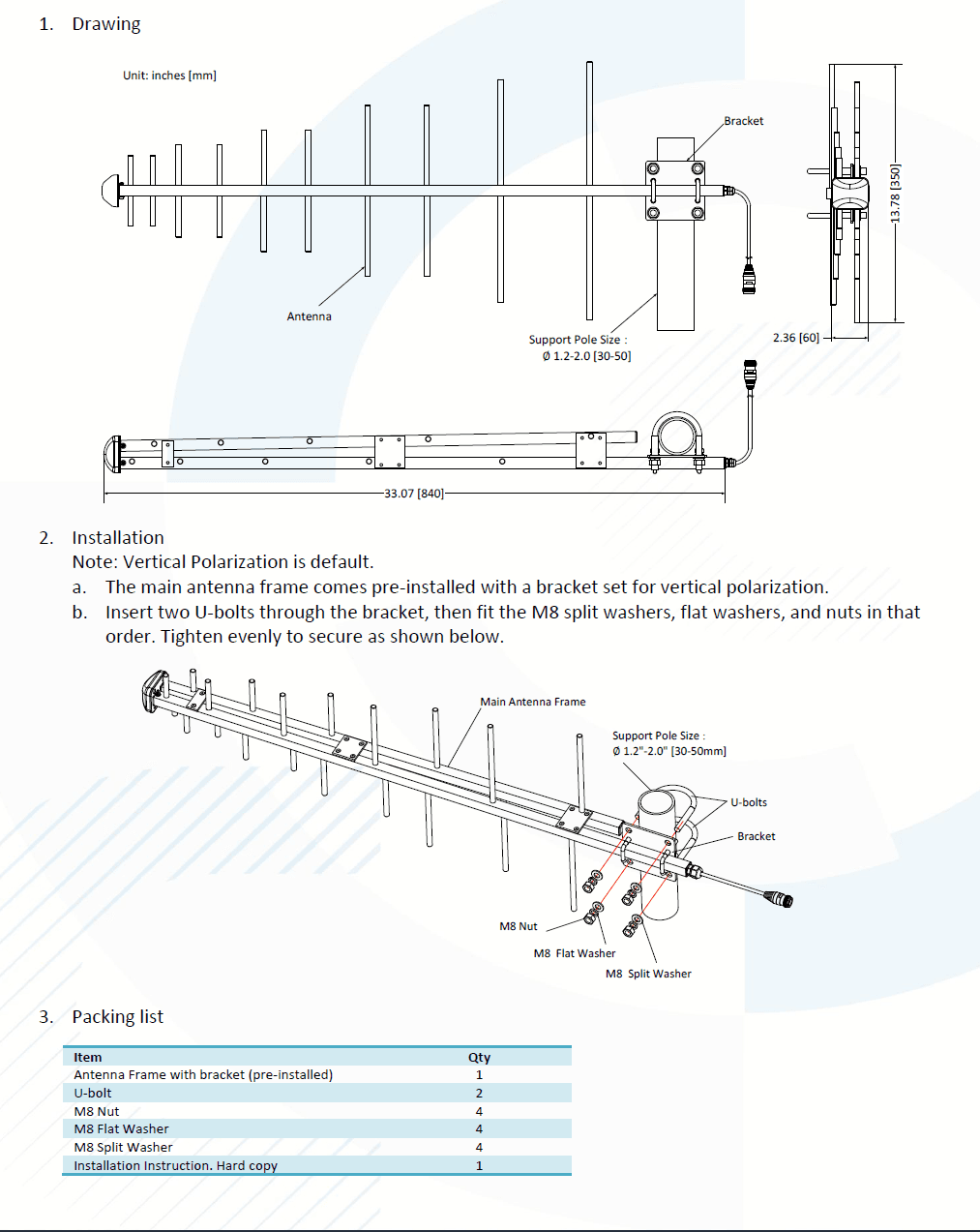

Dimension Diameter, Height (mm/in) | 33.07x13.79x2.36 / 840x350x60 |
| Weight (lb/kg) | 2.2 / 0.98 |
| Shipping Dimension (in/mm) | 35.6x15.0x3.0 / 905x380x75 |
| Shipping Weight | 5.5 / 2.5 |
| Material & Color | Aluminum finished, White |
| Flammability | Ø1.18 - Ø2.00 / Ø30 - Ø50 |
| Maximum Wind Speed(mph) | 89 |
| Connector Type* | N-Female |
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 95% |
| RoHS | Compliant |
 |
 | ||
Datasheet: ILP-YMN-V8P DS 1-0-2_2025_1023
|
