OY-EN-V8P
136-174MHz, N-Female
Features:
• VHF band Yagi antenna covering 136-174MHz
• The Suitable for donor antenna and aluminum finished
Description
Electrical Specifications:
| Frequency (MHz) | 136-174 |
| Gain (dBi) | 8.0 ± 1.0 |
| Polarization | Vertical or Horizontal (optional) |
| Beamwidth Horizontal (°) | 105.0 ± 10.0 |
| Beamwidth Vertical(°) | 65.0 ± 10.0 |
| VSWR | ≤ 2.2 |
| Front to Back Ratio (dB) | ≥ 12 |
| Average Power, max (W) | 50 |
| Impedance (ohm) | 50 |
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | 29.9x42.9x3.2 / 760.0x1090.0x80.0 |
| Weight (lb/kg) | 2.0 / 0.9 |
| Shipping Dimension(in/mm) | 32.7x46.1x5.7 / 830.0x1170.0x145.0 |
| Shipping Weight(lb./kg) | 9.7 / 4.4 |
| Material & Color | Aluminum finished, White |
| Diameter of the pole mounting pole (in/mm) | ∅1.7 - 2.9 / ∅42 - ∅74 |
| Antenna Tilt adjustment (°) | ± 15° |
| Maximum Wind Speed(mph) | 134 |
| Connector type | N-Female |
Environmental Specifications:
| Application | Outdoor |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
| Lightening protection | Direct Grounding |

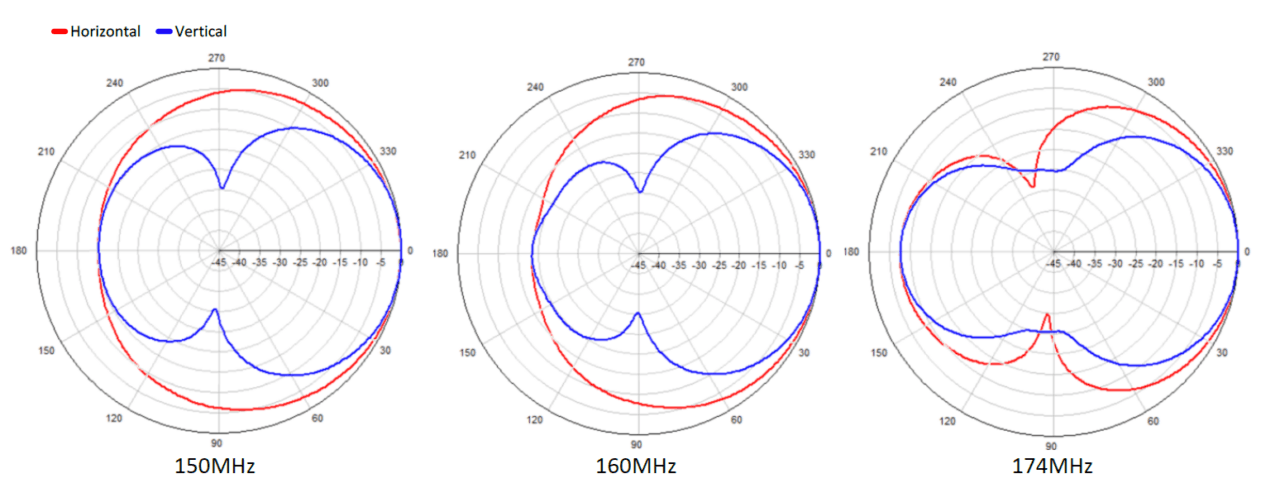

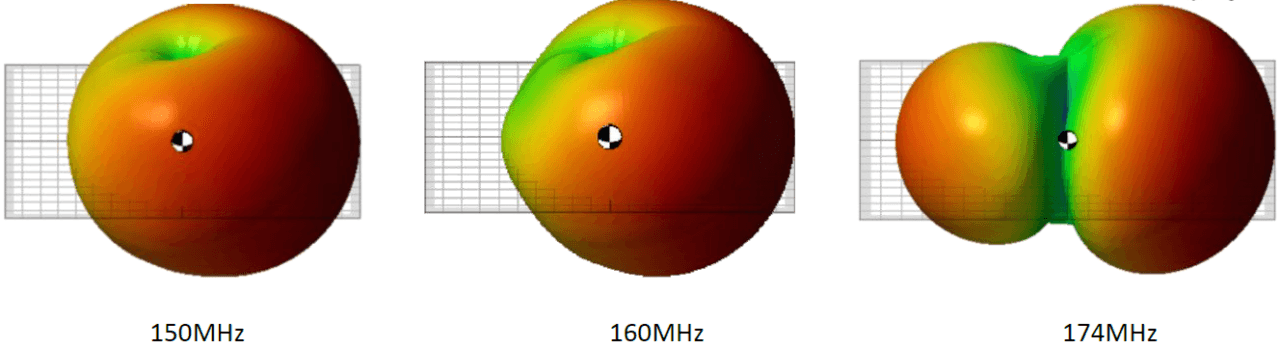

Antenna Pattern:
|

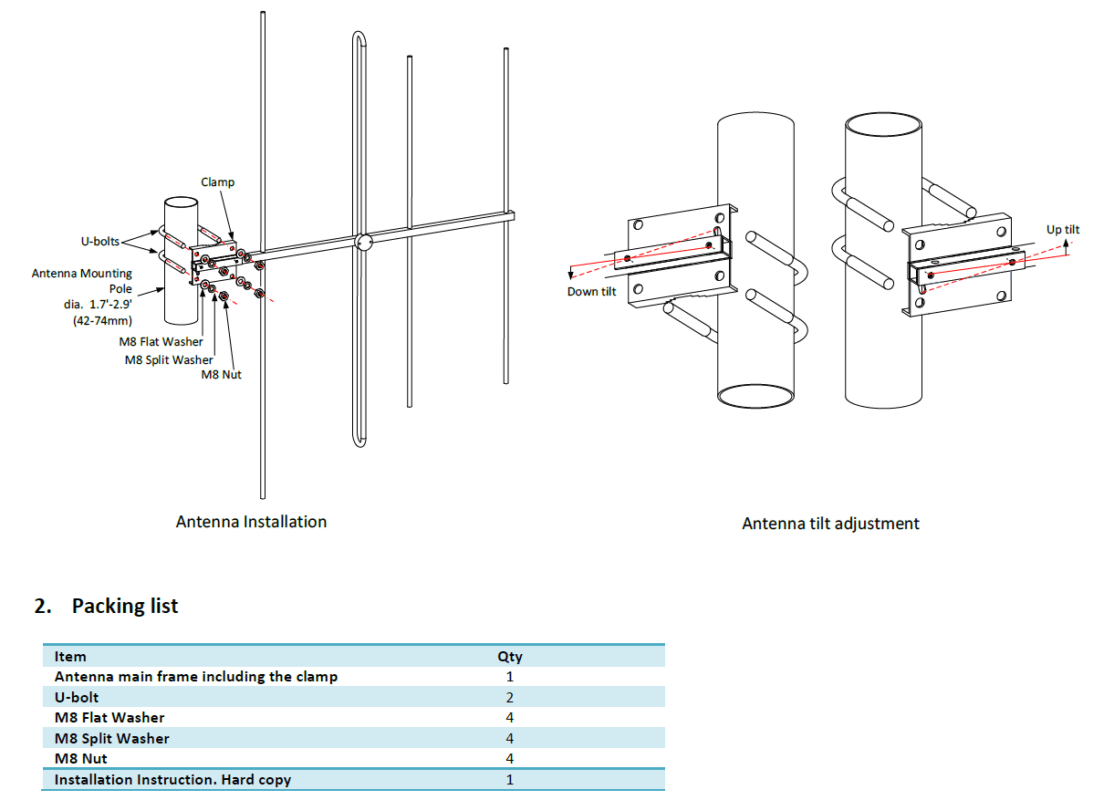

Mechanical Drawing and Installation Guide
a. The clamp is preinstalled with the main antenna frame(vertical polarization as default).
| ||
Datasheet: OY-EN-V8P DS 1-0-2_2025_0827 |
