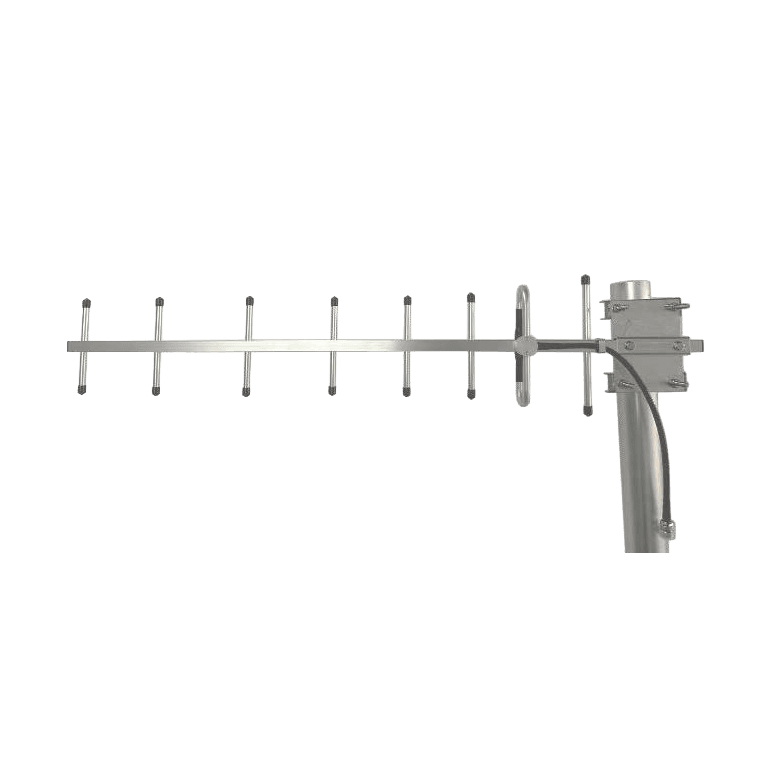

OY-MN-V11P
746-896MHz, N-Female
Features:
• Covering 746-896MHz Public Safety Band
• Narrow Horizontal beamwidth with 8 elements
• Suitable for donor antenna and aluminum finish
Description
Electrical Specifications:
| Frequency (MHz) | 746-896 |
| Gain (dBi) | 11.2 |
| Polarization | Vertical |
| Beamwidth Horizontal (°) | 48 |
| Beamwidth Vertical (°) | 40 |
| Average Power, max (W) | 100 |
| Impedance (ohm) | 50 |
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | 33.5 x 7.5 x 2.0 / 850 x 190 x 50 |
| Weight w/p mounting kit (lb/kg) | 0.9 / 0.4 |
| Shipping Dimension(in/mm) | 35.6 x 9.1 x 2.4 / 905 x 230 x 60 |
| Shipping Weight(lb./kg) | 1.8 / 0.7 |
| Radome Material & color | Aluminum finished, White |
| Diameter of the pole mounting pole (in/mm) | ∅1.57 - ∅2.00 / ∅40 - ∅50 |
| Antenna Tilt adjustment (°) | ±30° max |
| Maximum Wind Speed(mph) | 186 |
| Connector type | N-Female |
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
| Environment | |
| RoHS | Direct Grounding |
Antenna Pattern:
|
Outline Drawing:
| ||
Datasheet: OY-MN-V11P DS 1-0-5_2022_0803 |
