CN-NM-F38/CN-NF-F38
CN-4M-F38/CN-4F-F38

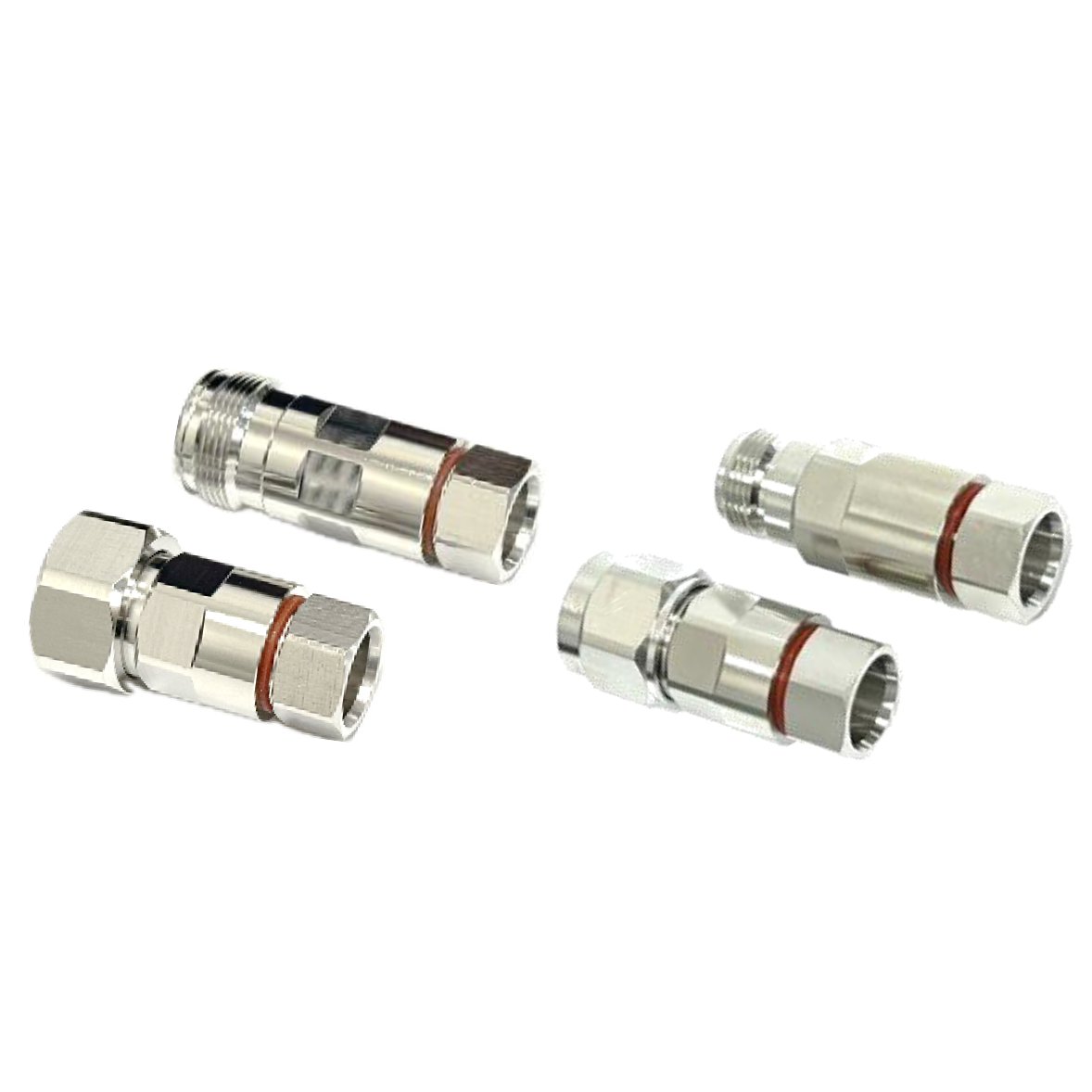

• N-type, 4.3-10 connectors for CS-F38P 3/8” Plenum rated Coaxial Cable
Description
Electrical Specifications:
| Product Model | CN-NM-F38 | CN-NF-F38 | CN-4M-F38 | CN-4F-F38 |
| Connector Type | N-Male | N-Female | 4.3-10 Male | 4.3-10 Female |
| Frequency (MHz) | DC-6000 | |||
| Impedance (ohm) | 50.0 | |||
| Inner Conductor Contact Resistance (mΩ) ≤1 | ≤1 | |||
| Outer Conductor Contact Resistance (mΩ) | ≤1 | |||
| Insulation Resistance (MΩ) | ≥5000 | |||
| Insulation Withstanding Voltage (V) | ≥2500 | |||
| Insert Loss (dB) | ≤0.05√f(GHz) | |||
| VSWR | DC-3.0GHz | ≤ 1.150 3.0-4.2GHz | ≤ 1.20 4.2-6.0GHz | ≤ 1.25 | |||
| PIM (dBc) | ≤ -161 @ 2x 43dBm | |||
Mechanical Specifications:
Dimension (in/ mm) | 1.89×0.87×0.87 / 48.0×22.0x22.0 |
| Weight | 0.13 / 0.06 |
| Shipping Dimension (in/mm) | 2.76×1.57×1.57 / 70.0×40.0x40.0 |
| Shipping Weight (lb/kg) | 0.20 / 0.09 |
| Interface Durability, number of cycles | 100 |
| Connector Type | N-type and 4.3-10 type |
| Outer Conductor Material | Brass, Tri-alloy Plated |
| Inner Conductor Material | Phosphor bronze, Ag Plated |
| Insulator Material | PTFE |
| Other | Brass, Ni Plated |
Environmental Specifications:
| Application | Indoor/Outdoor |
| Operating Temperature | -40℃ to +85℃ |
| Environment | IP67 |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
| Related Products | CS-F38PA, CS-F38PB Coax AP-F38, Auto Preparation tool |

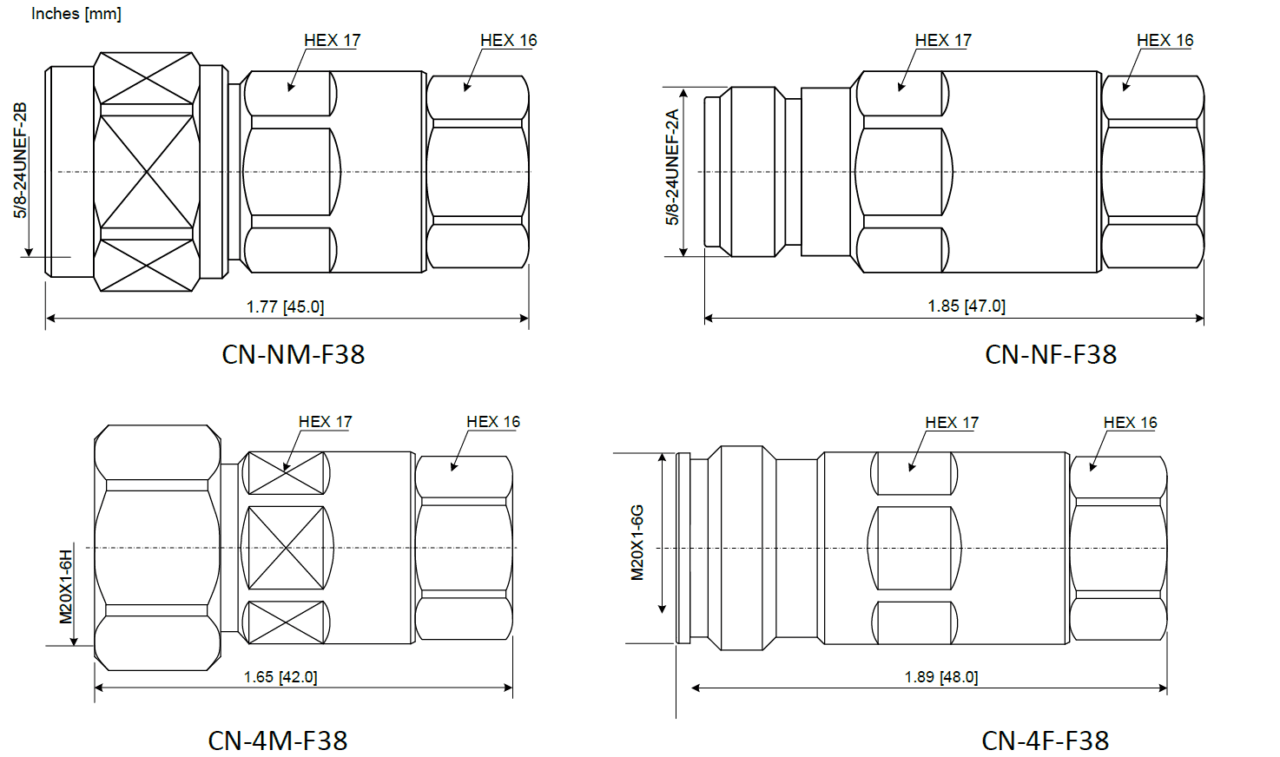

Outline Drawing:
| ||
| Datasheet: CN-xx-F38_DS 1-0-1_2025_00303 |

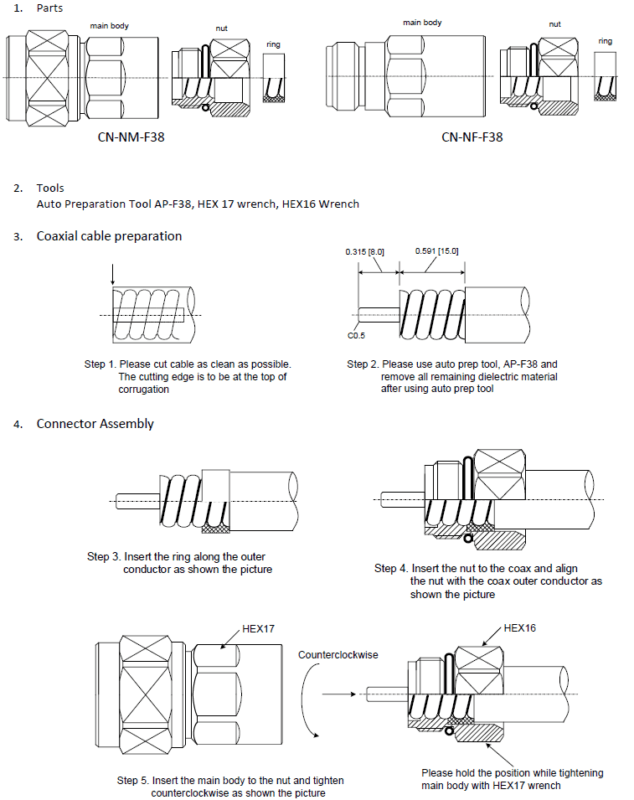

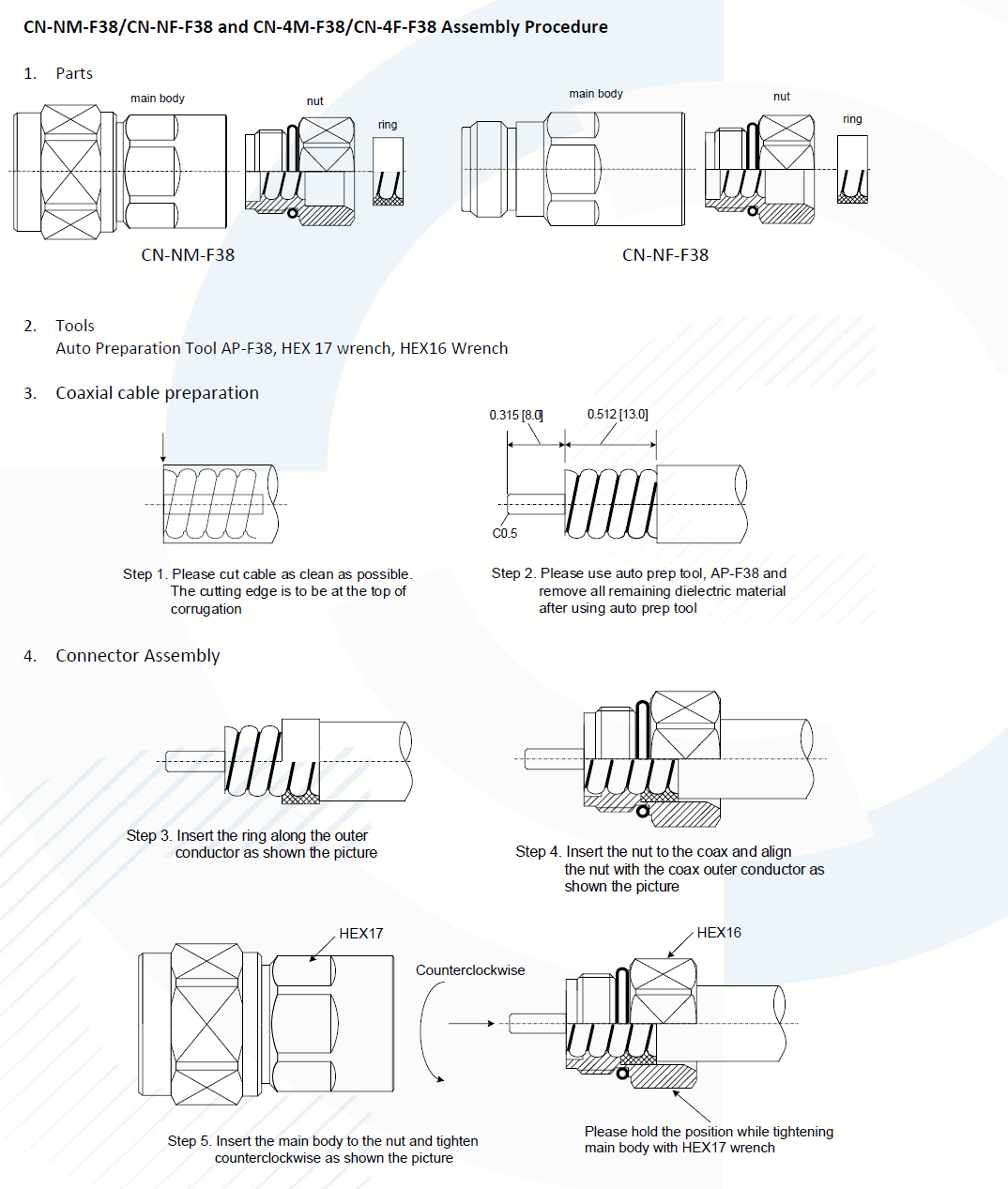

Installation Instructions:
| ||
