Outline Drawing:

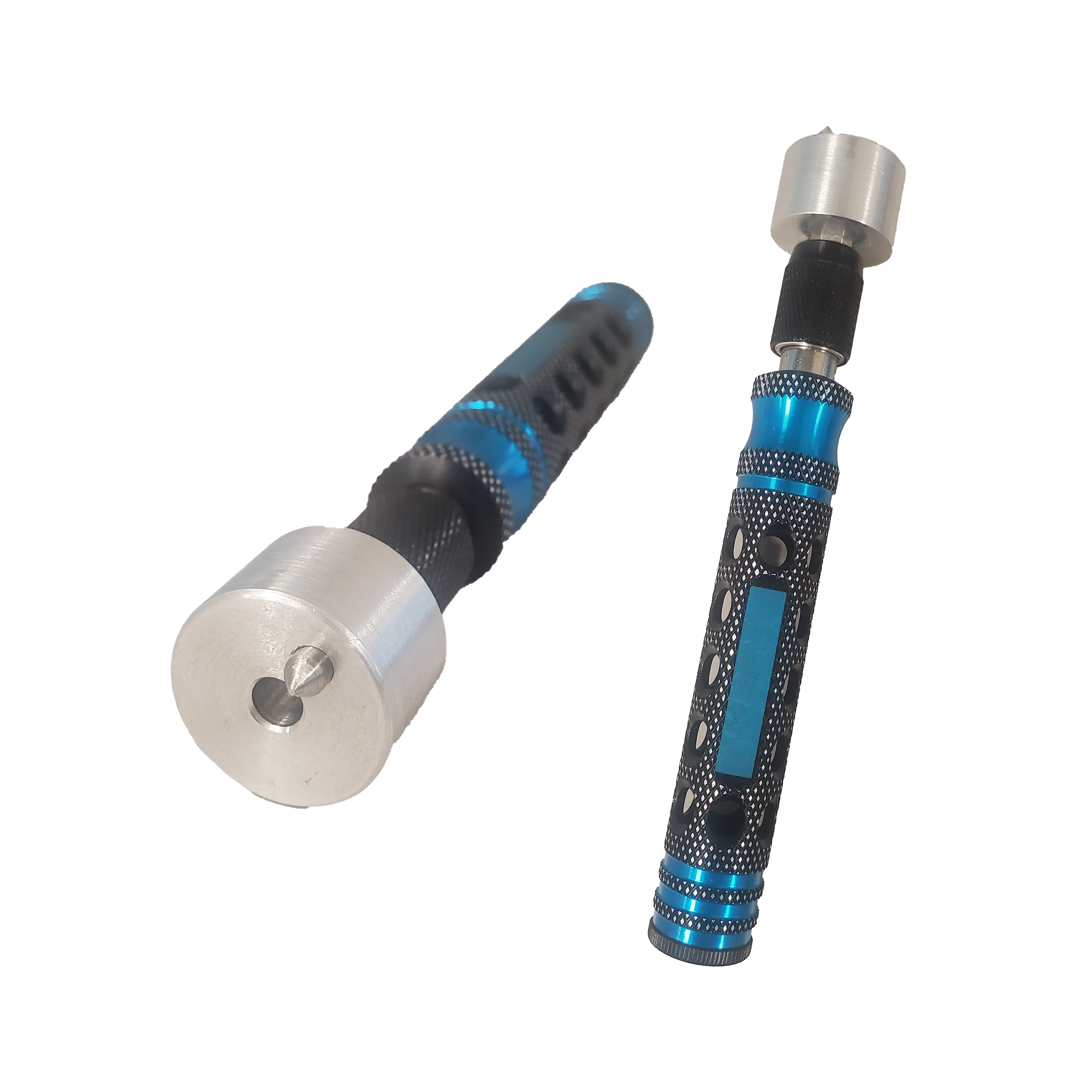

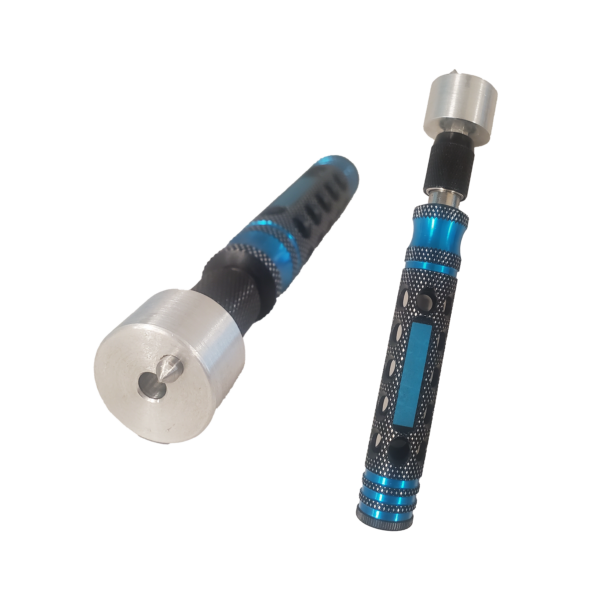

FL-F12 Operation instruction for ½” Coaxial cable

1. Gently insert the 1/2” coaxial cable into the flaring tool after assembling the nut.

2. Smoothly rotate the tool to flare the outer conductor and shape the dielectric/insulator.

3. After flaring, the outer conductor will be smooth and widened, providing better space for final connector assembly
with the main body.
4. Tighten the connector main body onto the nut to complete the installation.

5. For detailed installation instructions, please refer to the AP-F12 Auto Preparation Tool Datasheet.
