FO-SCASCA6F-A
FO-SCASCA10F-A

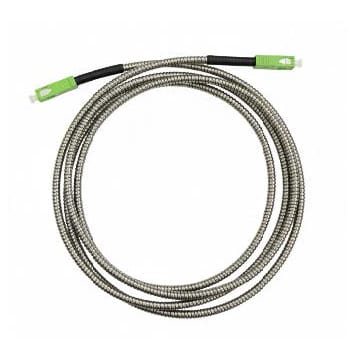

Steal Armored Fiber Optic Patch Cable, SC/APC
• Pre-terminated Cable allows for implementing Plug and Play Solutions
• Provides an additional layer of protection through a flexible spiral steel armor and durable outer jackets, ensuring reliability in harsh industrial environments
Description
Electrical Specifications:
| Product Model | FO-SCASCA6F-A | FO-SCASCA10F-A |
| Fiber Cable Length (ft) | 6 | 10 |
| Connector type | SC | |
| Polishing | APC | |
| Connector Flame Rating | UL-94-V0 | |
| Insertion Loss (dB) | ≤ 0.3 | |
| Return Loss (dB) | ≥ 50 | |
| Fiber Category | Single Mode G657A2 | |
| Tight Buffer Material | PVC | |
| Tight Buffer Diameter (mm) | 0.9 ± 0.05 | |
| Fiber Material | Aramid Yarn | |
| Jaket | LSZH | |
| Armored Tube | 304 Stainless Steel | |
| Cable Diameter (mm) | 5.0 ± 0.2 | |
| Tensile Strength | – Length of the cable under tension: ≥50m. – Tensile load and duration: long term tensile force: 800N for 1min – With the long-term tensile force, fiber additional attenuation absolute value should be ≤0.03dB/km, no pre-tension to the cable allowed | |
| Crush Resistance | Refer to IEC 60794-1-2 E3, short-term: 2000N/100mm, long-term: 4000N/100mm, interval≥ 500mm, time of duration 60s, 3 Times, No visual damage to Sheath | |
Mechanical Specifications:
Shipping Dimension (in/mm) | 5.5 x4.9×1.4 / 140x125x35 |
| Shipping Weight (lb./kg) | 0.4 / 0.17 |
| Cable Length (ft.mm) | 6ft and 10ft. Can be customized |
| Bending Radius | Less than 20 times the diameter of the cable |
Environment & Compliance:
| Application | Outdoor / Indoor |
| Storage Temperature | -55°C to +85°C |
| Operating Temperature | 40°C to +85°C |
| Installation Temperature | 5 to 90% |

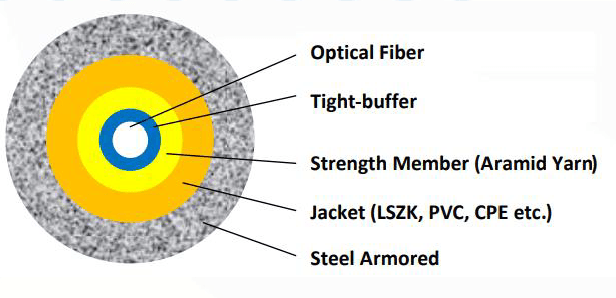

Outline Drawing:
| ||
| Datasheet: FO-SCASCAxxF-A DC 1-0-1 2025_1013 |
