HC-H4AI

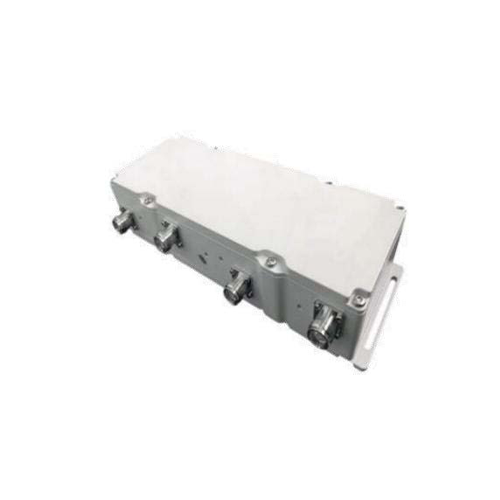

Wideband Hybrid Coupler, Low PIM(-161dBc), 4×4 Hybrid, 617-4200MHz, 4.3-10 Female
Features:
• Wideband design covering 617-4200MHz
– 4G & 5G NR network, supporting C-band N77, N78
• Connects 4 inputs to 4 outputs
• Suitable for indoor/outdoor environment
• High Reliability and Low Insertion Loss
Description
Electrical Specifications:
| Product Model | HC-H1AI |
| Frequency (MHz) | 617-4200 |
| Coupling Value (dB) | 6.0 ± 0.9 |
| Insertion Loss (dB) | 0.8 ± 0.1 |
| VSWR | ≤ 1.25 |
| Isolation (dB) | ≥ 20 |
| PIM (dBc) | < -161 @ 2 x 43dBm |
| Average Power, max (W) | 300 |
| Peak Power, max (W) | 1000 |
| Impedance (ohm) | 50 |
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | 8.64x4.09x2.18 / 219.4x104.0x55.4 |
| Weight (lb/kg) | 4.85 / 2.2 |
| Shipping Dimension (in/mm) | 9.84x7.09x3.94 / 250.0x180.0x100.0 |
| Shipping Weight (lb./kg) | 5.51 / 2.5 |
| Connector Type | 4.3-10 Female |
Environmental Specifications:
| Application | Outdoor / Indoor |
| Operating Temperature | -35°C to +85°C |
| Environment | IP65 |
| Relative Humidity | 5-95% |
| RoHS | Compliant |

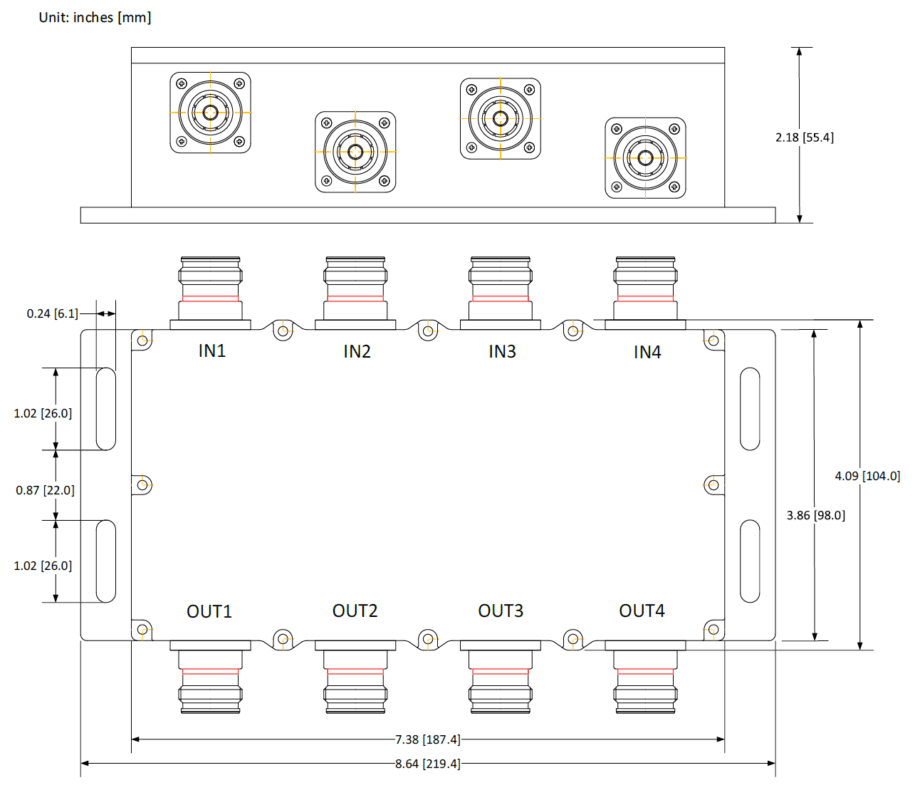

Outline Drawing:
| ||
Datasheet: HC-H4AI DS 1-0-1_2025_0424 |
