HC-H4AX



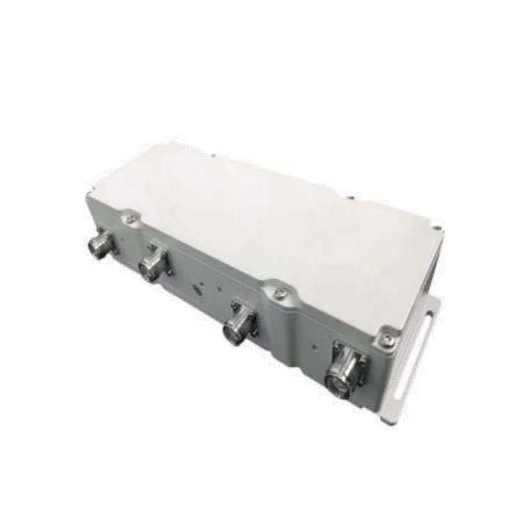

Hybrid 4×4, 617-4200MHz, 4.3-10 Female, Low PIM



Features:

• Wideband design covering 617-4200MHz -4G & 5G NR network, supporting C-band N77, N78

• Connects 2 inputs to 1 outputs

• Suitable for indoor/outdoor environment

• High reliability and low insertion loss

Description

Electrical Specifications:



 Product ModelHC-H1AX
 Frequency (MHz)617-4200
 Coupling Tolerance (dB)3.1 ± 1.2
 VSWR @ all ports≤ 1.3
 Isolation (dB)≥ 23
 PIM (dBc)< -155 @ 2 x 43dBm
 Average Power, max (W)300
 Peak Power, max (W)1000
 Impedance (ohm)50



 Mechanical Specifications:



 Dimension Diameter, Height (in/mm)

11.18x9.53x3.31 / 242.0x200.0x84.0

 Weight (lb/kg) 10.1 / 4.6
 Connector Type3 x 4.3-10 Female



Environmental Specifications:



 Application                                      Outdoor / Indoor
 Operating Temperature                                       -40°C to +85°C
 Environment                                              IP65
 Relative Humidity                                         Up to 5-95%
 RoHS                                          Compliant


Outline Drawing:





Datasheet:

HC-H4AX DS 1-0-0_2022_1025
