IXL-EYN-H3P
VHF Low-Profile, 134-176/340-570/617-960MHz, N-Female, UL-94-V0 rated
Features:
• VHF omni-Antenna covering 134-176/ 340-570/ 617-960MHz (VHF/UHF/700/800 Public Safety)
• Low-profile and suitable for indoor application
• Camouflaged Ceiling Mounting antenna designed, 22”x22” suitable for standard ceilings
Description
Electrical Specifications:
| Product Model | IXL-EYN-H3P | ||
| Frequency (MHz) | 134-176 | 340-570 | 617-960 |
| Gain (dBi) | 1.9 | 2.7 | 2.1 |
| Polarization | Horizontal | ||
| Beamwidth Horizontal (°) | 360 | ||
| VSWR. Typical | 2.2 | 1.8 | 1.5 |
| Average Power, max (W) | 50 | ||
| Impedance (ohm) | 50 | ||
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | 22.0x22.0x0.06 / 559.0x559.0x1.5 |
| Weight | 2.5 / 1.1 |
| Shipping Dimension(in/mm) | 24.0x24.0x2.0 / 610.0x610.0x50.0 |
| Shipping Weight(lb/kg) | 4.0 / 1.8 |
| Material & color | White |
| Mounting | Ceil Mount, N-female, Plenum Rated cable, 1 foot long Option: High Ceiling or Junction Box installation (MT-ND-EY) |
| Connector Type | N-Female |
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -55°C to +70°C |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
| Environment | IP-54* |
*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated.”
*Note: Not recommended for use with metal J boxes directly. Plastic or fiberglass J boxes are acceptable.
*Note: For metal J box installation, recommended to install the antenna with MT-ND-EY as spacer.
Antenna Pattern:
|

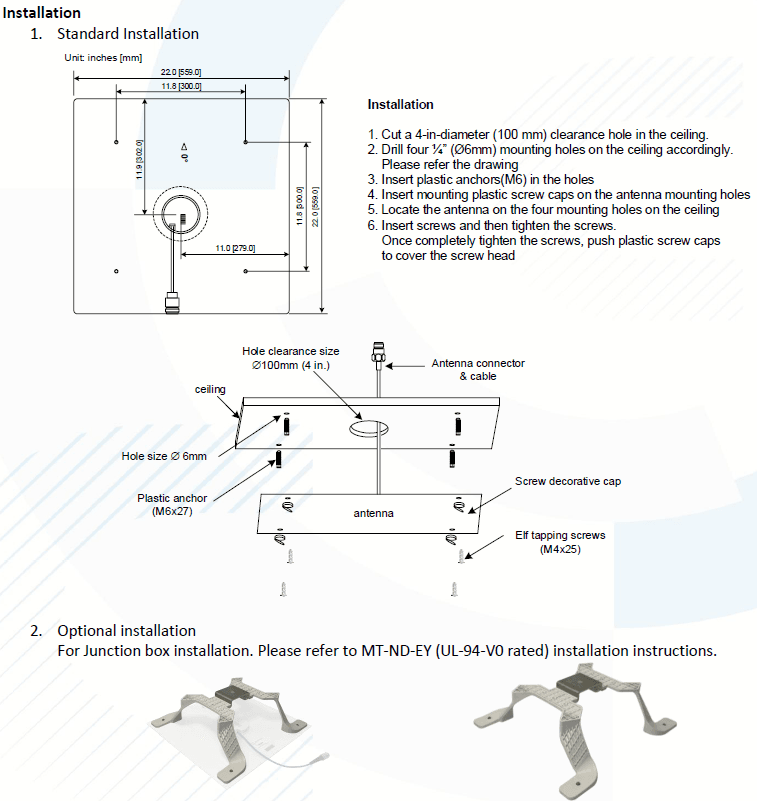

Outline Drawing:
| ||
Datasheet: IXL-EYN-H3P DS 1-0-1_2025_0303
|
