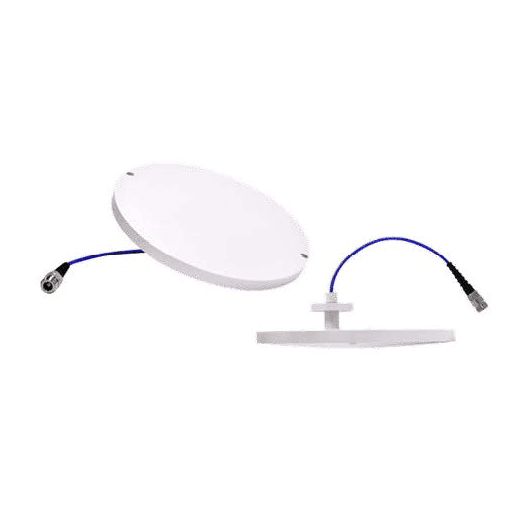

IXL-MJN-H4U

698-2700MHz, N-Female



Features:

• Omni antenna wideband covering 698-2700MHz

   (700/800 Public Safety Band, 2G/3G/4G Network)

• Low Profile and suitable for Indoor application

• Compact ceiling mount and cost-effective design

• Supporting flammability UL-94-V0 rating

Description

Electrical Specifications:



Product ModelIXL-MJN-H4U
 Frequency (MHz) 380-520 698-960 1695-2700
 Gain (dBi)2.0 ± 1.0 3.5 ± 1.0 4.5 + 1.0
 PolarizationHorizontal
 Beamwidth Horizontal (°)360
 VSWR≤ 1.5 ≤ 1.5 ≤ 1.5
 PIM (dBc)< -153 @ 2 x 43 dBm
 Average Power, max (W)50
 Impedance (ohm)50



Mechanical Specifications:



 Dimension Diameter, Height (in/mm)

 ∅ 8.7 x 0.7  / ∅ 220 x 18

 Weight (lb./kg) 0.7 / 0.3
 Shipping Dimension(in/mm) 8.9 x 8.7x 3.6 / 225 x 220 x 90
  1.1 / 0.5
 Radome Material & Color ABS, White, RAL9003
 Mounting Ceiling Mount
 Flammability UL-94-V0
 Mounting/Connector type

 Ceil Mount, N-female

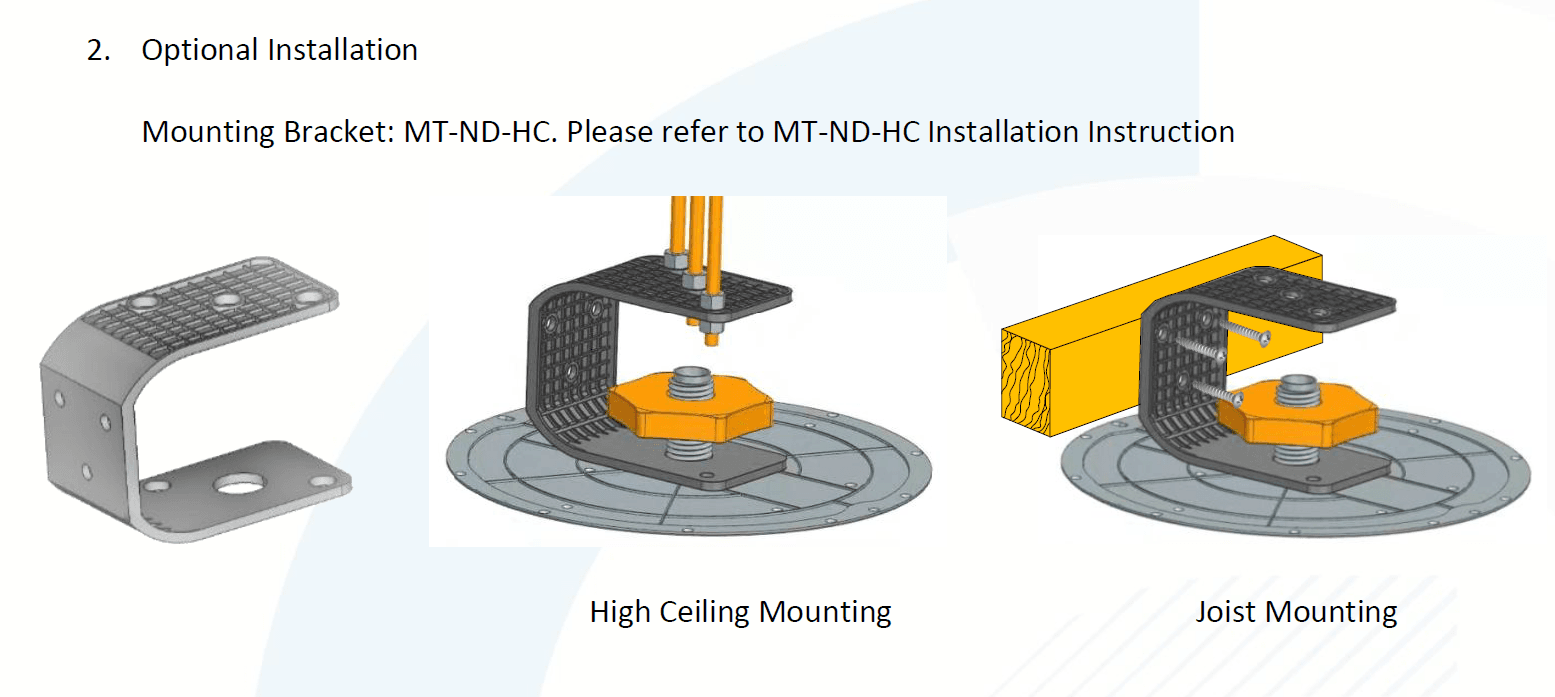

 Option: High Ceiling or Joist mount bracket (MT-ND-HC)

*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated”.

*Note: Not recommended for use with metal J boxes. Plastic or fiberglass J boxes are acceptable.



Environmental Specifications:



 ApplicationIndoor
 Operating Temperature-40°C to +70°C
 RoHSCompliant
 HumidityUp to 95%
 EnvironmentIP54*

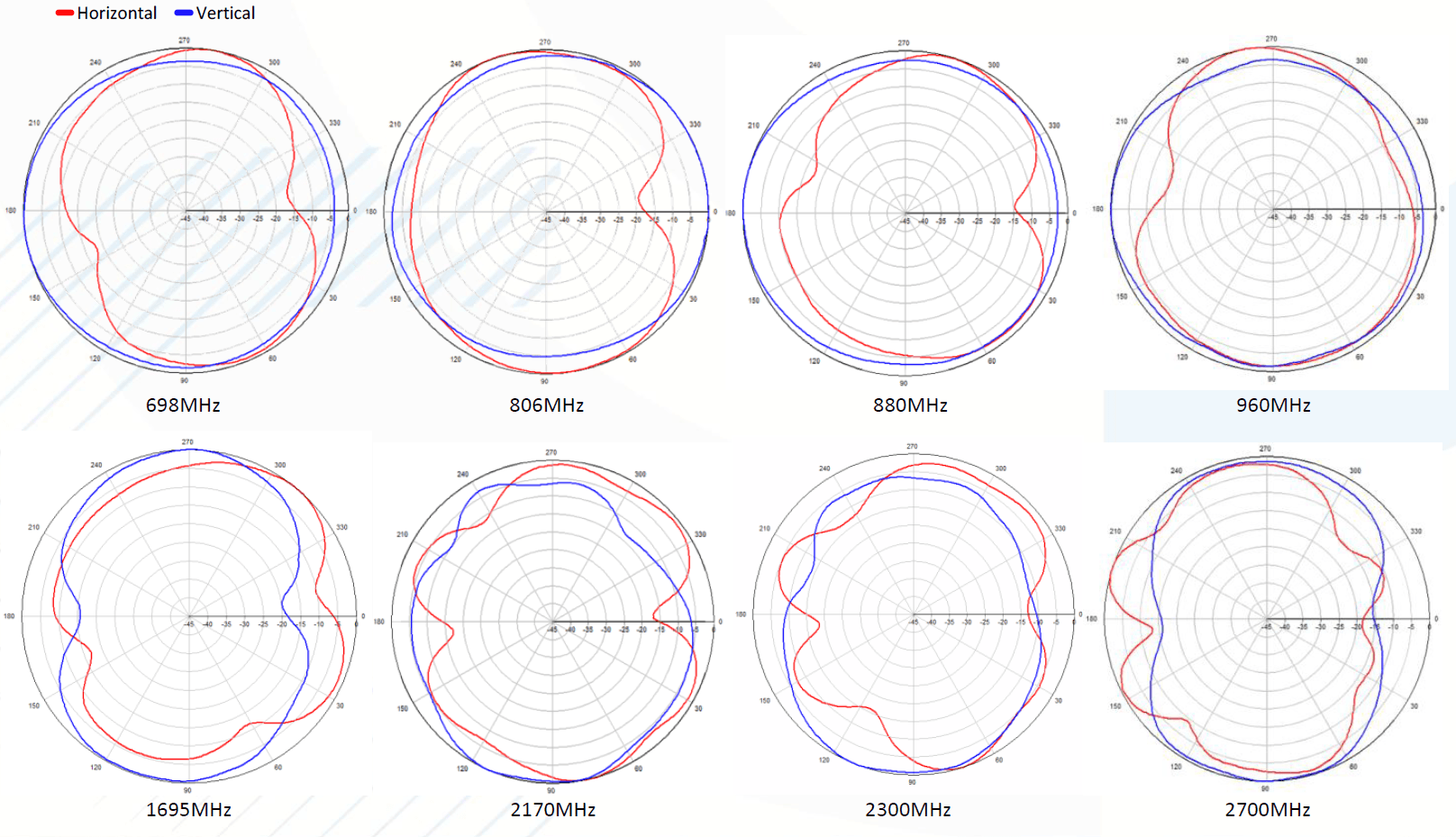

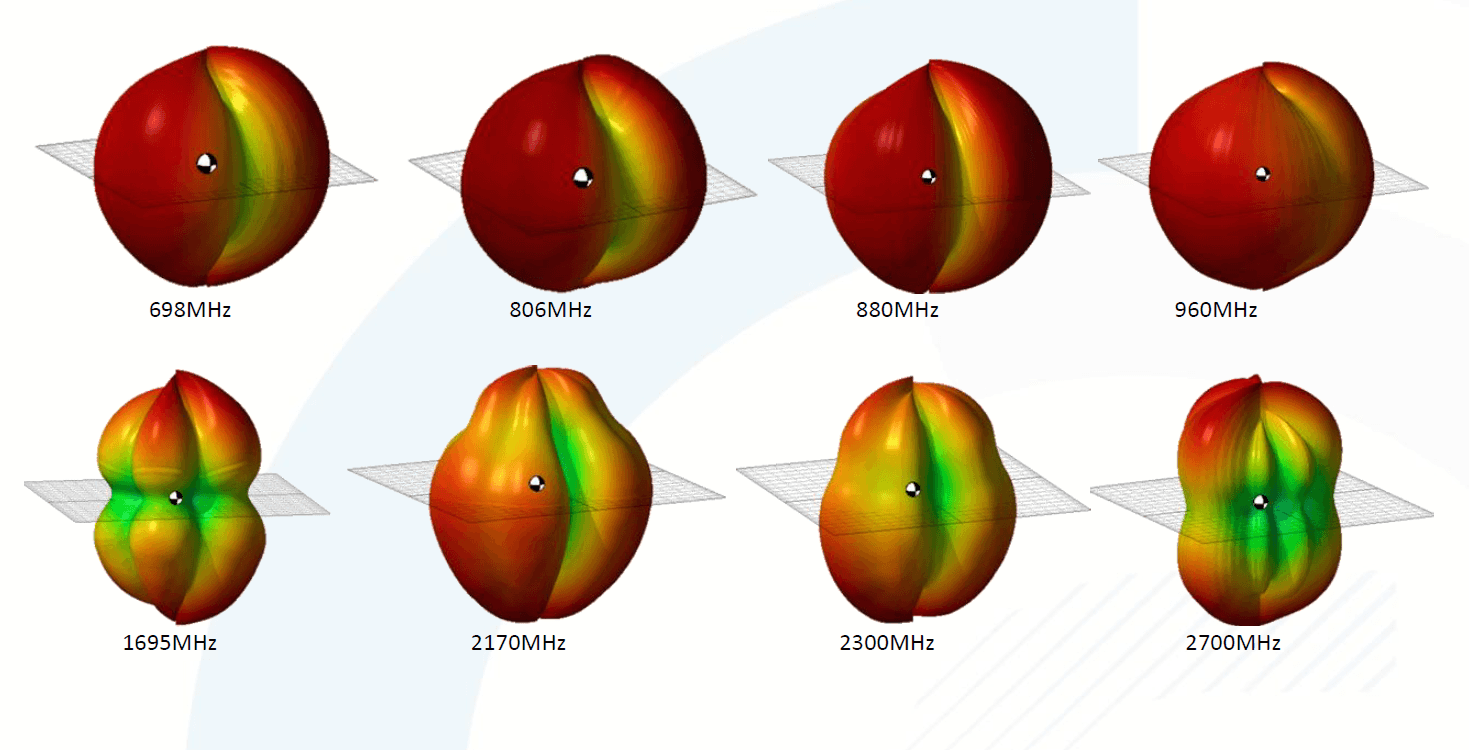

Antenna Pattern:

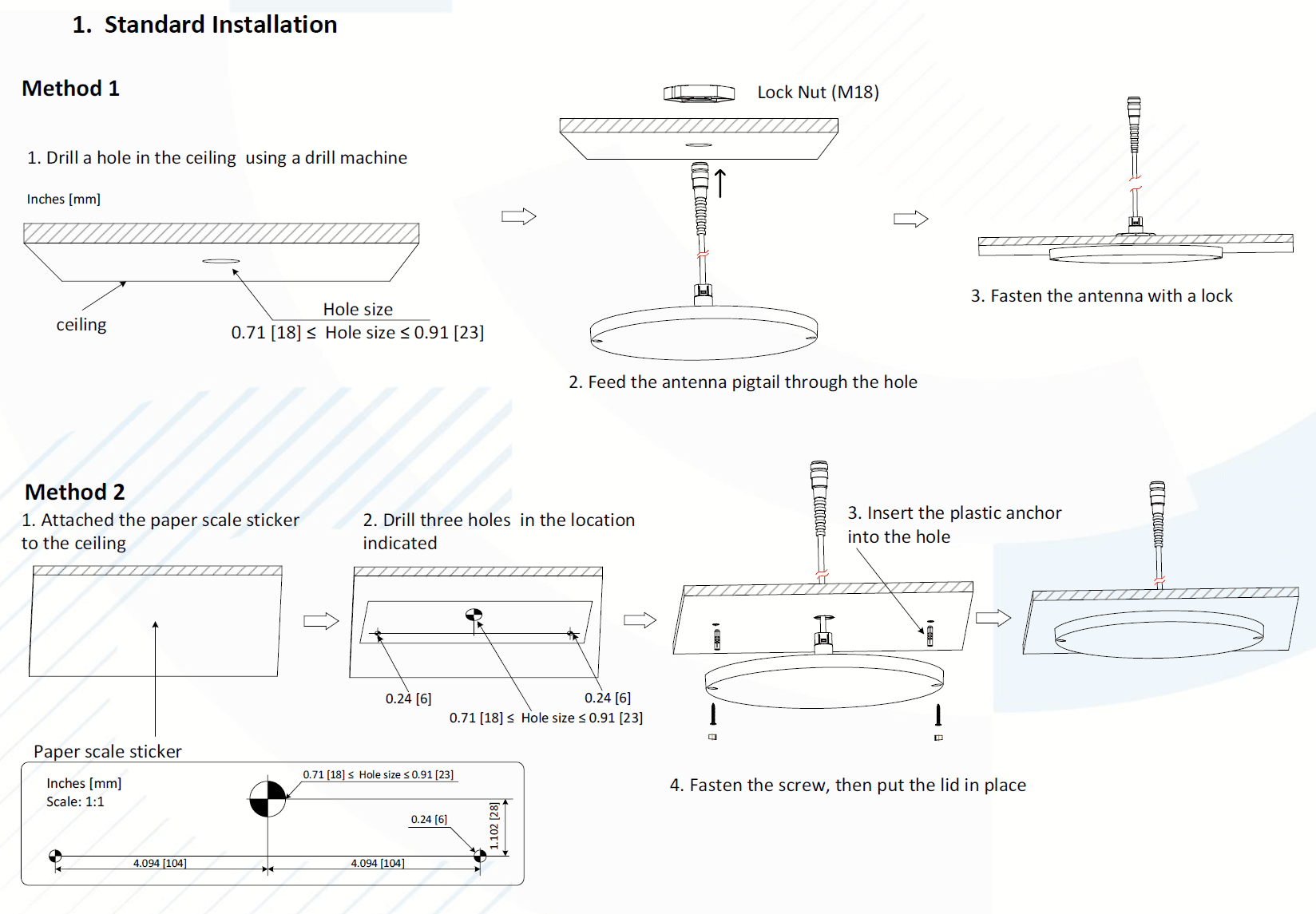

Outline Drawing:





Datasheet:

IXL-MJN-H4U Datasheet
