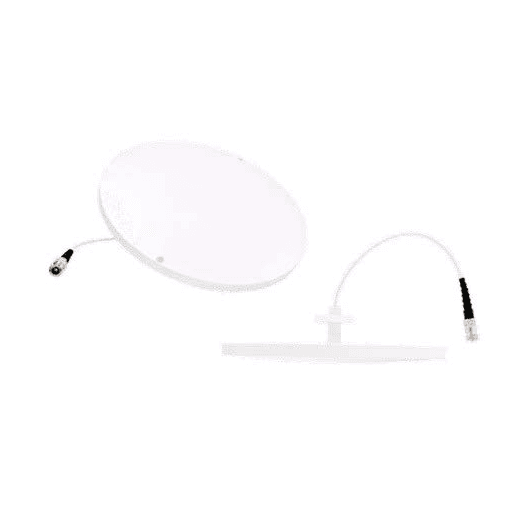

IXL-SQA-H6U / IXL-SQN-H6U

617-6000MHz, 4.3-10 Female, N-female, Low Profile



Features:

• Omni antenna wideband covering 617-6000MHz

    (700/800 Public Safety, 2G/3G/4G, CBRS, C-band, 5G Sub-6GHz)

• Low Profile and suitable for indoor application

• Compact ceiling mount and cost-effective design

Description

Electrical Specifications:



Product ModelIXL-SQA-H6U / IXL-SQN-H6U
 Frequency (MHz) 617 - 806 806 - 9601690 - 27003300 - 4200 4900 - 6000
 Gain (dBi)1.5 ± 0.52.2 ± 0.54.5 ± 1.06.0 ± 1.0±6.0 ± 1.0
olarizationHorizontal
 Beamwidth Horizontal (°)360
 VSWR≤ 1.8≤ 1.8≤ 1.8≤ 1.8 ≤ 1.8
 PIM (dBc)  ≤ -153dBc @2 x 43dBm
 Average Power, max (W)50
 Impedance (ohm)50



Mechanical Specifications:



 Dimension Diameter, Height (in/mm)

 ∅ 8.7 x 0.7  / ∅ 220 x 18

 Weight (lb/kg) 0.7 / 0.43
 Shipping Dimension(in/mm) 8.9x8.7x3.6 / 225x220x90
 Shipping Weight(lb./kg) 1.1/ 0.5
 Radome Material & Color ABS, White, RAL9003
 Mounting Ceiling Mount
 Mounting/Connector type

 Ceil Mount

 IXL-SQA-H6U; 4.3-10 Female, IXL-SQN-H6U; N-Female



*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated”.

*Note: Not recommended for use with metal J boxes. Plastic or fiberglass J boxes are acceptable.



Environmental Specifications:



 ApplicationIndoor
 Operating Temperature-40°C to +70°C
 RoHSCompliant
 HumidityUp to 95%
 EnvironmentIP54*

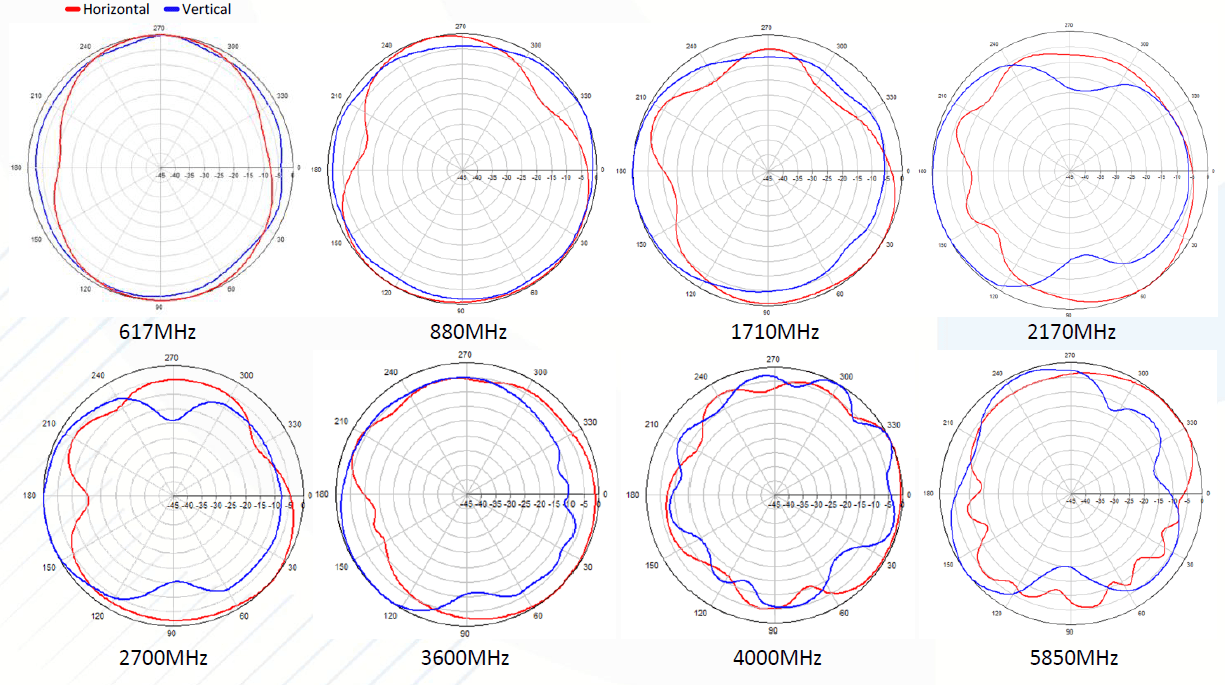

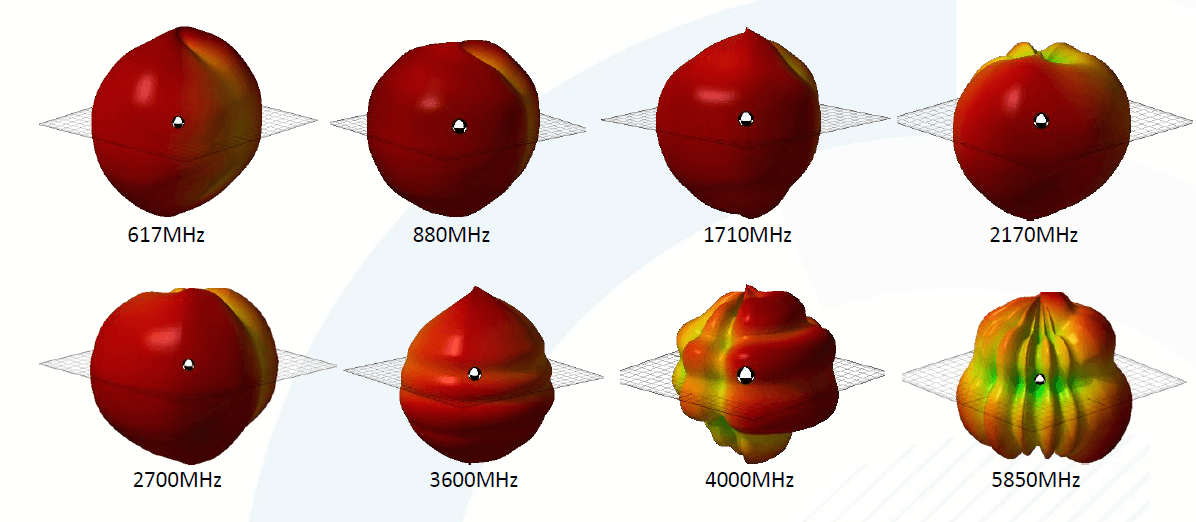

Antenna Pattern:

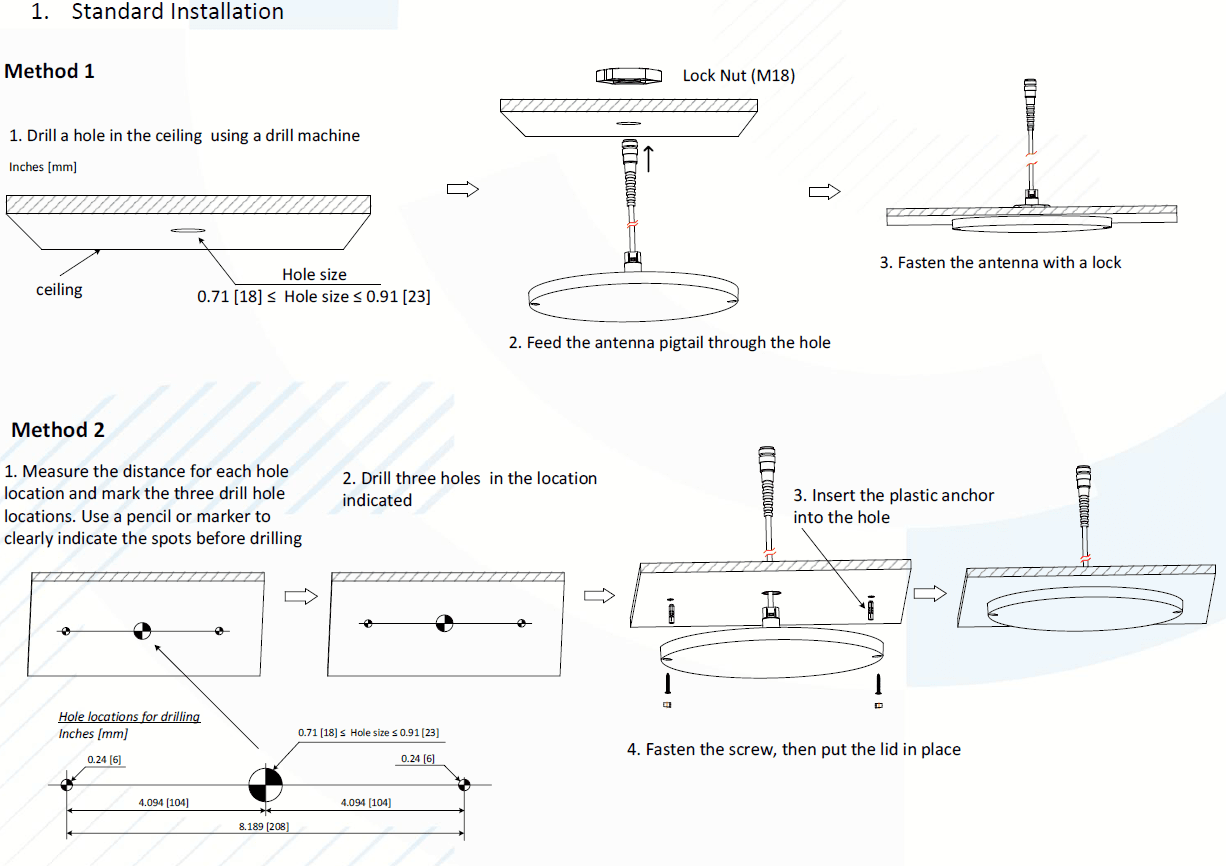

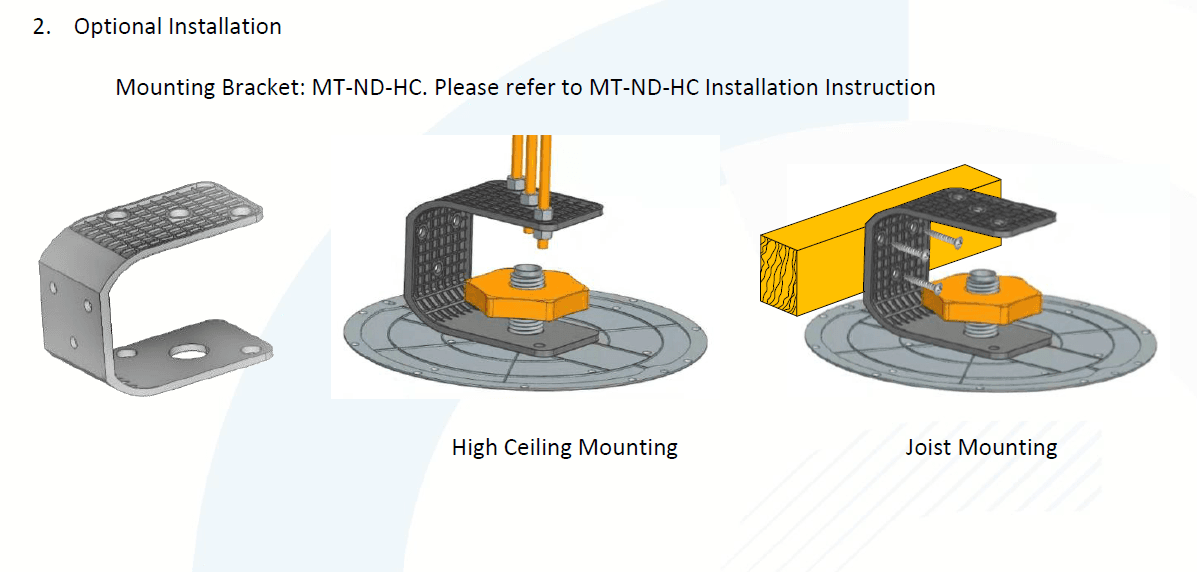

Outline Drawing:





Datasheet:

IXL-SQA-H6U / IXL-SQN-H6U
