CM-IY2-OAI
Outdoor Diplexer, PIM Rated
617-2200MHz/2305-2690 & 3300-4200MHz, Low PIM -161dBc, 4.3-10 Female
Features:
• Band 1: 617-2200MHz, Band 2: 2305-2690 & 3300-4200MHz
• Co-siting purpose for feeder sharing.
• High Isolation and high-power handling
• High reliability and low insertion loss
Description
Electrical Specifications:
| Frequency (MHz) | 617-2200 | 2305-2690 & 3300-4200 |
| Insertion Loss (dB) | ≤ 0.70 | |
| Isolation Between Ports (dB) | ≥ 50 | |
| Return Loss (dB) | ≥ 17, typical 20 | |
| PIM (dBc) | ≤ -161 @ 2x43dBm | |
| Average Power, max (W) | 200@ port 617-200MHz, 100@2305-2690 & 3300-4200MHz | |
| Impedance (ohm) | 50 | |
Mechanical Specifications:
Dimension (in/mm) | 7.3x5.7x1.6 / 185.0x145.0x40.0 |
| Weight (lb./kg) | 4.1 / 1.85 |
| Shipping Dimension (in/mm) | 11.0x6.3x3.4 / 280.0x160.0x85.0 |
| Shipping Weight (lb./kg) | 4.3 / 1.95 |
| Connector Type | 4.3-10 Female |
Environmental Specifications:
| Application | Outdoor / Indoor |
| Operating Temperature | -40°C to +85°C |
| Environment | IP67 |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |

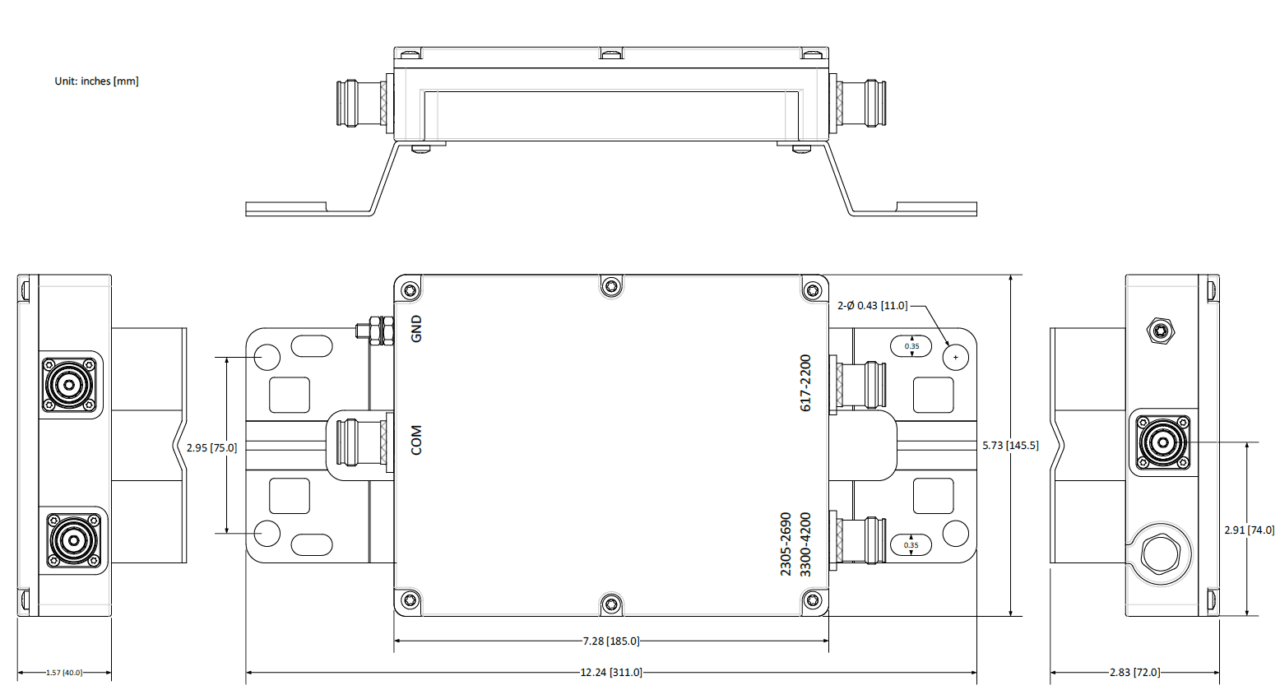

Outline Drawing:
CM-IY2-OAI | ||
| ||
Datasheet: CM-IY2-OAI DS 1-0-0_2024_1119 |
