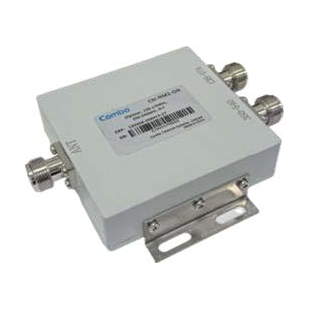

CM-NM2-ON
Outdoor Dual Band Combiner, VHF/UHF
138-174MHz/350-540MHz, N-type Female, V HF/UHF Public Safety Band
Features:
• Band1: 138-174MHz, Band2: 350-540MHz
• High Isolation and high-power handling
• High reliability and low insertion loss
Description
Electrical Specifications:
| Frequency (MHz) | 138-174 | 350-540 |
| Insertion Loss (dB) | ≤ 0.50 | |
| Pass Band Ripple (dB) | ≤ 0.40 | |
| Return Loss (dB) | ≥ 17. typical 20 | |
| Isolation Between Ports (dB) | ≥ 50 | |
| Average Power, max (W) | 50 | |
| Impedance (ohm) | 50 | |
Mechanical Specifications:
Dimension (in/mm) | 3.48x3.35x0.95 / 88.5x85.0x24.0 |
| Weight (lb./kg) | 1.0 / 0.45 |
| Shipping Dimension (in/mm) | 6.3x5.1x1.6 / 160x130x40 |
| Shipping Weight (lb./kg) | 1.2 / 0.55 |
| Connector Type | N-type Female |
Environmental Specifications:
| Application | Outdoor / Indoor |
| Operating Temperature | -40°C to +85°C |
| Environment | IP67 |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |

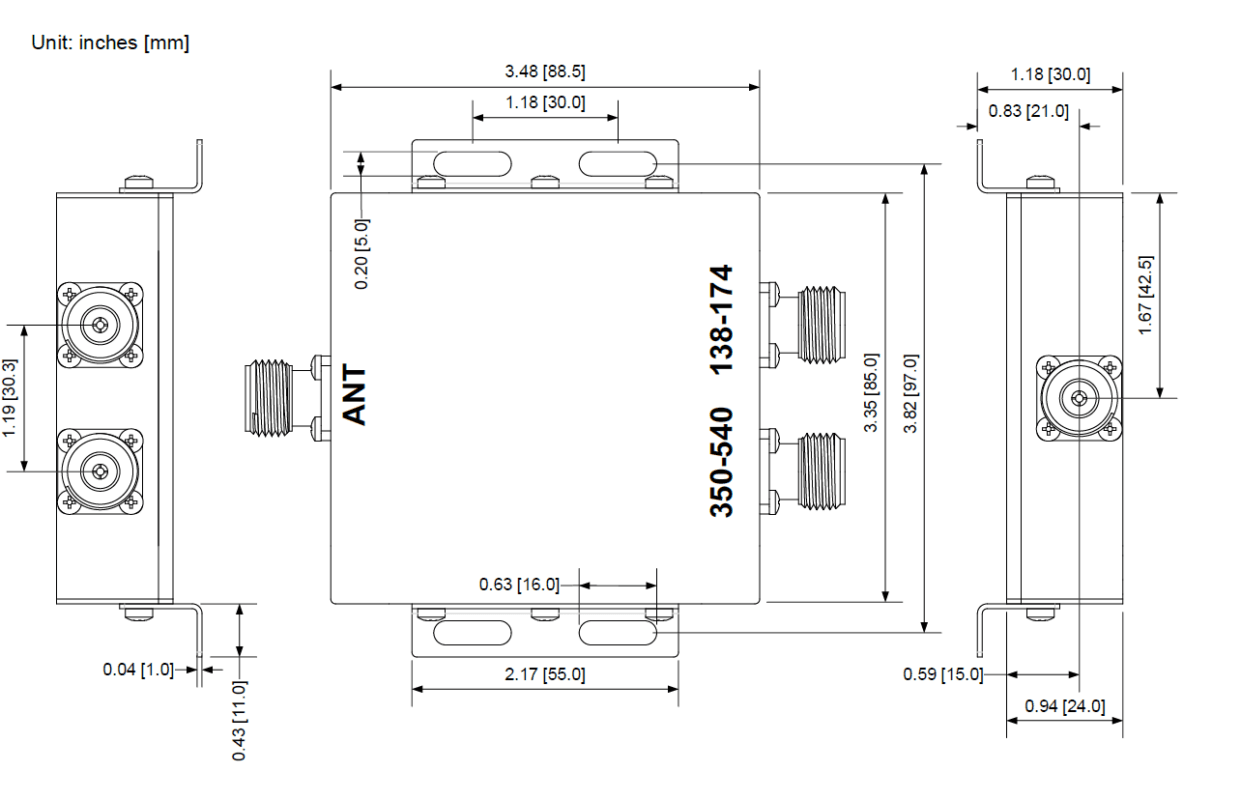

Outline Drawing:
| ||
| ||
Datasheet: CM-NM2-ON DS 1-0-0_2025_0303 |
