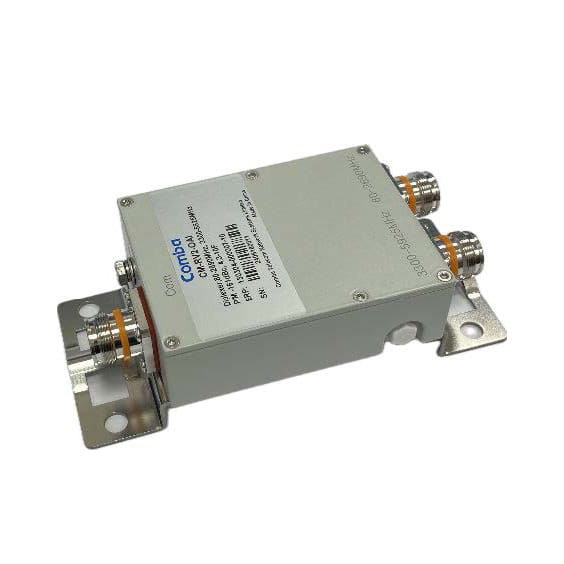

CM-RV2-OAI
Outdoor Diplexer, PIM Rated
80-2690MHz/3300-5925MHz, Low PIM -161dBc, 4.3-10 Female
Features:
• Band1:80-2690MHz, Band2:3300-5925MHz
• High isolation between two bands
• High reliability and low insertion loss
• High Power Handling capability up to 150W
Description
Electrical Specifications:
| Frequency (MHz) | 80-2690 | 3300-5925 |
| Insertion Loss (dB) | ≤ 0.3 | |
| Isolation Between Ports (dB) | ≥ 50 | |
| Return Loss (dB) | ≥ 18, typical 20 | |
| PIM (dBc) | ≤ -161 @ 2x43dBm | |
| Average Power, max (W) | 150 | |
| Impedance (ohm) | 50 | |
Mechanical Specifications:
Dimension (in/mm) | 4.29x3.23x1.38 / 109.0x82.0x35.0 |
| Weight (lb./kg) | 1.87 / 0.85 |
| Shipping Dimension (in/mm) | 8.66x4.92x4.13 / 220.0x125.0x105.0 |
| Shipping Weight (lb./kg) | 2.4 / 1.09 |
| Connector Type | 4.3-10 Female |
Environmental Specifications:
| Application | Outdoor / Indoor |
| Operating Temperature | -40°C to +85°C |
| Environment | IP67 |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
Outline Drawing:
| ||
| ||
Datasheet: CM-RV2-OAI Datasheet |
