OLP-065V10NMJ50

Low PIM (-153dBc), 698-2700MHz, N-Female



Features:

• Wideband design covering 698-2700MHz

 (700/800 Public Safety Band, 2G/3G/4G Network)

• Suitable for outdoor applications

• Narrow beamforming donor antenna

• Compact and cost effective design

Description

Electrical Specifications:

 Frequency (MHz) 698-9601695-2700
 Gain (dBi)9.5 ± 0.510.5 ± 0.5
 PolarizationVertical
 Beamwidth Horizontal (°)

65 ± 15

58 ± 10

 Beamwidth Vertical(°)60 ± 1555± 10
 VSWR≤ 1.8≤ 1.5
 PIM (dBc)< -153 @ 2 x 43dBm
 Average Power, max (W)50
 Impedance (ohm)50



Mechanical Specifications:



 Dimension Diameter, Height (in/mm)

 33.5 x 7.5 x 2.0 / 850 x 190 x 50

 Weight w/p mounting kit (lb/kg) 1.4 / 0.65
 Radome Material & Color ABS, White
 Diameter of the mounting pole (in/mm) ∅1.38  - ∅1.97  / ∅35 - ∅50

 Connector Type

 N-Female



Environmental Specifications:



Application Indoor
 Operating Temperature -35°C to +85°C
 RoHS Compliant


Antenna Pattern:

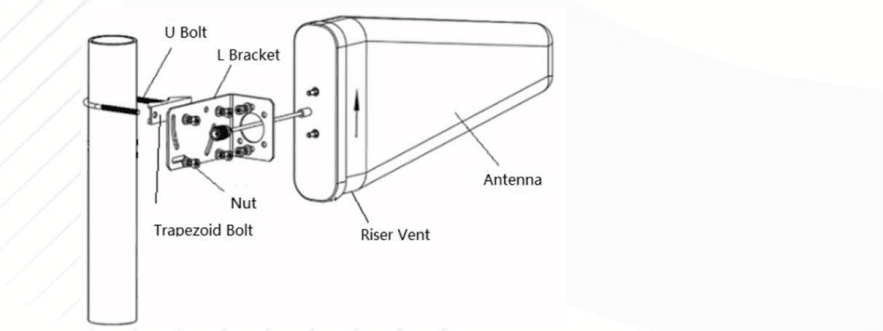

Outline Drawing:





Datasheet:

OLP-065V10NMJ50-ND DS 1-0-3_2020_0817 (003)
