PSR-EH2AI / PSR-EH2NI
Wideband Reactive Power Splitter
Low PIM (-161dBc), 138-4200MHz, 4.3-10 Female & N-Female, 300W
Features:
• Wideband operation (138–4200MHz) supporting Public Safety and C-Band application
• 2-way Reactive Power Splitter
• Rugged design for indoor and outdoor environments
• High reliability with low insertion loss
Description
Electrical Specifications:
| Product Model | PSWR-EH2AI | PSR-EH2NI |
| 2-Way, 4.3-10 Type | 2-Way, N-type | |
| Frequency (MHz) | 138-4200 | |
| Split Loss (dB) | 3.0 | |
| Insertion Loss (dB) | ≤ 0.4 @138-960MHz, ≤ 0.8 @960-2700MHz, ≤ 1.3 @2700-4200MHz | |
| VSWR @ all port | ≤ 1.5@138-175, ≤ 1.25@175-520MHz, ≤ 1.35@520-4200MHz | |
| PIM (dBc) | ≤ -161 @ 2 x 43dBm | |
| Average Power, max (W) | 200 | |
| Peak Power, max (W) | 1000 | |
| Impedance (ohm) | 50 | |
Mechanical Specifications:

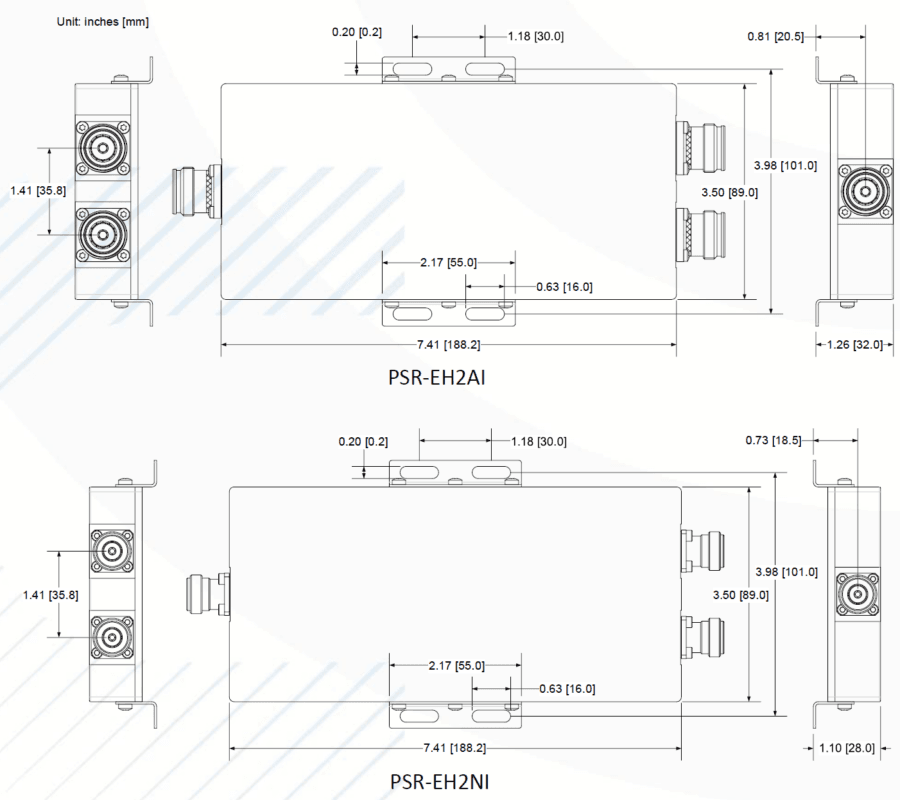

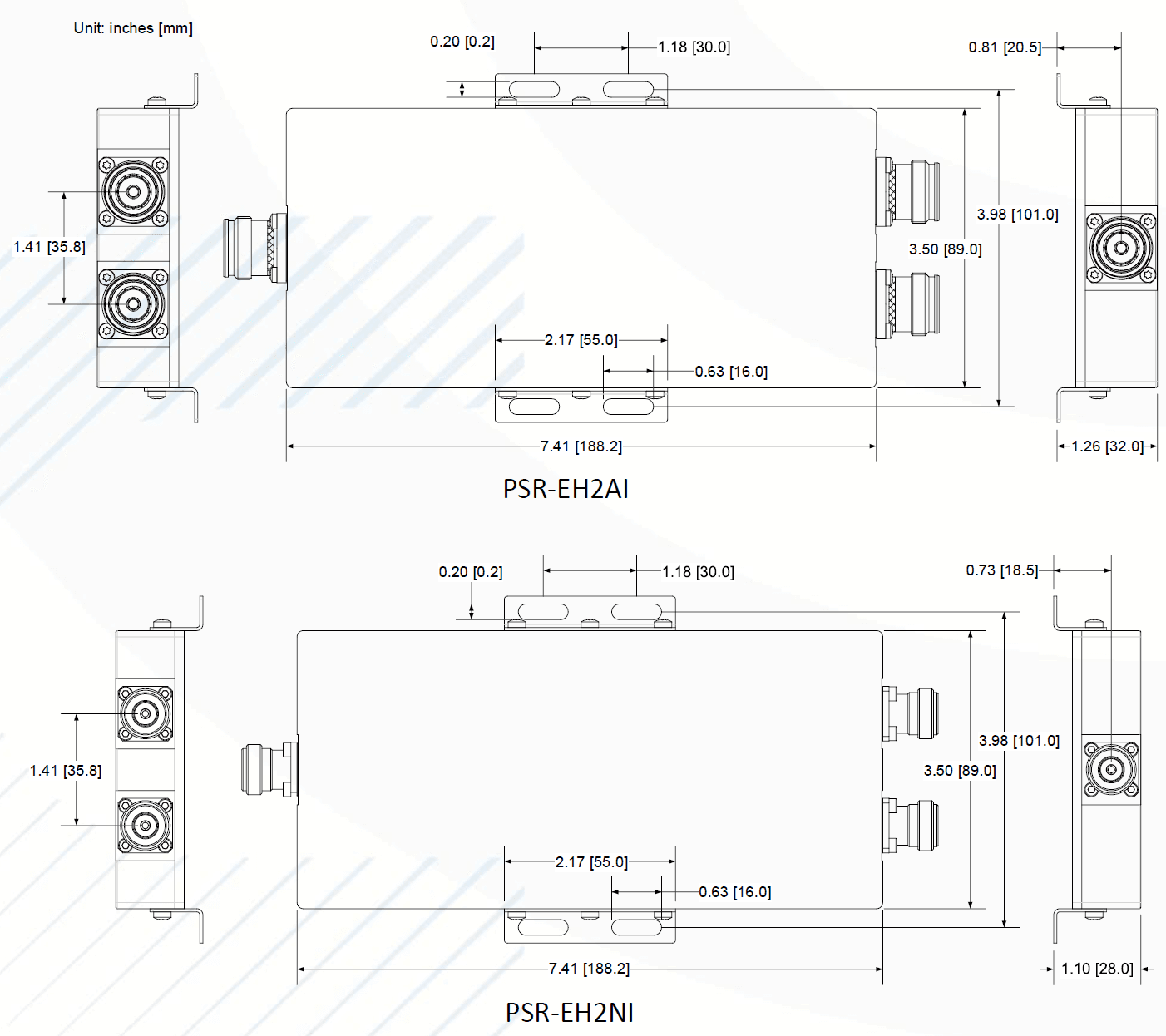

Dimension Diameter, Height (in/mm) | 7.4x3.5x1.0 / 188.2x89.0x26.0 |
Weight (lb/kg) | 2.1 / 0.95 |
Shipping Dimension(in/mm) | 9.7x5.3x1.5 / 245.0x135.0x38.0 |
Shipping Weight(lb./kg) | 2.2 / 0.99 |
Connector | PSR-EH2AI @ 4.3-10 Female |
Environmental Specifications:
| Application | Indoor / Outdoor |
| Operating Temperature | -30°C to +85°C |
| Environment | IP65 |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
