PSW-R2N / PSW-R3N / PSW-R4N
2/3/4Way, 698-2700MHz, N Female, 50W
Features:
• Wilkinson power splitter
• Wideband design covering 698-2700MHz
• Suitable for indoor/outdoor environment
• High reliability and low insertion loss
Description
Electrical Specifications:
| Product Model |
PSW-R2N |
PSW-R3N |
PSW-R4N |
| 2-Way | 3-Way | 4-Way | |
| Frequency (MHz) | 698-2700 | ||
| Split Loss (dB) | 3.0 | 4.8 | 6.0 |
| Insertion Loss (dB) | ≤ 0.4 | ≤ 0.6 | ≤ 0.7 |
| Isolation (dB) | ≥ 20 | ≥ 20 | ≥ 18 |
| VSWR @ all port | ≤ 1.2 | ≤ 1.25 | ≤ 1.3 |
| Average Power, max (W) | 50 | ||
| Impedance (ohm) | 50 | ||
Mechanical Specifications:
|
Dimension Diameter, Height (in/mm) PSW-R2N PSW-R3N PSW-R4N |
2.80x2.32x0.87 / 71.0x59.0x22.0 3.90x3.58x0.87 / 99.0x91.0x22.0 3.66x4.76x0.87 / 93.0x121.0x22.0 |
|
Weight (lb/kg) PSW-R2N PSW-R3N PSW-R4N |
0.55 / 0.25 1.12 / 0.51 1.32 / 0.60 |
|
Connector Type |
N Female |
Environmental Specifications:
| Application | Outdoor / Indoor |
| Operating Temperature | -25°C to +85°C |
| Environment | IP65 |
| Relative Humidity | Up to 100% |
| RoHS | Compliant |

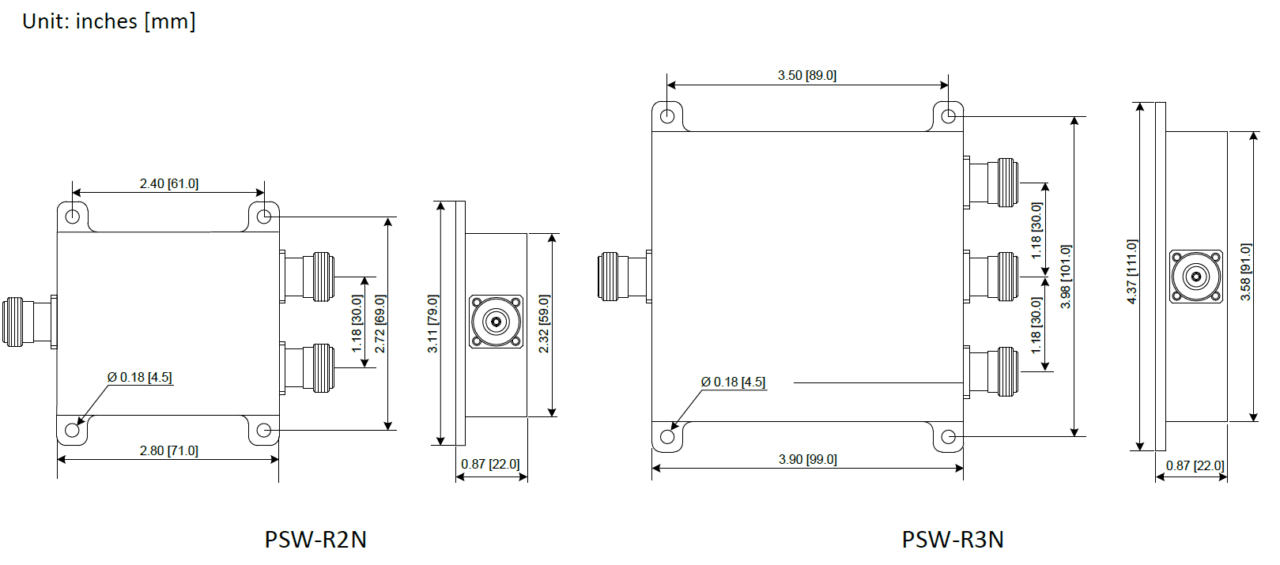

Outline Drawing:
| ||
Datasheet: |
