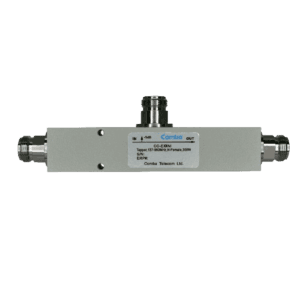

LD25H-NM
Low VSWR, up to 4GHz, N-type
• Wideband design covering DC-4GHz
– Public Safety Band (VHF, UHF & 700/800MHz)
– 4G LTE Network up to 4GHz
• Suitable for indoor/outdoor environment
Description
Electrical Specifications:
| Product Model | LD25H-NM |
| Frequency (MHz) | DC-4000 |
| VSWR @ all ports | ≤ 1.20 |
| Average Power, max (W) | 25 |
| Peak Power, max (W) | 1,000 |
| Impedance (ohm) | 50 |
*Note: Average Power rating is at +25°C and it can be derated over temperature.
Mechanical Specifications:
Dimensions (in/mm) | 3.74x1.77x1.77 / 95.0 x 45.0x 45.0 |
| Weight (lb/kg) | 0.55 / 0.25 |
Shipping Dimension (in/mm) | 5.91x2.28x2.05/ 150.0x58.0x52.0 |
Shipping Weight (lb/kg) | 0.62 / 0.28 |
Connector Type | N-male |
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -55°C to +100°C |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
Outline Drawing:
| ||
| ||
Datasheet: LD25H-NM DS 0-0-1_20210623 |
