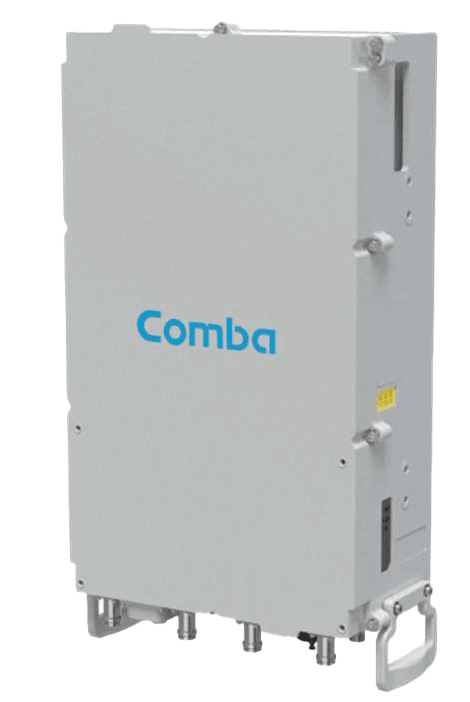

ComFlex NG Series High Power Remote Units
The ComFlex NG series Medium Power Remote Unit (HRU) is designed to bring improved signal quality in a compact efficient form factor. The HRU supports 4 independent bands, LTE 700MHz, CELL 850 MHz, PCS 1900MHz, EAWS. Supporting all FDD bands, offers an efficient solution to bring immediate coverage solution.
Features:
• 4 Independent FDD Bands
• 5G Ready Analog DAS
• Up to 16 HRU per Master Unit
• Support AC or DC
• Wall mounting
Description
Mechanical Specifications:
Dimensions H x W x D (approx.) | In.(mm) | 21.7’ x 12.6’ x 6.6’ (550x320x168) |
| Weight (approx.) | lbs.(KG) | 60 (27) |
| Packed Dimensions, H x W x D | In.(mm) | 30.5’ ×18.7’ ×13.4’ (775x475x340) |
| Packed Weight | lbs.(KG) | 54 |
| RF Connector | 4.3-10 Female | |
| Enclosure Cooling | Passive Cooling / External Fan, 2pcs | |
| Installation Type | Wall mounting |
Environmental:
Certifications:
UL Certification | UL 62368 |
FCC Certification | PX8CFNG-HRU (TBD) |
Part Numbers | Description |
|---|---|
HRU-7851719-AC | High Power Remote Unit -700/850/1900/2100 with AC PSU |
HRU-7851719-DC | High Power Remote Unit -700/850/1900/2100 with DC PSU |
Datasheet: ComFlex NG HRU-FDD DS 0-0-4
