IXL-EYN-H2P |
134-176/340-570/617-960MHz, N-Female
Features:
• VHF omni-Antenna covering 132-176/ 340-570/ 617-960MHz (VHF/UHF/700/800 Public Safety)
• Low-profile and suitable for indoor application
• Compact and cost-effective design
Description
Electrical Specifications:
| Product Model | IXL-EYN-H2P | ||||
| Frequency (MHz) | 134-176 | 340-570 | 617-960 | ||
| Gain (dBi) | -0.5 | 1.2 | 3.5 | ||
| Polarization | Horizontal | ||||
| Beamwidth Horizontal (°) | 360 | ||||
| VSWR | 1.8 | 1.8 | 1.8 | ||
| Average Power, max (W) | 50 | ||||
| Impedance (ohm) | 50 | ||||
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | 15.16 x 14.09 x 0.06 / 385.0 x 358.0 x 1.6 |
| Weight (lb./kg) | 1.17 / 0.53 |
| Shipping Dimension(in/mm) | 15.94 x 14.96 x 1.77 / 405.0 x 380.0 x 45.0 |
| Shipping Weight(lb./kg) | 1.81 / 0.82 |
| Radome Material & Color | White |
| Mounting/Connector Type | Ceiling Mount, N-female |
*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated”.
*Note: Not recommended for use with metal J boxes. Plastic or fiberglass J boxes are acceptable.
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -55°C to +70°C |
| RoHS | Compliant |
| Humidity | Up to 95% |
| Environment | IP54* |
Antenna Pattern:
|

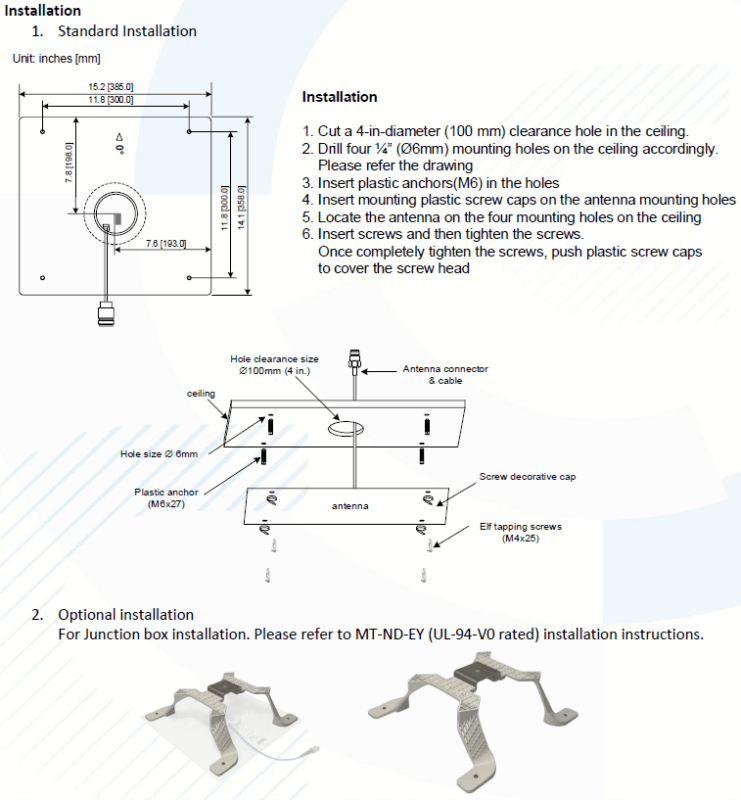

Outline Drawing:
| ||
Datasheet: IXL-EYN-H2P DS 1-0-5_2025_0917r |
