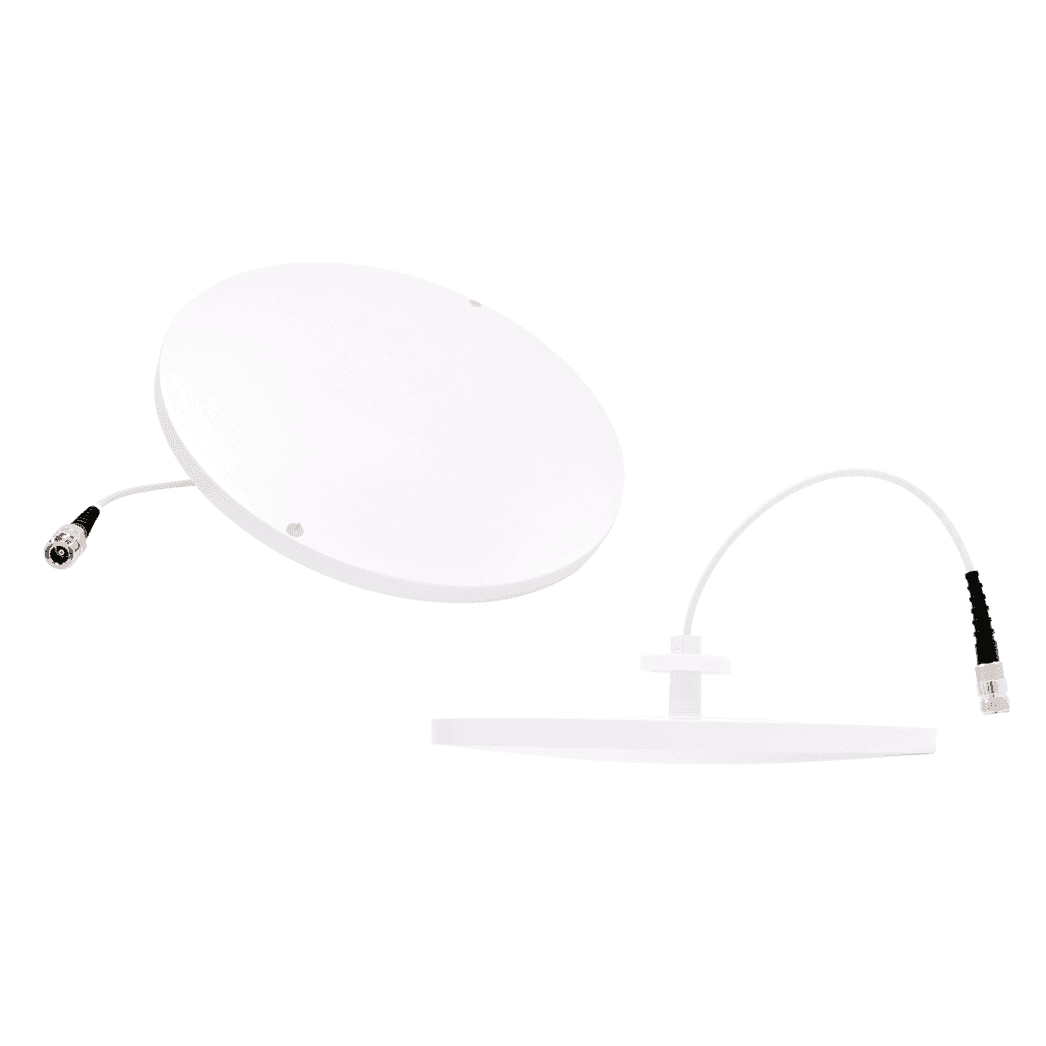

IXL-YJN-H4PU
380-2700MHz, N-Female
Features:
• Omni-Directional Wideband Antenna (380–2700 MHz)
• Covers UHF/700/ 800MHz Public Safety Band and Cellular networks
• Low-profile form factor designed for indoor applications
• Compact ceiling-mount design for discreet installation and cost-effectiveness
• Meets UL-94-V0 flammability rating for enhanced safety compliance
Description
Electrical Specifications:
| Product Model | IXL-YJN-H4PU | ||||
| Frequency (MHz) | 380-520 | 698-960 | 1695-2700 | ||
| Gain (dBi) | 2.0 ± 1.0 | 2.2 ± 1.0 | 4.5 + 1.0 | ||
| Polarization | Horizontal | ||||
| Beamwidth Horizontal (°) | 360 | ||||
| VSWR | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 | ||
| Average Power, max (W) | 50 | ||||
| Impedance (ohm) | 50 | ||||
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | ∅ 10.5 x 0.7 / ∅ 266 x 18 |
| Weight (lb./kg) | 0.9 / 0.4 |
| Shipping Dimension(in/mm) | 811.0 x 10.8 x 3.9 / 280 x 275 x 100 |
| Shipping Weight(lb./kg) | 1.6/ 0.7 |
| Radome Material & Color | ABS, White, RAL9003 |
| Mounting | Ceiling Mount |
| Flammability | UL-94-V0 |
| Mounting/Connector type | Ceil Mount, N-female Option: High Ceiling or Joist mount bracket (MT-ND-HC) |
*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated”.
*Note: Not recommended for use with metal J boxes. Plastic or fiberglass J boxes are acceptable.
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -55°C to +70°C |
| RoHS | Compliant |
| Humidity | Up to 95% |
| Environment | IP54* |

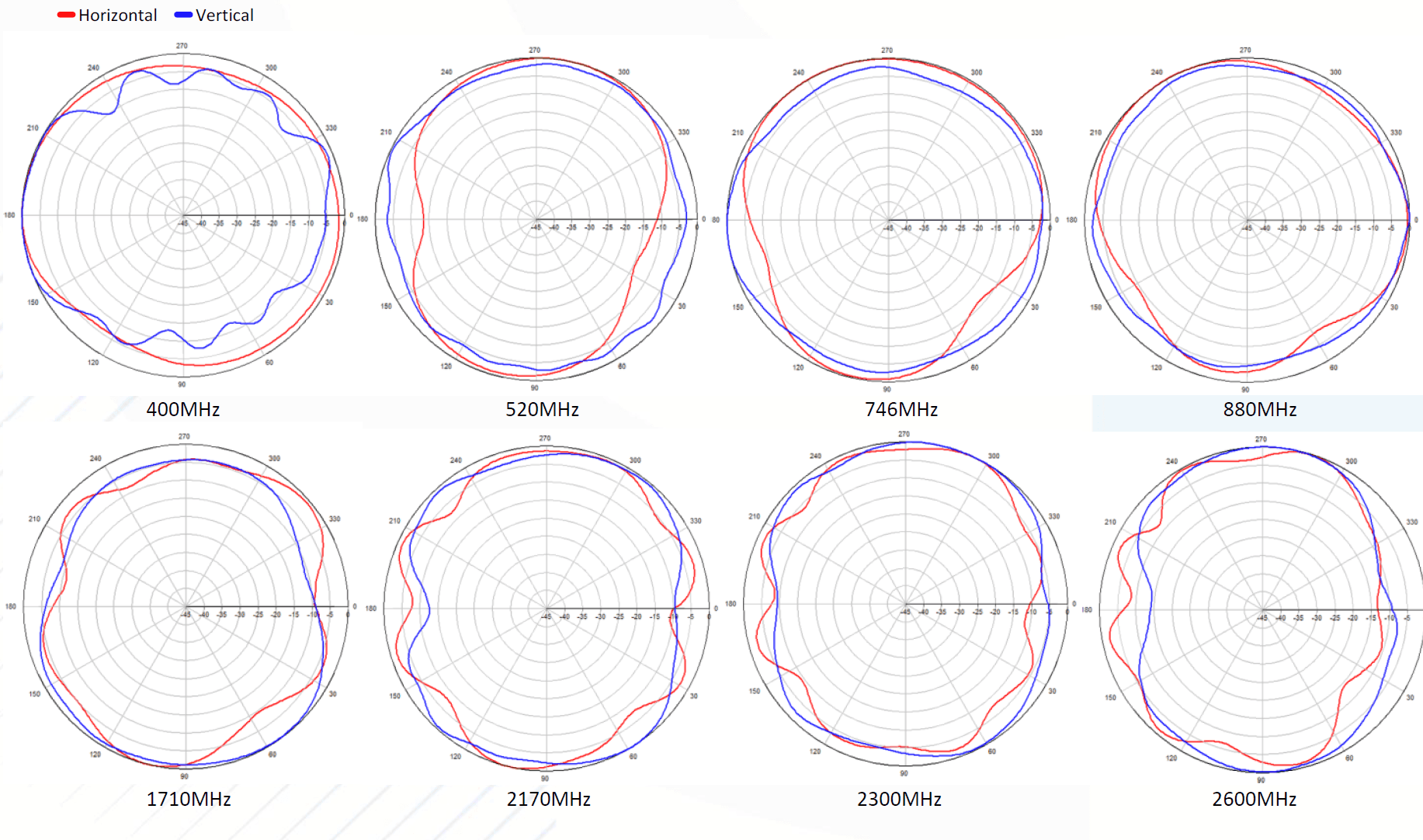

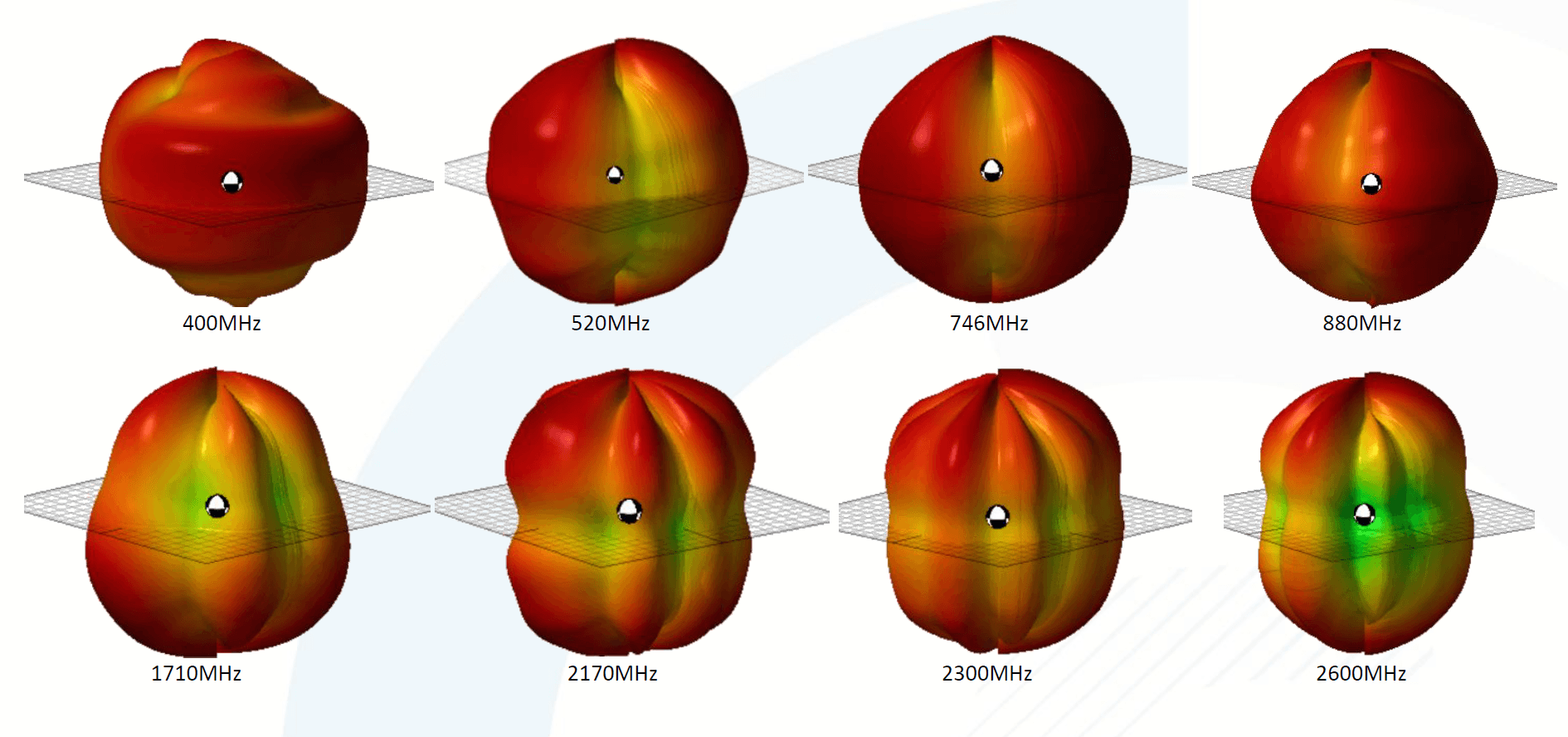

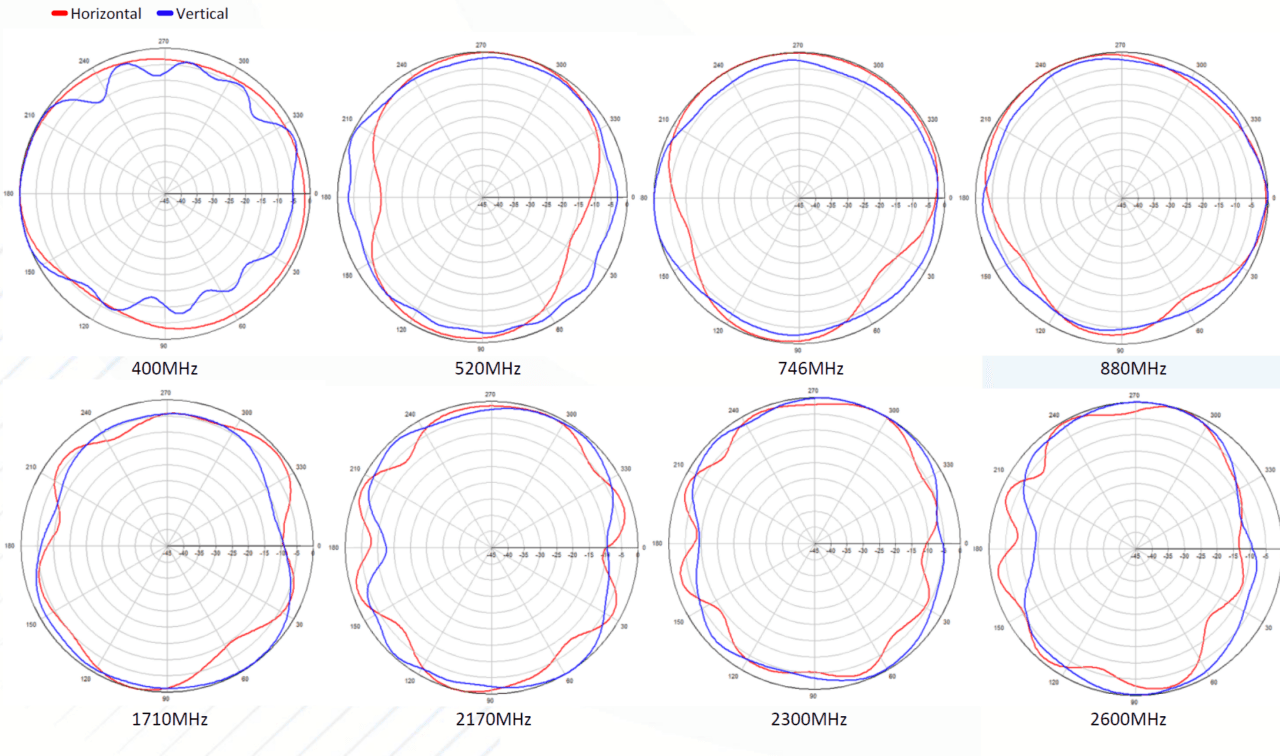

Antenna Pattern:
|
|

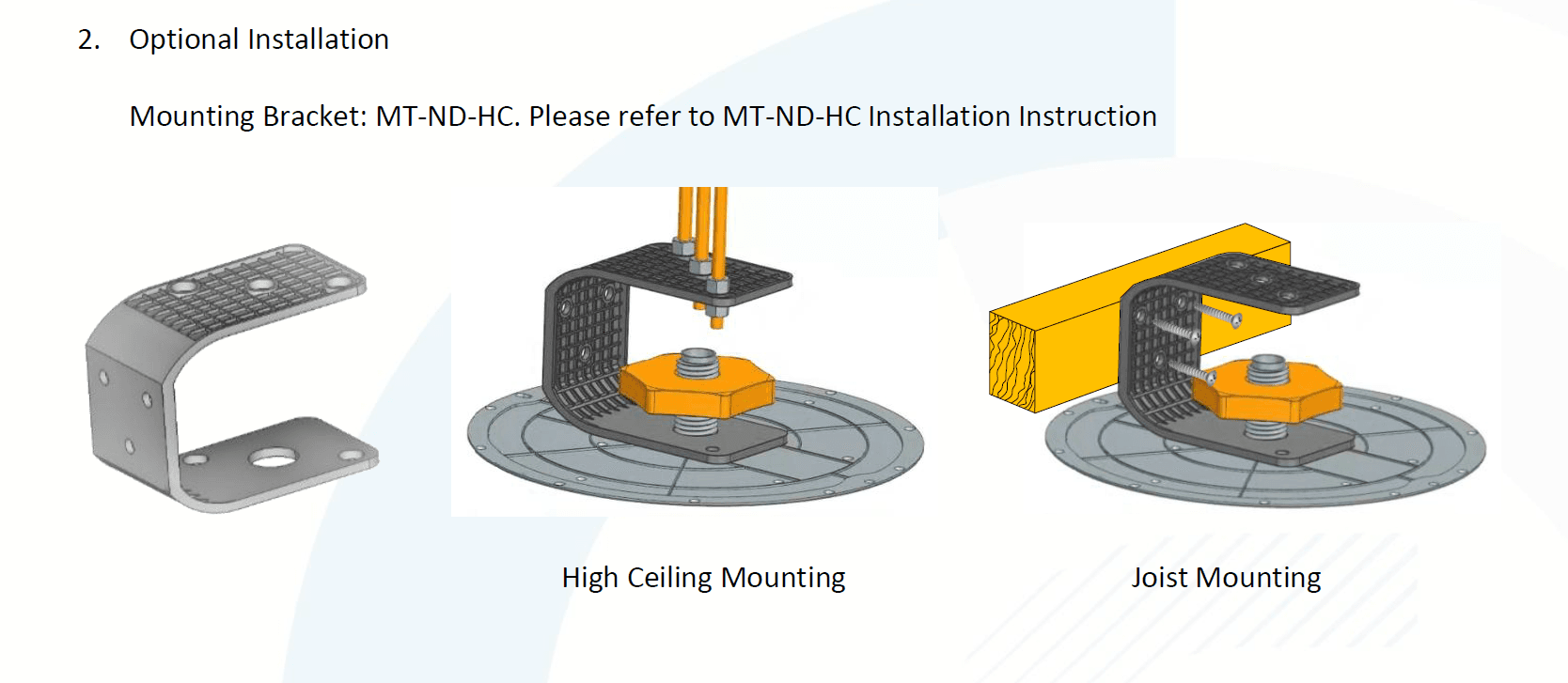

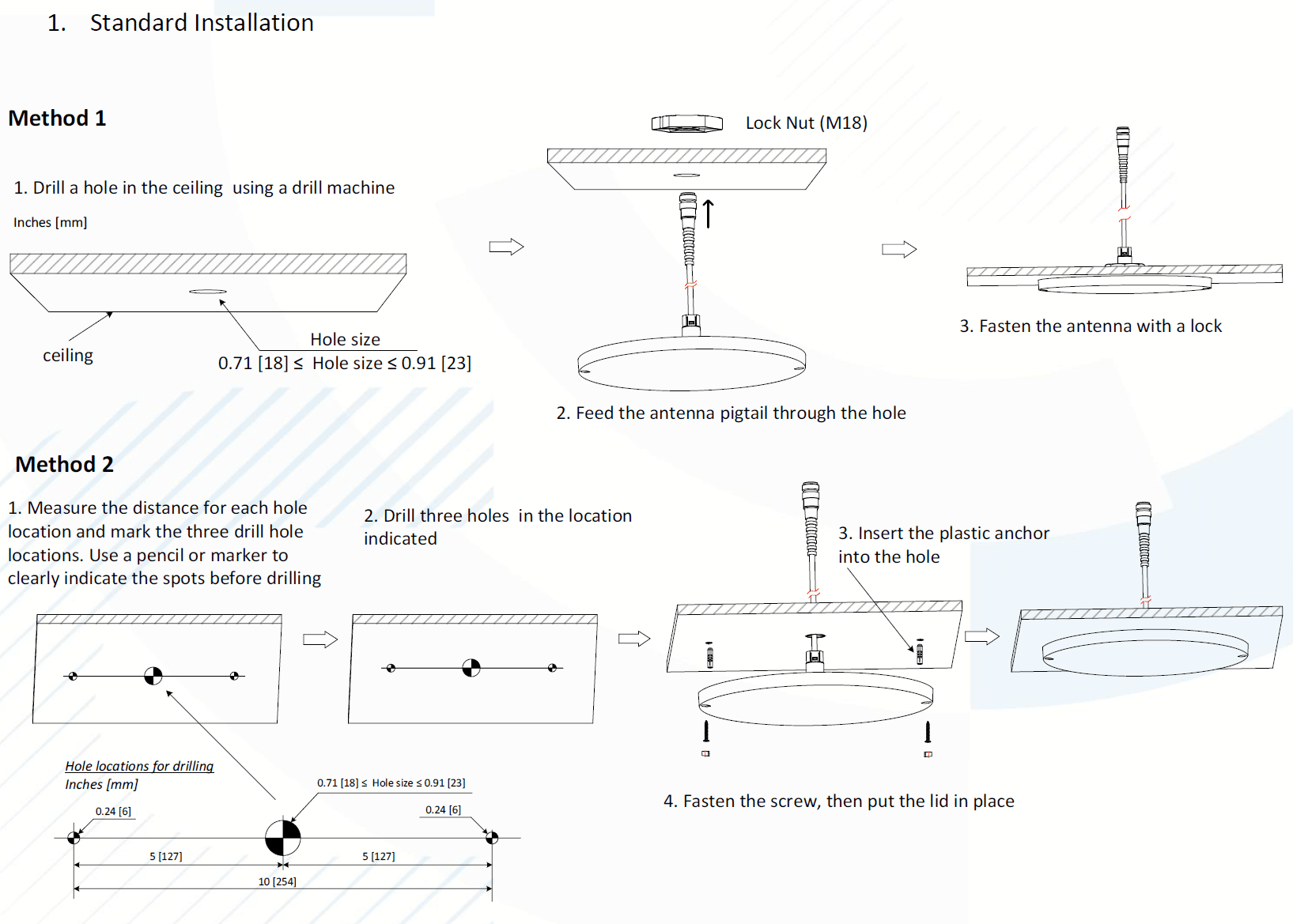

Outline Drawing:
| ||
Datasheet: IXL-YJN-H4PU DS 1-0-2_2025_0923
|
