IOX-ERN-V5PU / IOX-ERA-V5PU
Omni Antenna Ceiling Mounted
138-7200MHz, N-Female, 4.3-10 Female, UL-94-V0, IP67
• Wideband frequency coverage from 138-7000MHz
• Designed for indoor and outdoor use with IP67-rated environmental protection,
ensuring reliable performance in harsh environments
• Supporting flammability UL-94-V0 rating
Description
Electrical Specifications:
| Product Model | IOX-ERN-V5PU / IOX-ERA-V5P | ||||
| Frequency (MHz) | 136-174 | 350-520 | 617-960 | 1698-2700 | 3300-7200 |
| Gain (dBi) | -12.7 | 1.5 | 3.0 | 4.5 | 5.0 |
| Polarization | Vertical | ||||
| Beamwidth Horizontal (°) | 360 | 360 | 360 | 360 | 360 |
| Beamwidth Vertical(°) | 90 | 90 | 40 | 40 | 40 |
| VSWR | ≤ 2.0 | ≤ 2.5 | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 |
| Average Power, max (W) | 50 | ||||
| Impedance (ohm) | 50 | ||||
Mechanical Specifications:

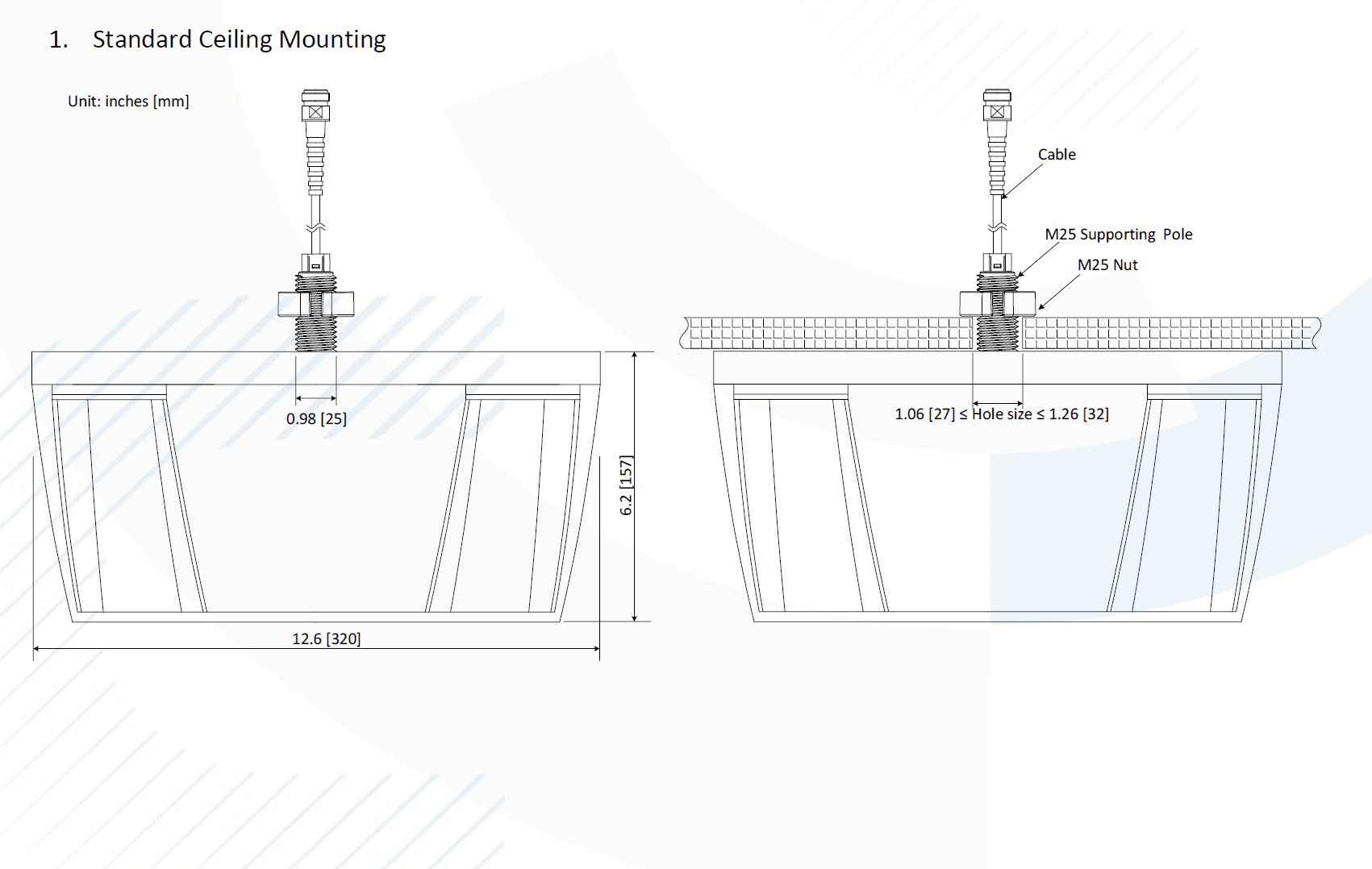

Dimension Diameter, Height (in/mm) | ∅ 12.6x6.2 / ∅ 320x157 |
| Weight (lb./kg) | 3.1 / 1.4 |
| Shipping Dimension(in/mm) | 13.0x13.0x10.0 / 330x330x253 |
| Shipping Weight(lb./kg) | 5.5 /2.5 |
| Radome Material & Color | ABS, White, RAL9003 |
| Flammability | UL-94-V0 |

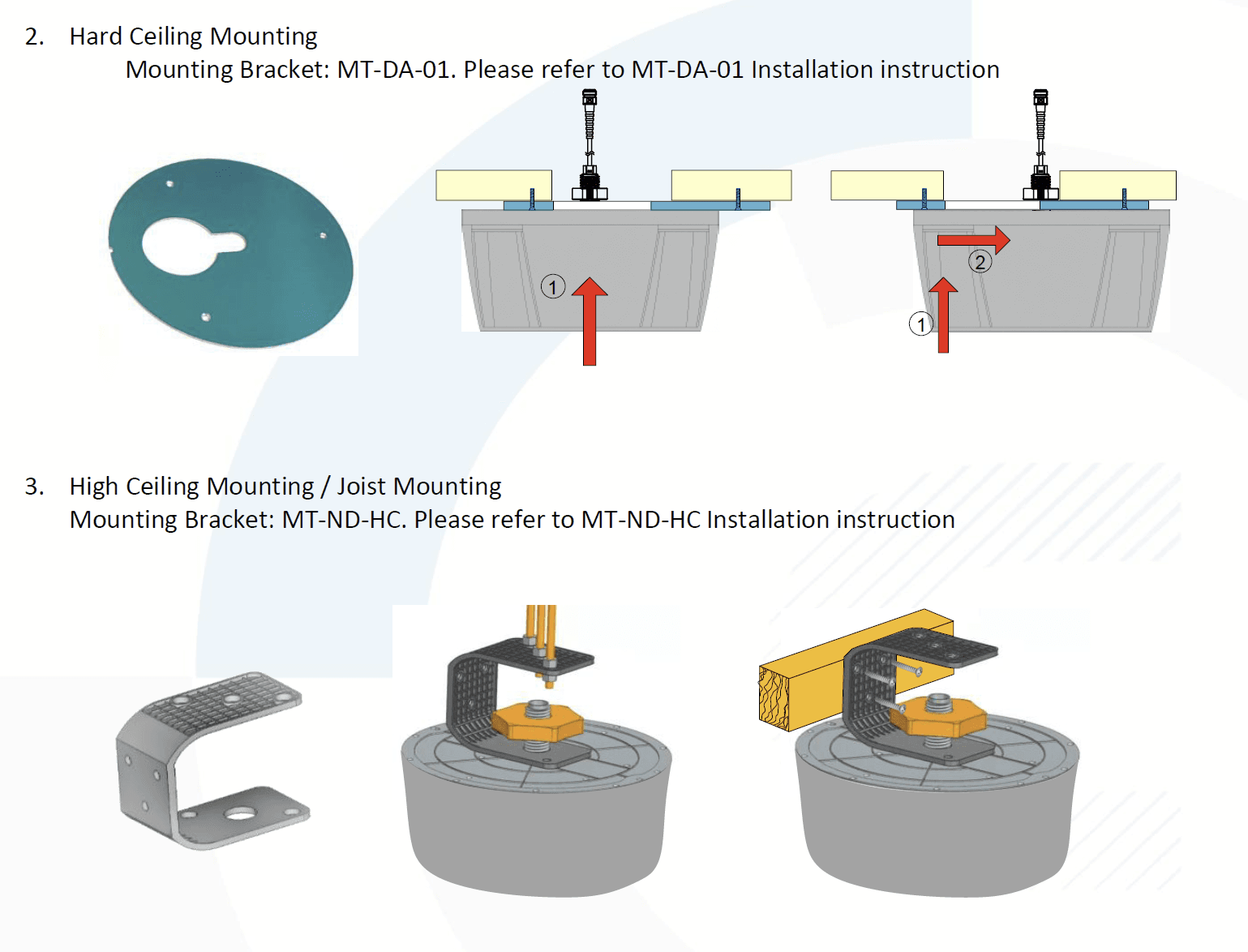

| Mounting/Connector type | Ceil Mount, N-type: IOX-ERN-V5PU, 4.3-10: IOX-ERA-V5PU |
Environmental Specifications:
| Application | Indoor/Outdoor |
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
| Environment | IP67 |

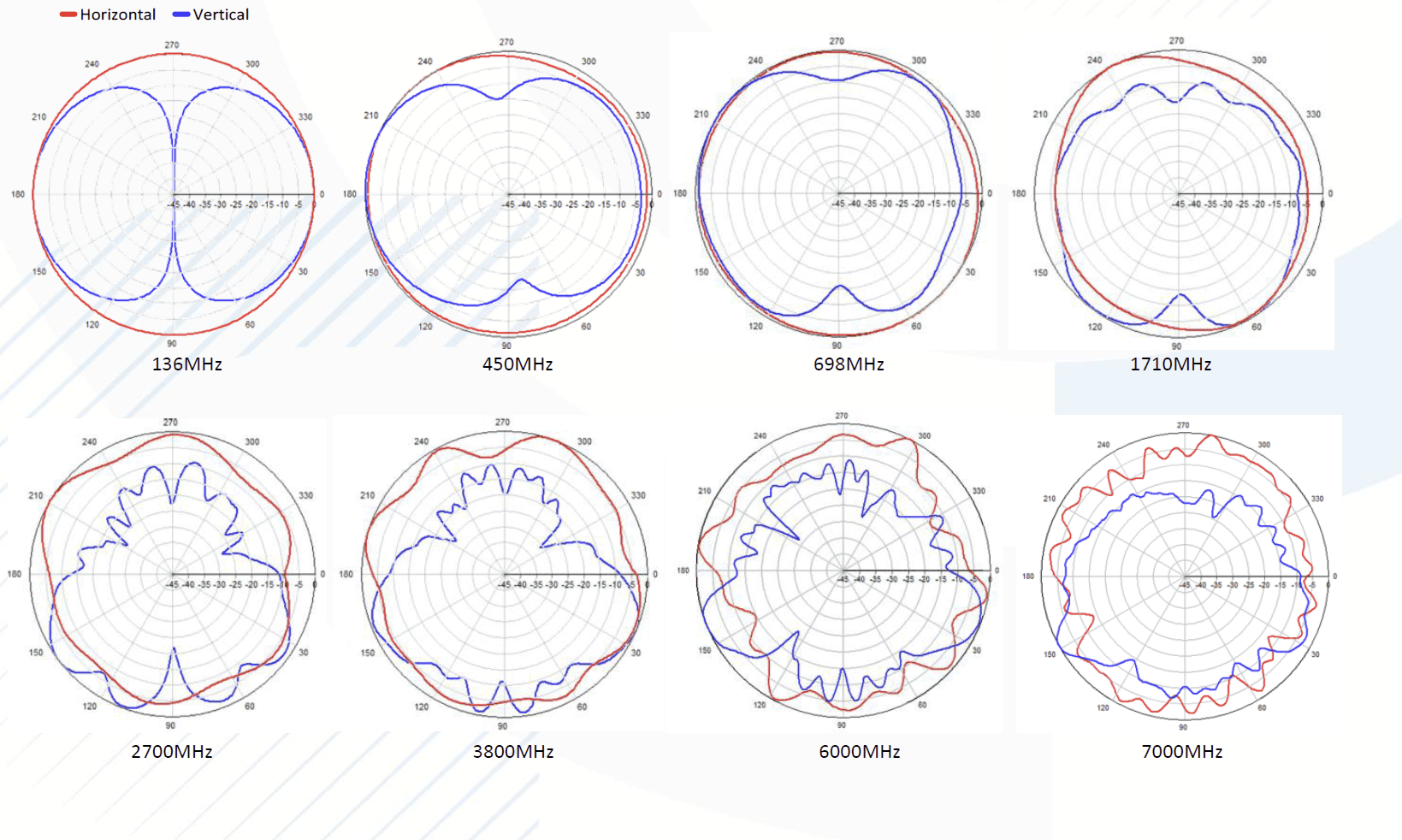

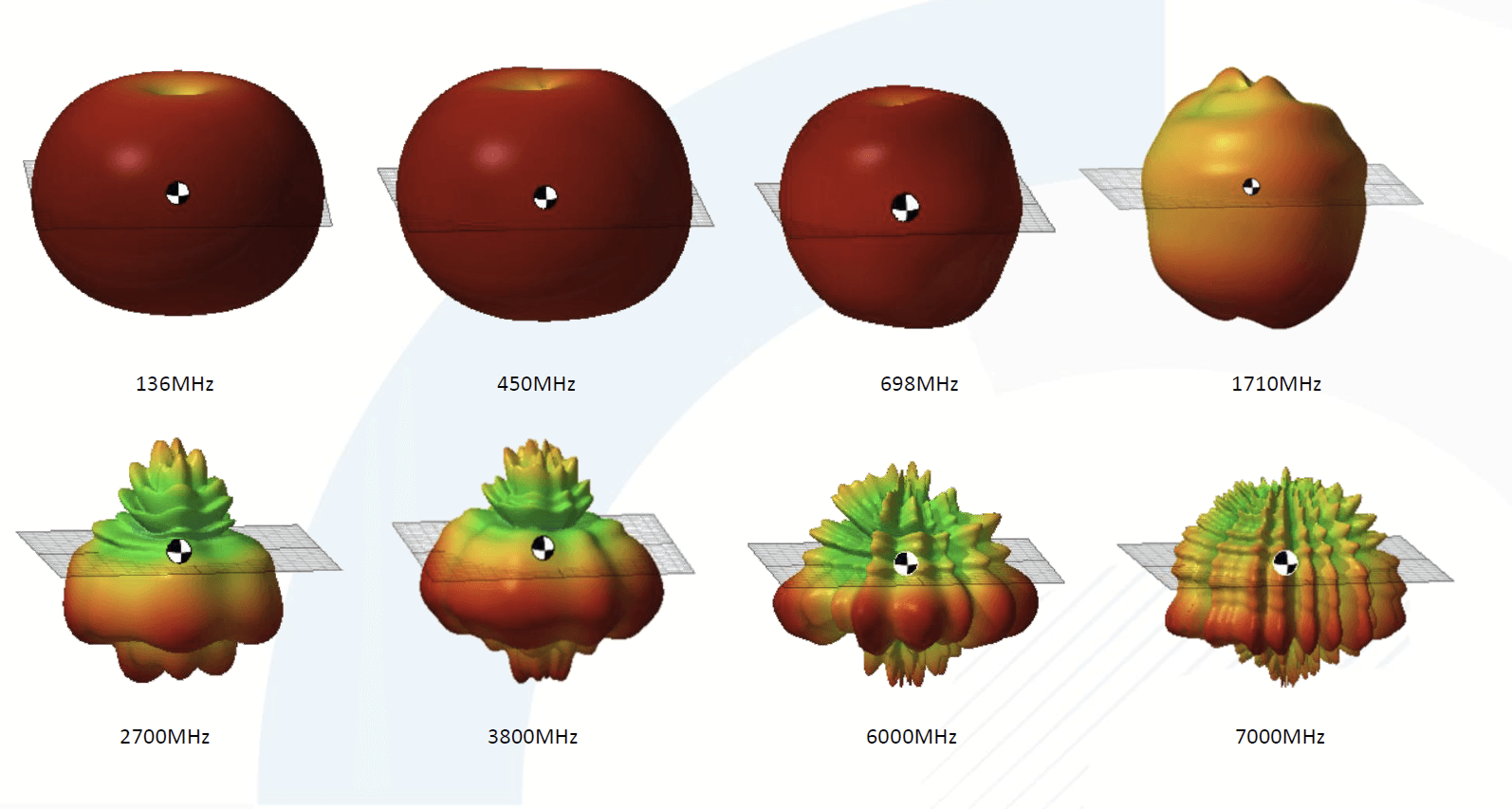

Antenna Pattern:
|
