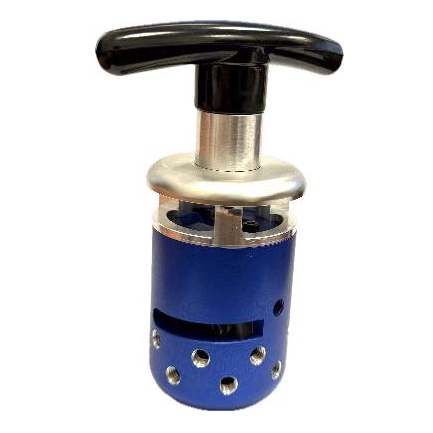

AP-F12
Preparation Tool for N-Type and 4.3-10 Connectors-Compatible with 1/2″ Coaxial Cable
• Designed for stripping and coring 1/2-inch coaxial cables
• Suitable for both manual and drill-assisted operation
• Constructed from high-quality anodized aluminum for durability
• Equipped with multiple blades for efficient and precise stripping and coring
Description
Mechanical Specifications:
Body Material | Anodized Aluminum |
| Tool | Automated cable Prep tool |

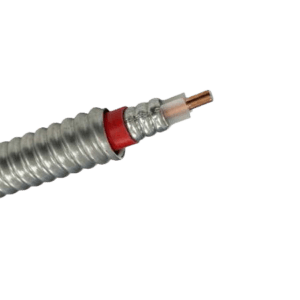

| Supporting Coaxial Cable | 1/2” Corrugated Coax Cable CS-F12PAR, CS-F12PAW |
| Related Connectors | CN-NM-F12 (N-type male)/CN-NF-F12 (N-type female) CN-4M-F12 (4.3-10 male) / CN-4F-F12 (4.3-10 female) |
Related Tool | FL-F12 (Flaring tool for 1/2" Coax) |
| Dimension (in/mm) | 5.1x3.5x2.0 / 130x90x50 |
| Weight (lb./kg) | 1.1 / 0.5 |
| Shipping Dimension (in/mm) | 5.9x3.9x3.9 /150x100x100 |
| Shipping Weight(lb./kg) | 1.5 / 0.7 |
| ||
| Datasheet: AP-F12_DS 1-0-0_2025_0807 |
