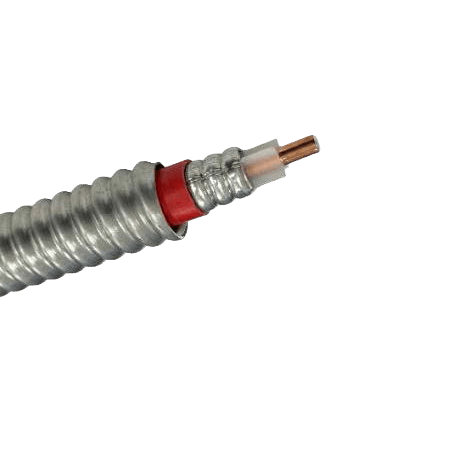

CS-AF12P Series1/2” Armored 1/2” Aluminum Plenum Rated Coax

Description

Electrical Specifications:

Mechanical Specifications:

Diameter Over Inner Conductor (in/mm)	0.189 / 4.80
Diameter Over Insulation (in/mm)	0.461 / 11.70
Diameter Over Outer Conductor (in/mm)	0.545 / 13.85
Diameter Over Jacket (in/mm)	0.618 / 15.70
Diameter Over Outer Armor-Clad (in/mm)	0.925 ± 0.06 / 23.5 ±1.5
Minimum Bending Radius-Single (in/mm)	2.5 / 178
Minimum Bending Radius-Multiple (in/mm)	5.0 / 304.8
Maximum Tensile Force (N/ lbf)	776 / 175
Cable Weight. (lb./ft (kg/m)	0.23 (0.34)
Flat Crush (lb./in (kg/m)	79.96 / 1.428
Shipping Dimension (in/m)	28.3×28.3×20.5/ 720x720x520 @ 750ft 28.3×28.3×15.8/ 720x720x400 @ 500ft
Shipping Weight(lb./kg)	216.3 / 98.1 @ 750ft 151.0 / 68.5 @ 500ft

Material:

Inner Conductor	Copper Clad Aluminum Wire
Insulation	PE Spline
Outer Conductor	Ring Corrugated Copper
Jacket	PVC, Red Plenum Rated Jacket
Armor-Clad	Interlocked Aluminum
Prep Tool	AP-F12 (Prep-Tool), FL-F12(Flaring Tool), BL-F12(Blades) TL-F12(Tool kit included AP-F12, FL-F12 and hard case)
Associated Connectors	CN-NM-F12: N-Male / CN-NF-F12: N-Female CN-4M-F12: 4.3-10-Male / CN-4F-F12: 4.3-10-Female

Environmental Specifications:

Compliance & Certification:

Certification

Plenum Rated

CMP ETL UL-444/CSA C22.2NO214 FT6
NFPA 72 section 12.4.2 Pathway Survivability Level 1

RoHS

Compliant

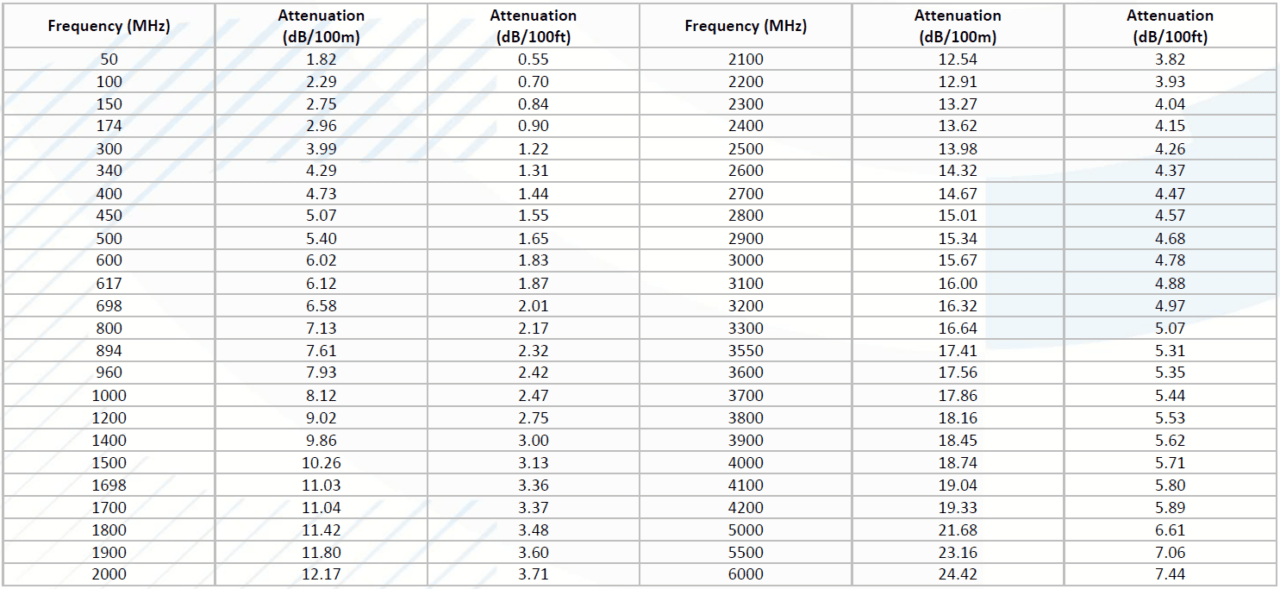

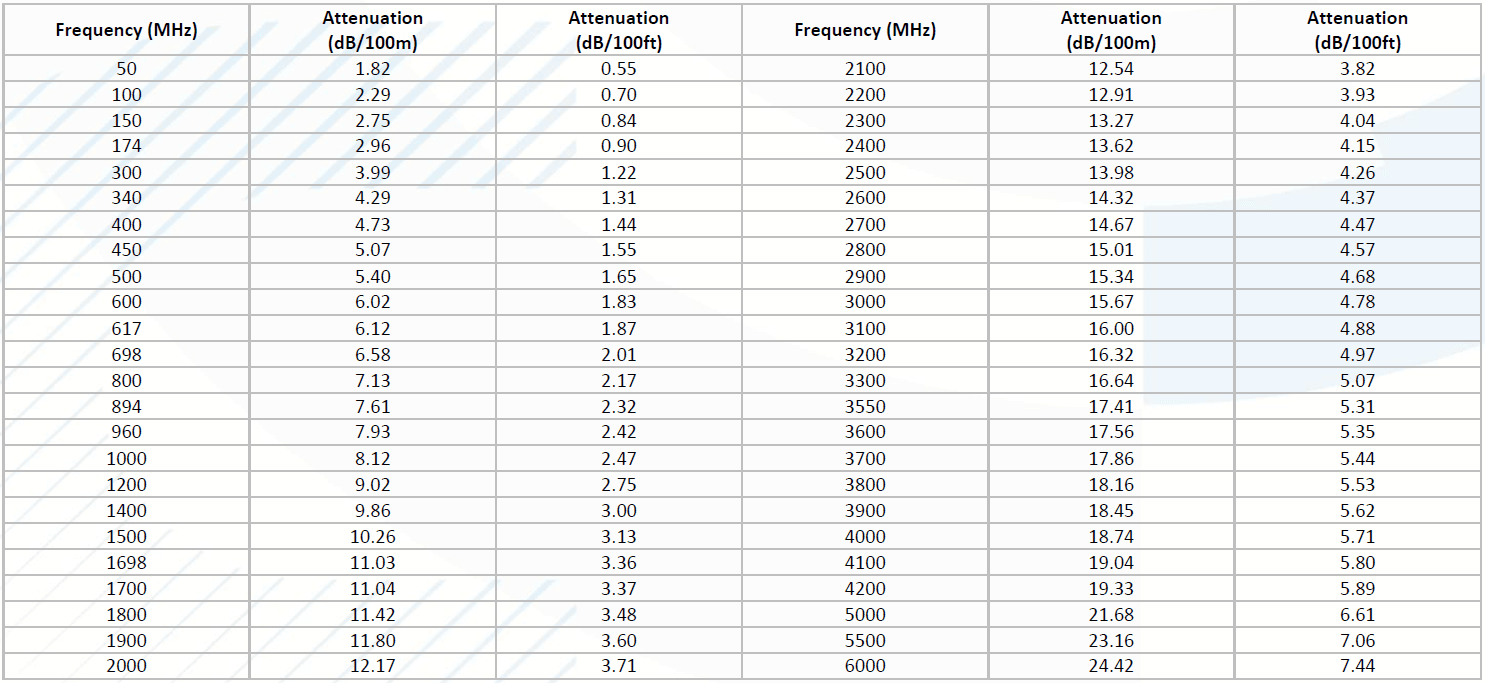

	Attenuation Chart: Note: Typical attenuation at ambient temperature +20°C (68°F)

	Datasheet: CS-AF12PAR series DS 2-0-1_2026_04091
