HB-F12D
Dual 1/2” Coaxial Cable Hanger Block
1/2” Dual Coax Hanger Block for 3/8” or M10 threaded rod
Description
Mechanical Specifications:
Body Material | Polypropylene |
| Operation Temperature (°C) | -40 to +85 |
| Storage Temperature – (°C) | -10 to +40 |
| Relative Humidity | Up to 95% |
| Supporting Coaxial Cable Diameter | 1/2” |
Compatible Cable Jacket OD, max. (in/mm) | 0.65 / 16.5 |
Compatible Cable Jacket OD, min. (in/mm) | 0.59 / 15.0 |
UV Resistance | ≥1000 hours, based on ISO4892.3-1994 |
Mounting | Mounting hole for 3/8” or M10 threaded rod |
Color | Black |
| Shipping Dimension (in/mm) | 7.9x7.1x1.2/ 200x180x30 |
| Shipping Weight(lb./kg) | 0.49 / 0.22 |
| Packing | 10sets / pack Not included mounting rod and screws |

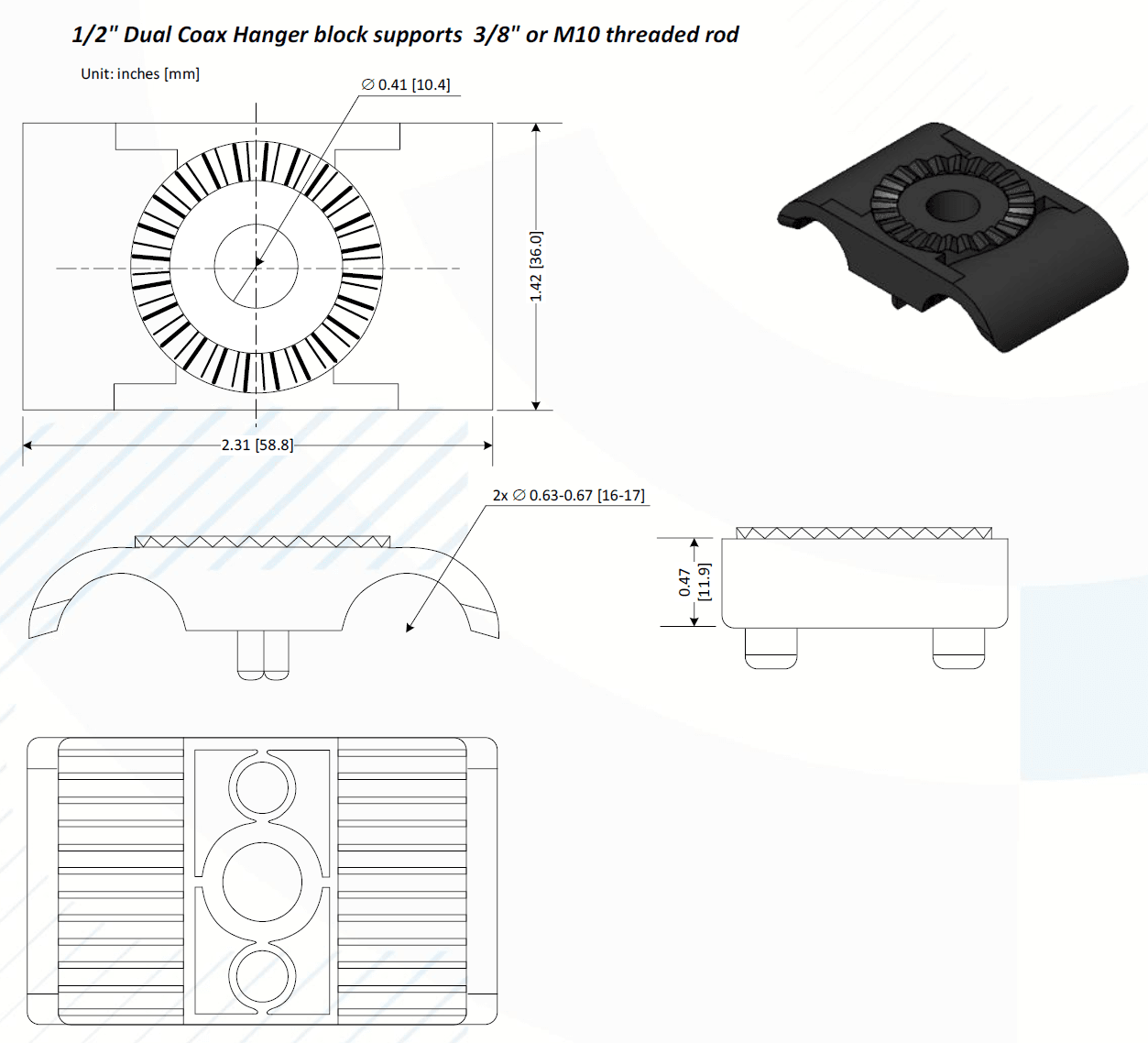

Outline Drawing:
| ||
| Datasheet: HB-F12D_DS 1-0-1_2025_0813 |
