DC-H20NIDS
Low PIM(-161dBc), 698-3980MHz, N-Female, DC- Pass
Features:
• Wideband design covering 698-3980MHz – 2G/3G/4G LTE network and CBRS, C-Band
• Supporting DC-Pass for all ports
• Suitable for indoor/outdoor environment
• High reliability and low insertion loss
Description
Electrical Specifications:
| Frequency (MHz) | 698-3980 | |||||||
| Coupling (dB) | 20 | |||||||
| Coupling Tolerance (dB) | ± 1.5 | |||||||
| Loss (dB) | ≤ 0.5 | |||||||
| Directivity (dB) | ≥ 18 | |||||||
| VSWR @ all ports | 1.2 | |||||||
| PIM (dBc) | ≤ -161 @ 2 x 43dBm | |||||||
| Average Power, max (W) | 300 | |||||||
| Peak Power, max (W) | 1000 | |||||||
| Impedance (ohm) | 50 | |||||||
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | 7.84x3.29x2.72 / 199.2x83.5x69.0 |
Weight (lb/kg) | 2.87 / 1.3 |
Shipping Dimension | 8.78x3.94x3.15 / 223.0x100.0x80.0 |
Shipping Weight (lb/kg) | 3.09 / 1.4 |
Connector Type | N-Female |
Environmental Specifications:
| Application | Outdoor / Indoor |
| Operating Temperature | -35°C to +85°C |
| Environment | IP65 |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |

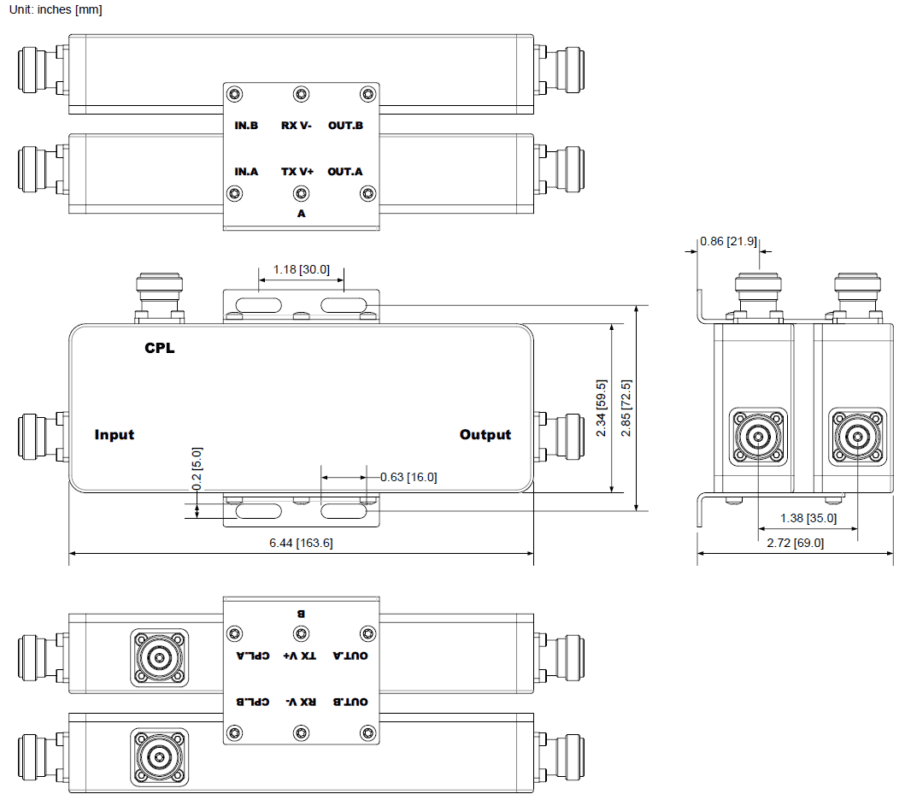

Outline Drawing:
| ||
Datasheet: |
