GBC-6P0207Q-A
GBC-12P0212Q-A

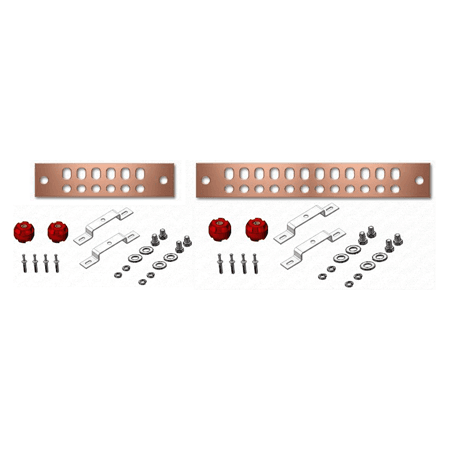

Ground Bars Tinned Copper
Tinner Copper, 1/4” Thickness, 2” width, 7” &12” Long
Description
General Specifications:
| Product Model | GBT-6P0207Q-A | GBT-12P0212Q-A |
| Total Number of Pais of two holes | 6 | 12 |
| Total Number of holes | 14 | 26 |
| Hole Patterns | Type A | Type A |
Material & Mechanical Specifications:
Material, Bar | Copper | Copper |
| Shipping Weight (lb./kg) | Ground Bar, Bracket including Insulators and Bolts, Nuts, Flat Washers and Spring Washers | |
| Hole Size | 0.438 “ / 11.1mm 0.438”x0.688” /11.1×16.9mm | 0.438 “ / 11.1mm 0.438”x0.688” /11.1×16.9mm |
| Space | 0.75”-1.0” | 0.75”-1/0” |
| Bolt | Hex 3/8” | Hex 3/8” |
| Bar size. Length x Width x Thickness (in/mm) | 7.0×2.0x0.25 / 177.8×50.8×6.35 | 12.0×2.0x0.25 / 304.8×50.8×6.35 |
| Insulator and Bracket | Included | Included |
| Shipping Dimension (in/mm) | 12.8×2.5×2.0 / 325x62x50 | 12.8×2.5×2.0 / 325x62x50 |
| Shipping Weight (lb./kg) | 3.1 / 1.41 | 4.5 / 2.06 |

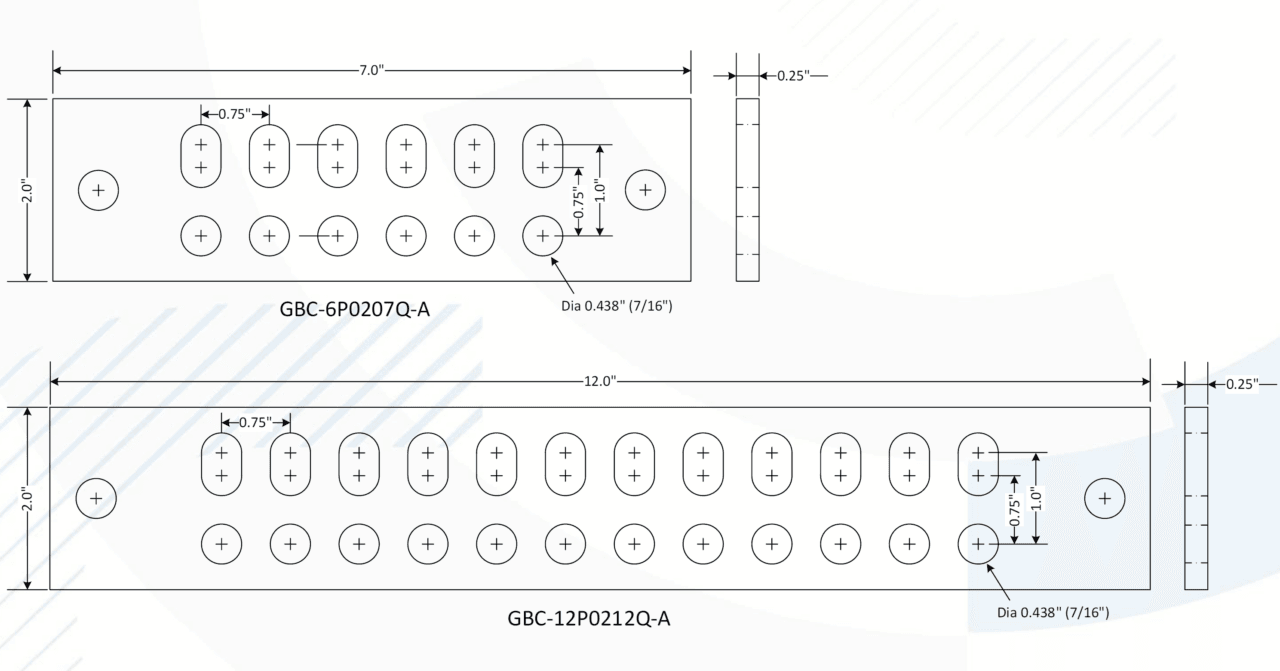

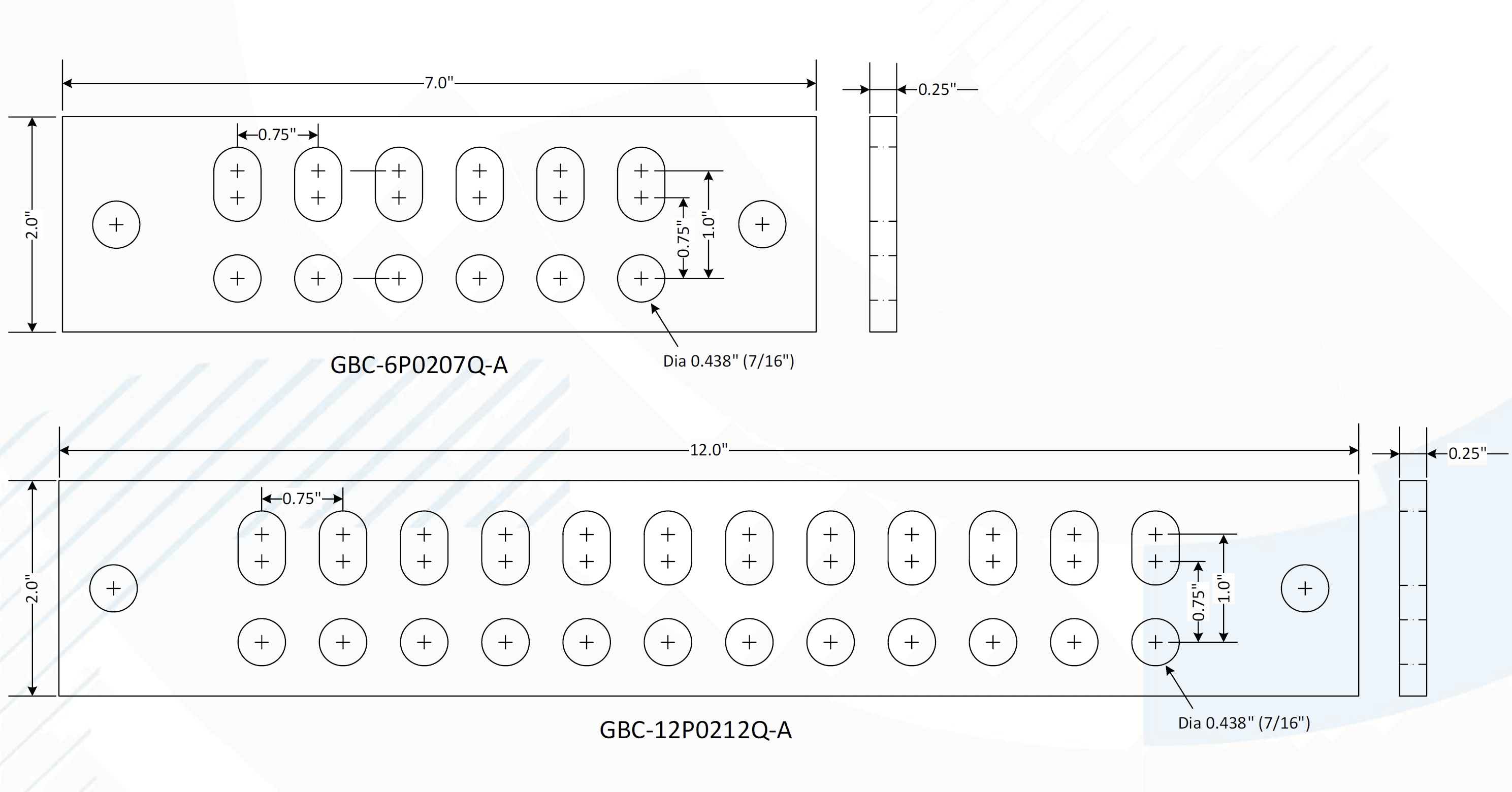

Drawings:
| ||
| Datasheet: GBC-A type series DS 1-0-0_2026_0323 |
