HC-HS2SAI / HC-HS2NI
Low PIM(-161dBc), 2×2 Hybrid coupler, 555-6000MHz
Features:
• Wideband design covering 555-6000MHz
– 3G/4G LTE Network, CBRS, C-band and up to 6GHz
• Connects 2 inputs to 2 outputs
• Suitable for indoor/outdoor environment
• High reliability and low insertion loss
Description
Electrical Specifications:
| Product Model | HC-HS2NI / HC-HS2AI |
| Frequency (MHz) | 555-6000 |
| Coupling Value (dB) | 3.1 ± 0.8 |
| Insertion Loss (dB) | ≤ 0.2 |
| VSWR @ all ports | ≤ 1.25 |
| Isolation (dB) | ≥ 20 |
| PIM | ≤ -161 @ 2 x 43dBm |
| Total Average Power, max (W) | 200 |
| Peak Power, max (W) | 1000 |
| Impedance (ohm) | 50 |
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | 5.71x3.28x1.42 / 145.0x83.0x36.0 |
| Weight (lb/kg) | 1.26 / 0.57 |
| Shipping Dimension (in/mm) | 12.40x3.94x2.56 / 178.0x88.0x38.0 |
| Shipping Weight (lb/kg) | 1.41 / 0.64 |
| Connector Type | HC-HSNI; N-type / HC-HS2AI; 4.3-10 |
Environmental Specifications:
| Application | Outdoor / Indoor |
| Operating Temperature | -40°C to +85°C |
| Environment | IP65 |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |

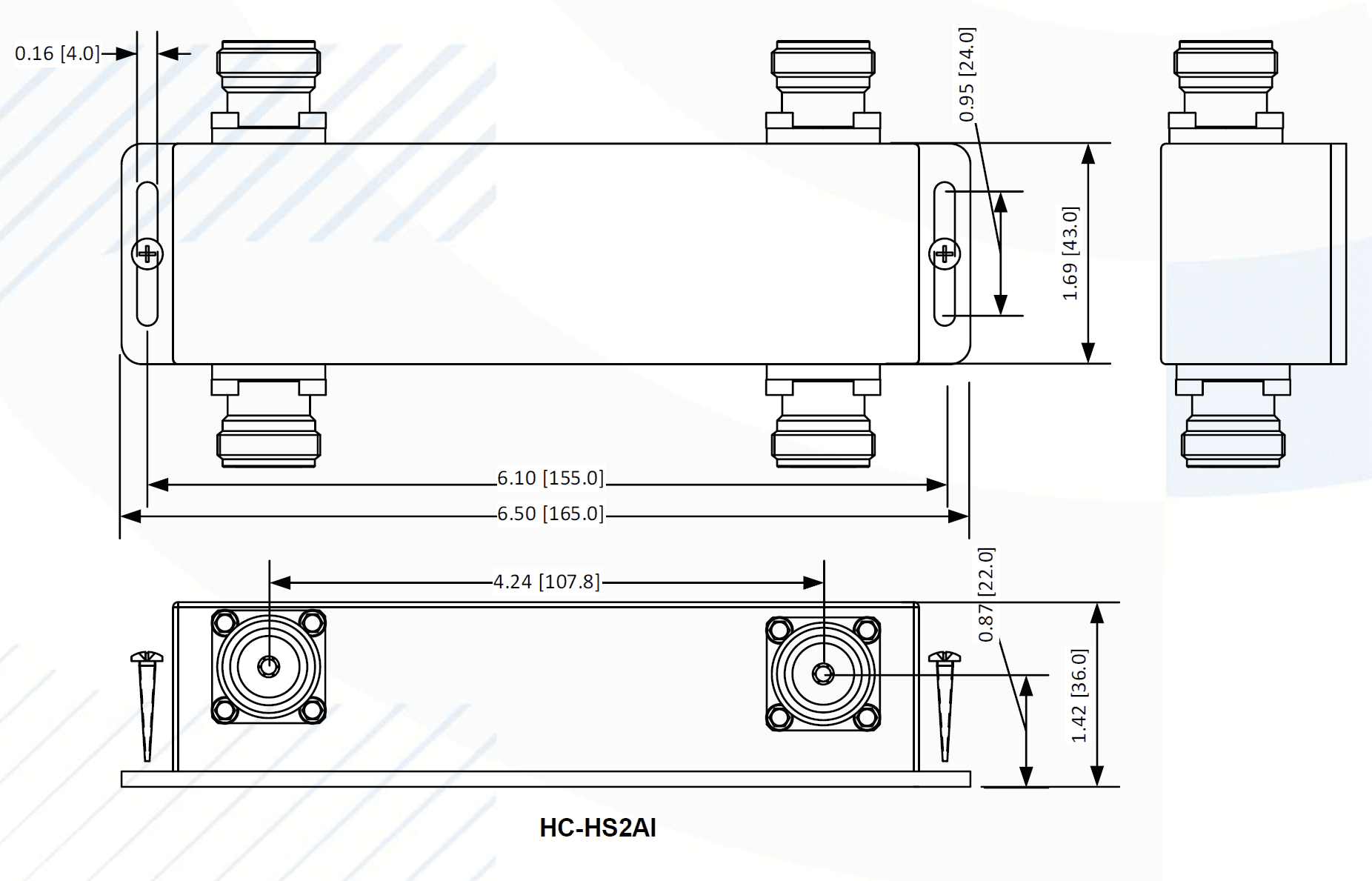

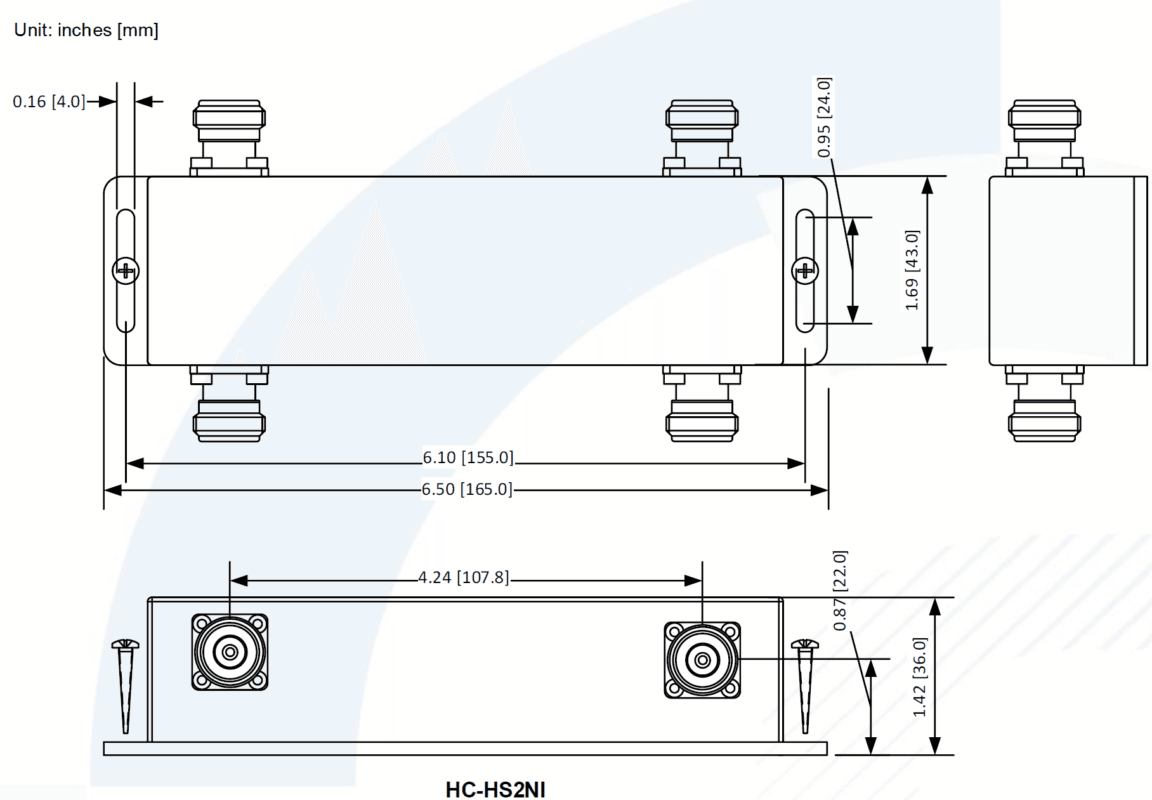

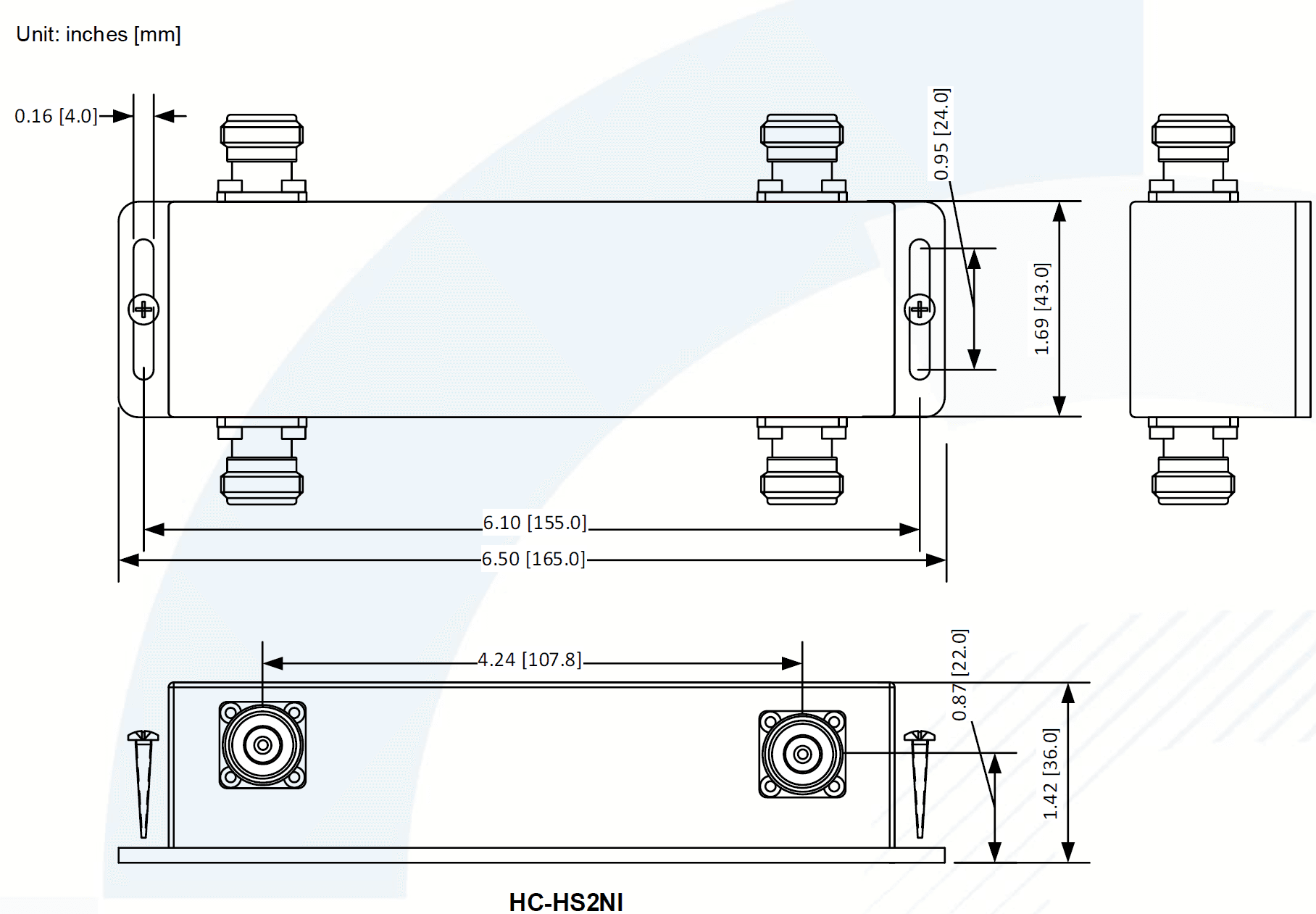

Outline Drawing:
| ||
