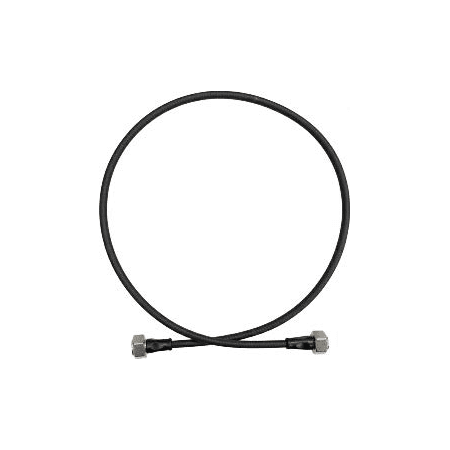

Black Jumper Cable, 0.250 type, CMR Rated (4.3-10 type, N-type connector, DC-6.0GHz)

Description

Electrical Specifications:

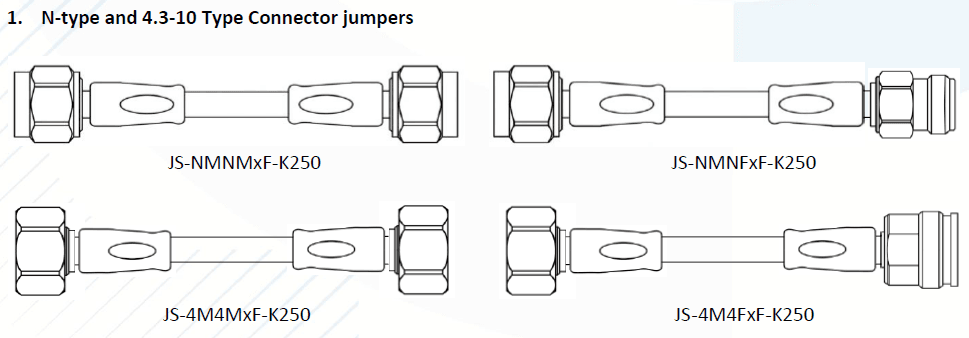

Product Model	3ft	6 ft	10 ft
N-type /M-M	JS-NMNM3F-K250	JS-NMNM6F-K250	JS-NMNM10F-K250
N-type /M-F	JS-NMNF3F-K250	JS-NMNF6F-K250	JS-NMNF10F-K250
4.3-10 type /M-M	JS-4M4M3F-K250	JS-4M4M6F-K250	JS-4M4M10F-K250
4.3-10 type /M-F	JS-4M4F3F-K250	JS-4M4F6F-K250	JS-4M4F10F-K250

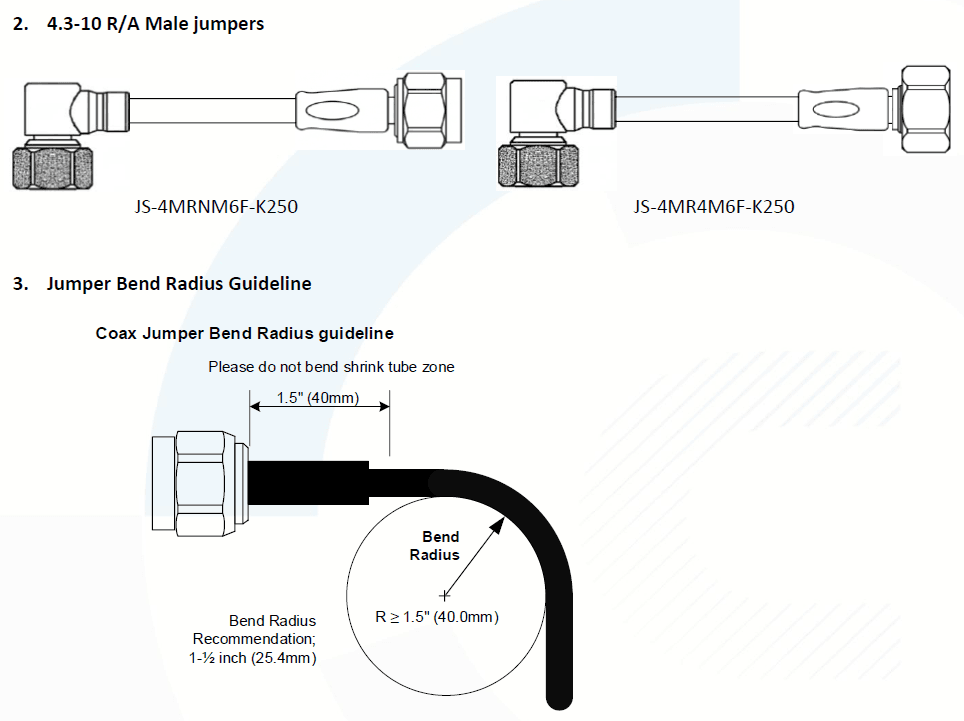

4.3-10 R/A M to 4.3-10 M	N/A	JS-4MR4M6F-K250	N/A
4.3-10 R/A M to N-M	N/A	JS-4MRNM6F-K250	N/A
Frequency (MHz)	DC-6000MHz
Insertion Loss(dB).max @25°C
380MHz	0.21	0.32	0.46
500MHz	0.22	0.34	0.50
960MHz	0.26	0.42	0.64
1700MHz	0.33	0.56	0.86
1900MHz	0.35	0.59	0.92
2100MHz	0.36	0.61	0.95
2700MHz	0.41	0.73	1.15
3600MHz	0.48	0.87	1.38
3800MHz	0.50	0.90	1.43
6000MHz	0.65	1.19	1.92
Insulation Resistance (MΩ)	≥ 5000
Insulation Withstanding Voltage (V)	≥ 1000, RMS, 50Hz @ sea level
Power Rating (Watts) @25°C, sea level	340W @1GHz, 196W@3GHz and 102W @6GHz
VSWR	≤ 1.25	≤ 1.25	≤ 1.25
PIM (dBc)	≤ -161 @ 2 x 43dBm, 4.3-10 connector, ≤ -158 @ 2 x 43dBm, N-type connector
Impedance (ohm)	50

Mechanical Specifications:

Cable Type	Flexible .250 type, super flexible cable
Cable Length	3ft, 6ft and 10ft. Can be customized
Interface Durability, number of cycles	≥ 100
Connector type	N-type, 4.3-10 type
Cable Length	3 ft. Can be customized
Outer Conductor Material	Brass, Tri-Alloy Plated
Inner Conductor Material	Brass, Ag Plated
Insulator	PTFE
Shipping Dimension (in/mm)	13.8x13.8x1.2 / 350x350x30
Shipping Weight (lb./kg)	0.33/0.15 @3ft, 0.46/0.21 @6ft, 0.67/ 0.30 @10ft

Environmental Specifications:
