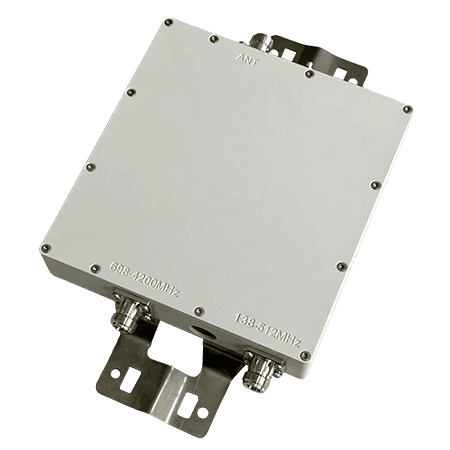

CM-SQ2-OAX / CM-SQ2-ONX
Outdoor Diplexer, PIM Rated
138-960MHz/698-4200MHz, Low PIM -153dBc, 4.3-10 Female and N-Female
Features:
• Band1: 138-960MHz, Band2: 698-4200MHz
• Co-siting purpose for feeder sharing.
• High Isolation and high-power handling
• High reliability and low insertion loss
Description
Electrical Specifications:
| Frequency (MHz) | 138-512 | 698-4200 |
| Insertion Loss (dB) | 0.3dB typ., 0.5dB max. | 0.3dB typ., 0.5dB max. |
| Isolation Between Ports (dB) | ≥ 60 typ., ≥ 50 min. | |
| Return Loss (dB) | ≥ 18 typical 20 | |
| PIM (dBc) | ≤ -153 @ 2x43dBm | |
| Average Power, max (W) | 300 | |
| Impedance (ohm) | 50 | |
Mechanical Specifications:
Dimension (in/mm) | 7.1x6.7x1.4 / 179.8x171.0x36.0 |
| Weight (lb./kg) | 5.1 / 2.3 |
| Shipping Dimension (in/mm) | 13.6x6.9x3.3 /345x175x83 |
| Shipping Weight (lb./kg) | 6.0 / 2.7 |
| Connector | CM-SQ2-OAX;4.3-10 Female CM-SQ2-ONX; N-Female |
Environmental Specifications:
| Application | Outdoor / Indoor |
| Operating Temperature | -40°C to +65°C |
| Environment | IP65 |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |

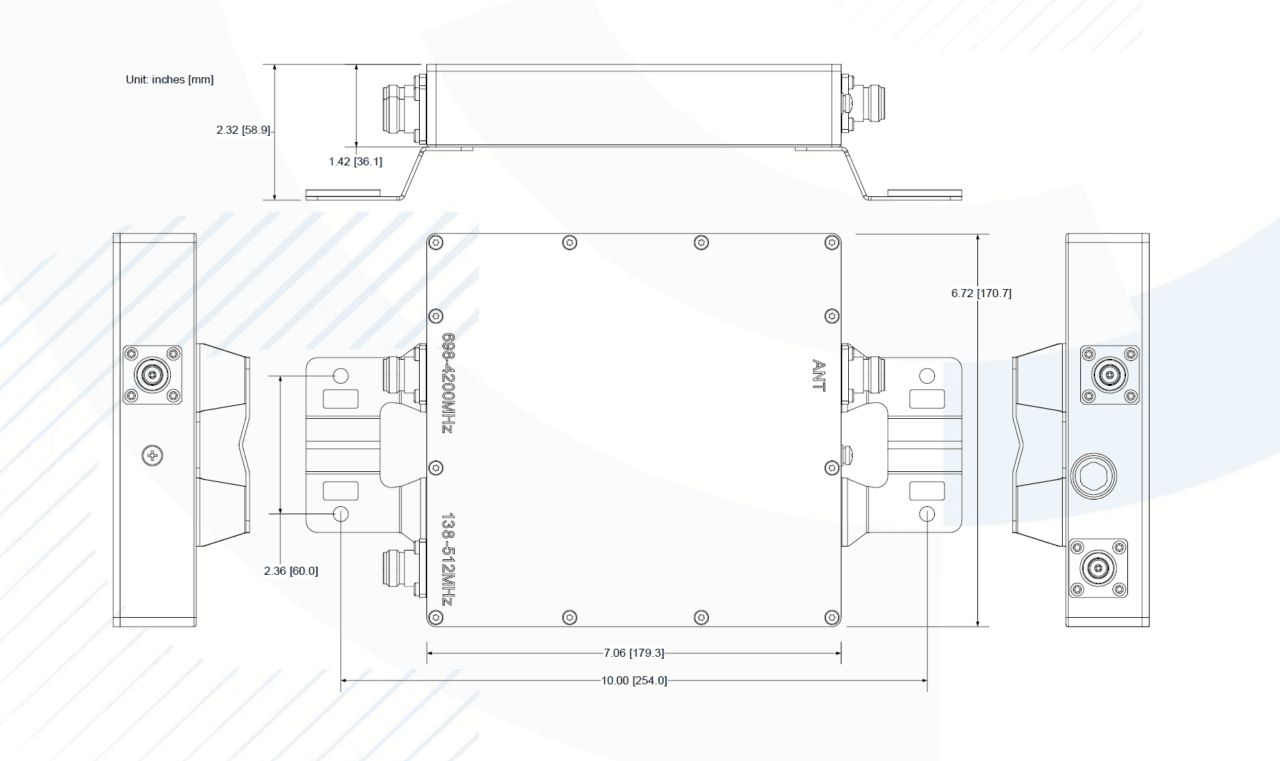

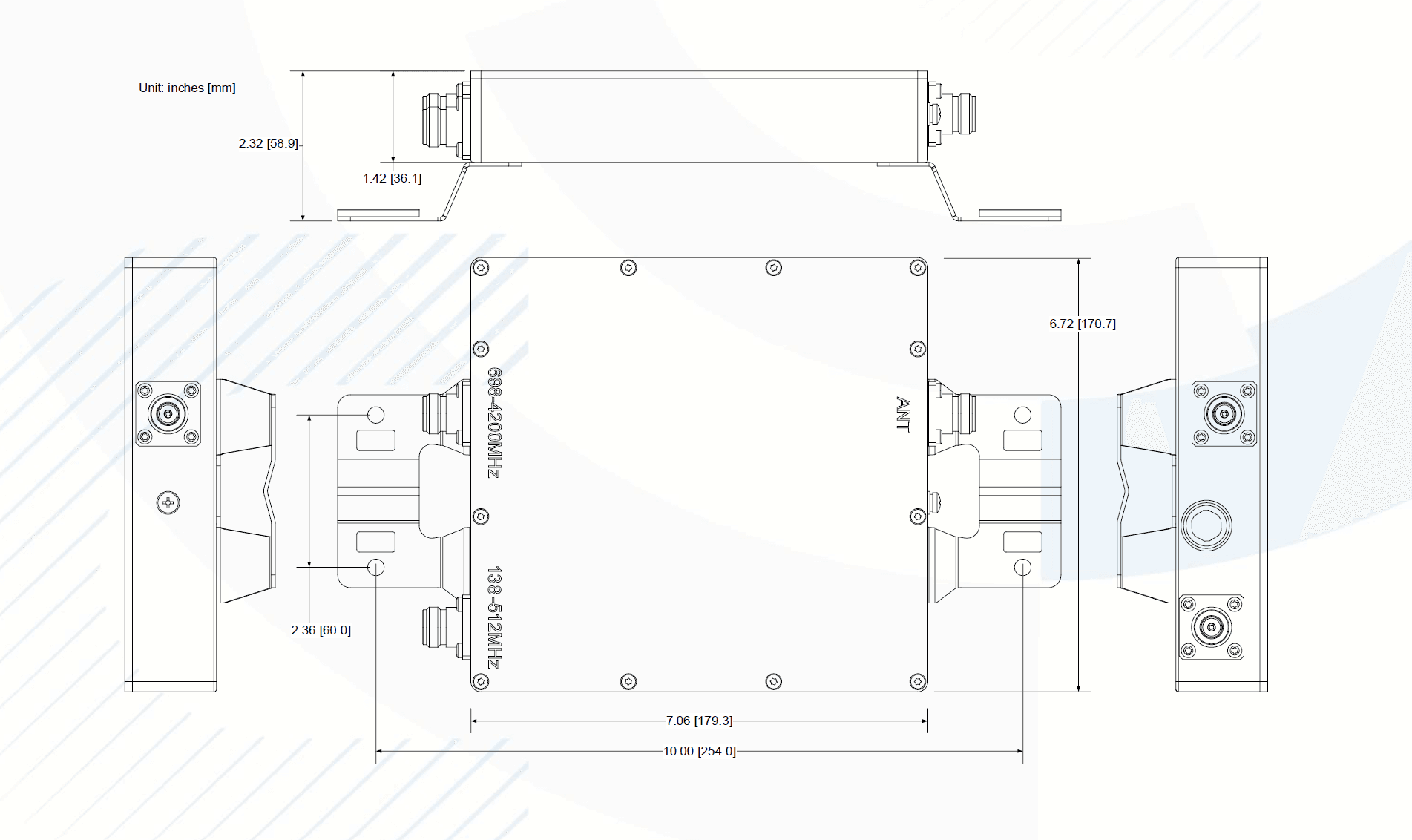

Outline Drawing:
CM-IY2-OAI | ||
| ||
Datasheet: CM-SQ2-OAX DS 1-0-0_2026_0728 |
