OPG-022V21MJUN

617-698/698-960/1695-2700/3300-4200MHz, N-Female



Features:

  • Wideband Frequency Coverage: 617-698/698-960/1695-2700/3300-4200MHz supporting 4G LTE, 5G NR n71, n48 (CBRS), and n77 bands
  • Narrow Beamwidth: Provides highly directional coverage while minimizing interference with adjacent coverage areas
  • High gain: 10/13/22/21dBi respectively
Categories: ,

Description

Electrical Specifications:

 Frequency (MHz) 617-698698-9601695-2700 3300-4200
 Gain (dBi)10132221
 PolarizationVertical or Horizontal
 Beamwidth Horizontal(°)25 ± 521 ± 59 ± 59 ± 5
 Beamwidth Vertical(°)38 ± 532 ± 514 ± 57 ± 5
 Front Back Ratio (dB)≥ 15≥ 18≥ 25≥ 20
 VSWR2.02.21.81.8
 PIM (dBc)-151dBc @ 2x43dBm
 Average Power, max (W)100
 Impedance (ohm)50
 Lightning ProtectionDC Ground



Mechanical Specifications:



 Dimension Diameter,  Height (in/mm)

23.6x35.4 / 600x900

 Weight w/p mounting kit (lb/kg)5.0 / 2.25
 Shipping Dimension(in/mm)26.0x.23.6x7.1 / 660x600x180
 Shipping Weight(lb./kg)10.4 / 4.70
 Diameter of the mounting pole (in/mm)∅1.4 – 2.0 / ∅35 - 50
 Antenna Tilt adjustment (°)±25
 Wind Rating (mph)134
 Connector Type N-Female

 Materials

Feeder: UV rated ABS with aluminum holder; Cable -UV resistant, 1ft long
Bracket, bolts, washers, and nuts: Dacromet-coated steel



Environmental Specifications:



 Application Outdoor
 Operating Temperature-40°C to +60°C
 Relative HumidityUp to 95%
 RoHSCompliant
 EnvironmentIP-67

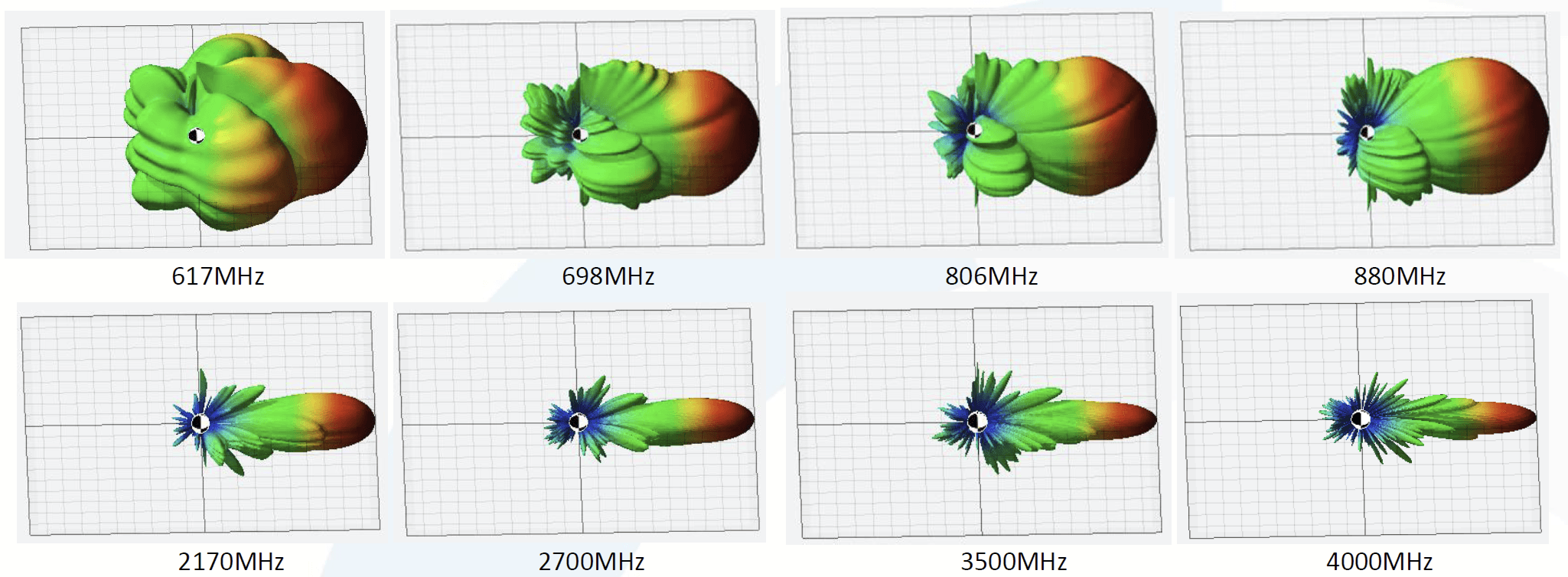

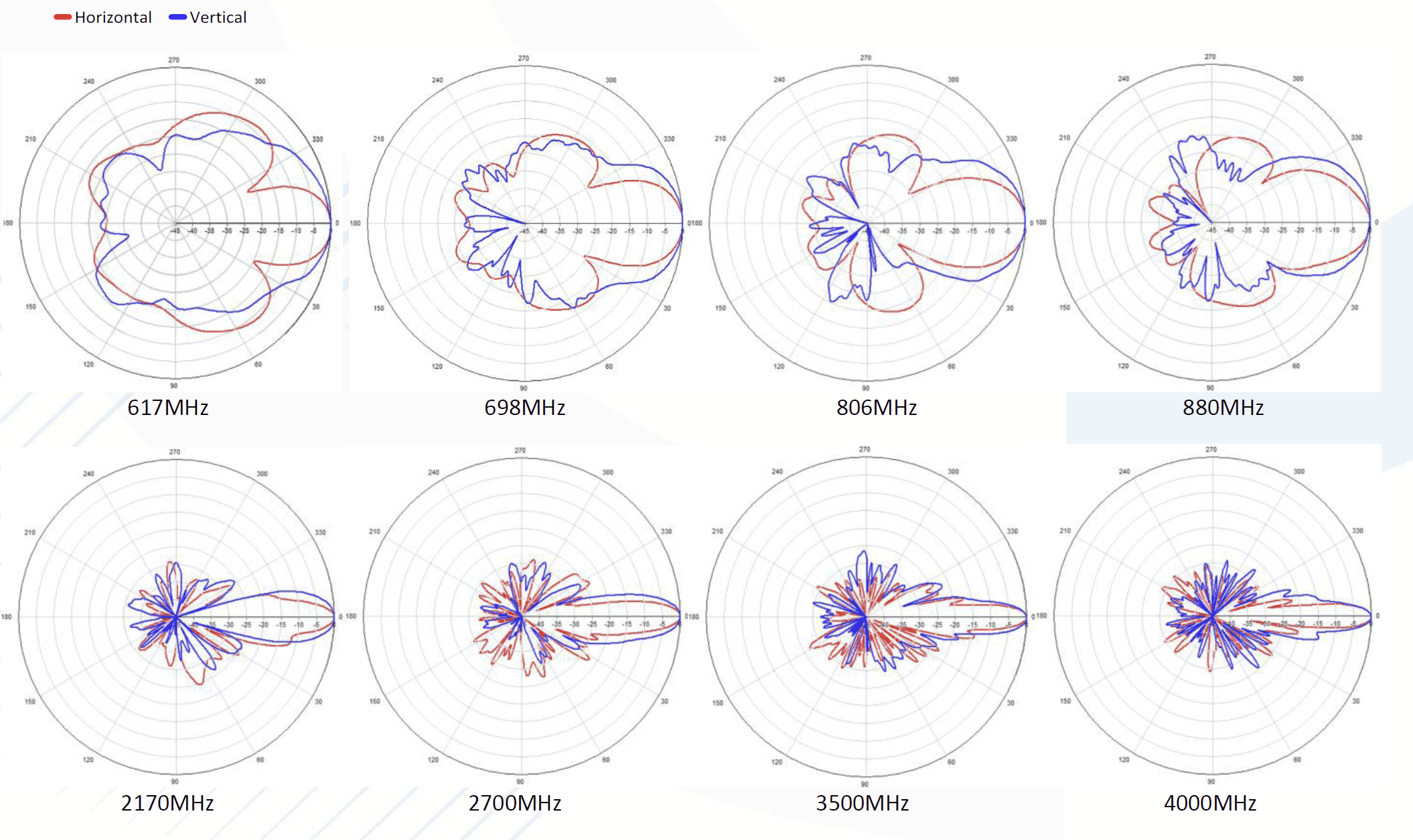

Antenna Pattern:







Outline Drawing:





Datasheet:

OPG-022V21MJUN DS 3-0-0_2026_0930
