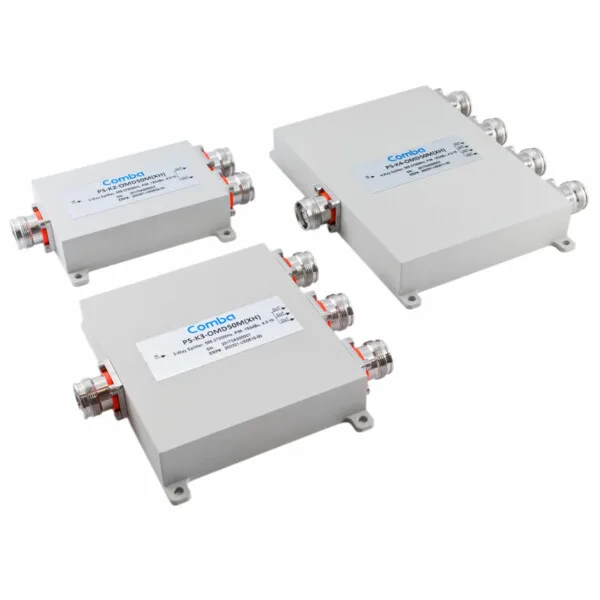

PS-K2-ON50M(XH) / PS-K2-OMD50M(XH) 2-Way

PS-K3-ON50M(XH) / PS-K3-OMD50M(XH) 3-Way

PS-K4-ON50M(XH) / PS-K4-OMD50M(XH) 4-Way

2/3/4 Way, Low PIM(-153dBc), 555-2700MHz,

N Female, 4.3-10 Female, 50W



 Features:

 • Wilkinson power splitter

 • Wideband design covering 555-2700MHz,

 • Suitable for indoor/outdoor environment

 • High reliability and low insertion loss

Description

Electrical Specifications:



 Product Model

PS-K2-ON(OMD)50M(XH)

PS-K3-ON(OMD)50M(XH)

PS-K4-ON(OMD)50M(XH)

 2-Way3-Way4-Way
 Frequency (MHz)555-2700MHz
 Split Loss (dB)3.04.86.0
 Insertion Loss (dB)≤ 0.5≤ 0.7≤ 0.8
 Isolation (dB)≥ 20≥ 18≥ 18
 VSWR @ all port≤ 1.2≤ 1.3≤ 1.3

 PIM (dBc)



≤ -153 @ 2 x 43dBm

 Average Power, max (W) 50
 Impedance (ohm)50



 Mechanical Specifications:



 Dimension Diameter, Height (in/mm)

 PS-K2-ON50M(XH) | PS-K2-OMD50M(XH)

 PS-K3-ON50M(XH) | PS-K3-OMD50M(XH)

 PS-K4-ON50M(XH) | PS-K4-OMD50M(XH)



3.13 x 5.09 x 0.87 / 79.4 x 129.4 x 22.0 | 3.39 x 5.51 x 1.02 / 86.0 x 139.9 x 26.0

5.18 x 5.31 x 0.87 / 131.6 x 135.0 x 22.0 | 5.34 x 6.18 x 1.02 / 135.6 x 157.0 x 26.0

6.59 x 5.68 x 0.87 / 167.4 x 144.2 x 22.0 | 6.85 x 6.14 x 1.02 / 174.0 x 156.0 x 26.0

 Weight (lb/kg)

 PS-K2-ON50M(XH) - PS-K2-OMD50M(XH)

 PS-K3-ON50M(XH) - PS-K3-OMD50M(XH)

 PS-K4-ON50M(XH) - PS-K4-OMD50M(XH)



X.XX / X.XX | 0.98 / 0.45

X.XX / X.XX | 1.65 / 0.75

X.XX / X.XX | 2.43 / 1.10

 Connector Type

N Female



Environmental Specifications:



 ApplicationOutdoor / Indoor
 Operating Temperature-25°C to +85°C
 EnvironmentIP65
 Relative HumidityUp to 100%
 RoHSCompliant


Outline Drawing:





Datasheet:

PS-Kx-OMD50MXH-DS-1-0-3_2021_1006-1

PS-Kx-ON50M(XH) DS 1-0-3_2021_1006
