CO-EHxxNI
Low PIM (-161dBc), 138-4200MHz, N-Female, 300W
Features:
• Wideband operation (138–4200 MHz) supporting Public Safety and C-Band systems
• Available in 5, 7, 10, 13, 15 & 20dB values
• Rugged design for indoor and outdoor environments
• High reliability with low insertion loss
Description
| Product Model | CO-EH05NI | CO-EH07NI | CO-EH10NI | CO-EH13NI | CO-EH15NI | CO-EH20NI |
| Frequency (MHz) | 138-960MHz / 1695-2700/3450-4200MHz | |||||
| Coupling Coefficient (dB) | 5.0 | 7.0 | 10.0 | 13.0 | 15.0 | 20.0 |
Coupling Tolerance (dB) @138-200MHZ @380-550MHz @617-960MHz @1695-2700MHz @3450-4200MHz
|
-5.9 ± 0.7 -4.9 ± 0.5 -4.6 ± 0.5 -4.6 ± 0.7 -5.2 ± 0.6
|
-8.1 ± 0.7 -6.9 ± 0.5 -6.9 ± 0.5 -7.0 ± 1.0 -7.5 ± 1.0
|
-10.3 ± 0.7 -10.0 ± 0.6 -10.0 ± 0.6 -10.0 ± 1.0 -10.0 ± 1.0
|
-13.1 ± 0.7 -12.4 ± 0.5 -12.5 ± 0.6 -13.0 ± 1.0 -13.0 ± 1.0
|
-15.2 ± 0.7 -15.0 ± 0.5 -15.0 ± 0.6 -15.3 ± 1.2 -15.3 ± 1.0
|
-19.6 ± 0.7 -19.5 ± 0.6 -19.5 ± 0.6 -20.5 ± 1.5 -20.5 ± 1.2
|
Coupled Loss (dB). Typical (dB) @138-200MHz @380-550MHz @617-960MHz @1695-2700MHz @3450-4200MHz
|
1.3 1.8 1.9 2.0 1.7
|
0.9 1.1 1.1 1.1 1.0
|
0.4 0.4 0.4 0.4 0.4
|
0.2 0.2 0.2 0.2 0.4
|
0.2 0.2 0.2 0.2 0.2
|
1.3 1.8 1.9 2.0 1.7
|
| VSWR @ input port | ≤ 1.50 | ≤ 1.50 | ≤ 1.50 | ≤ 1.40 | ≤ 1.30 | ≤ 1.30 |
| PIM (dBc) | ≤-161 @ 2 x 43dBm | |||||
| Average Power, max (W) | 300 | |||||
| Peak Power, max (W) | 3000 | |||||
| Impedance (ohm) | 50 | |||||

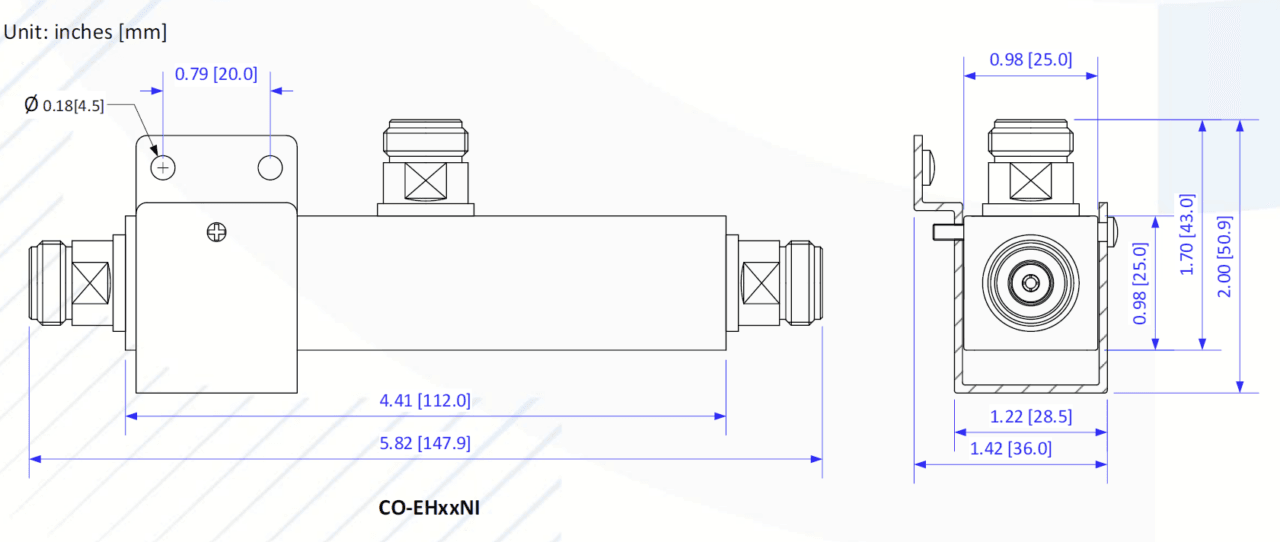

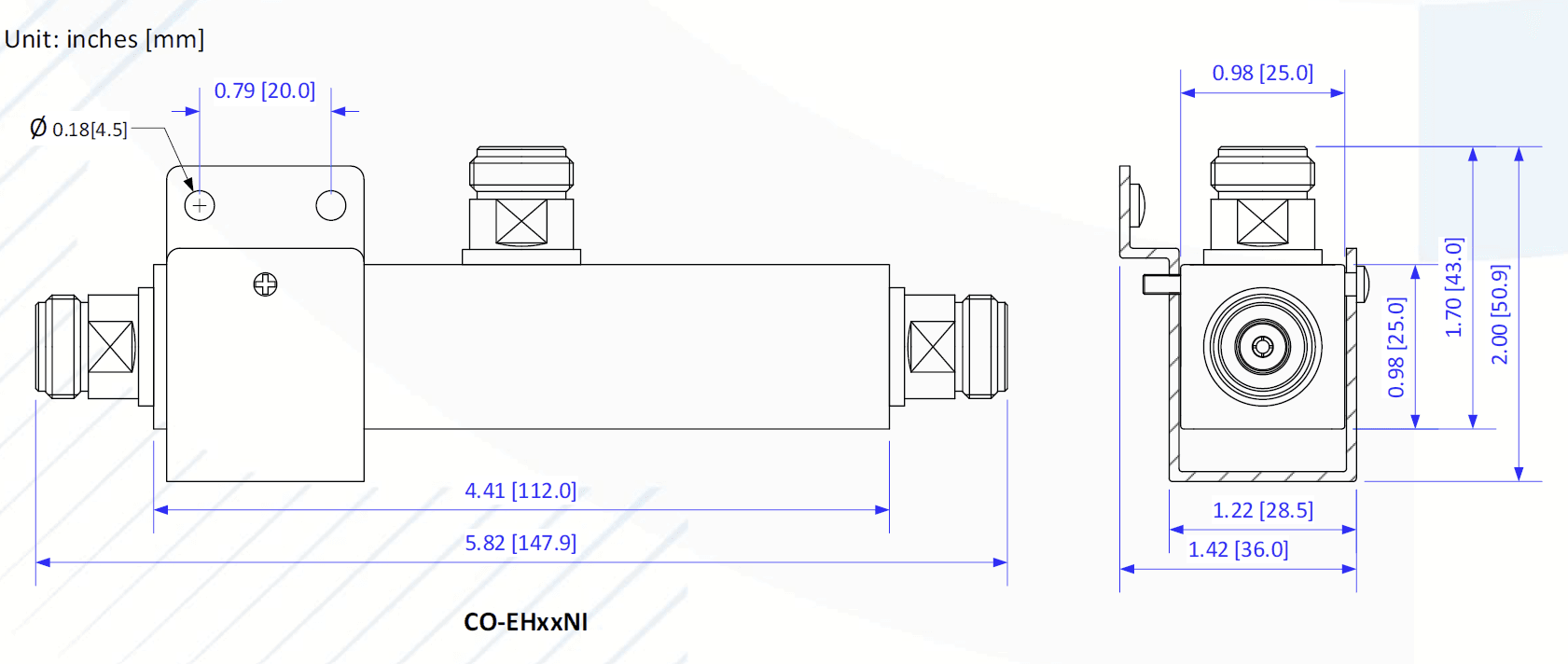

Dimensions (in/mm) | 6.06×2.13×0.98 / 154.0×54.0x25.0 |
| Weight (lb/kg) | 0.51 / 0.23 |
Shipping Dimension (in/mm) | 6.89×3.46×1.50 / 175.0×88.0x38.0 |
Shipping Weight (lb/kg) | 0.66 /0.30 |
Connector Type | N-Female |
| Application | Indoor/Outdoor |
| Operating Temperature | -35°C to +85°C |
| Environment | IP65 |
| Relative Humidity (%) | ≤95 |
| ROHS | Compliant |
