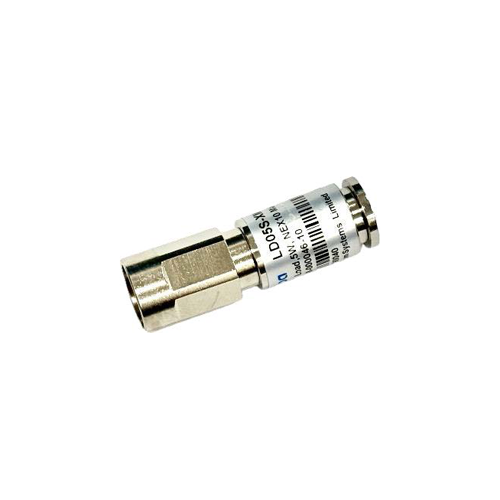

LD05S-XM
Low VSWR, up to 4GHz, NEX10 Male
• Wideband design covering DC-6GHz
– Public Safety Band (VHF, UHF & 700/800MHz)
– 4G/5G Network up to 6GHz
• Suitable for indoor/outdoor environment
Description
Electrical Specifications:
| Product Model | LD05H-NM | |
| Frequency (MHz) | DC-4000 | 4000-6000 |
| VSWR @ all ports | ≤ 1.15 | ≤ 1.25 |
| Average Power, max (W) | 5* | |
| Peak Power, max (W) | 500 | |
| Impedance (ohm) | 50 | |
*Note: Average Power rating is at +25°C and it can be derated over temperature.
Mechanical Specifications:
Dimensions (in/mm) | 1.5x0.5x0.5 / 38.0 x12.0x12.0 |
| Weight (lb/kg) | 0.05 / 0.02 |
Shipping Dimension (in/mm) | 3.9x2.8x2.8 / 100.0x 70.0x20.0 |
Shipping Weight (lb/kg) | 0.09 / 0.04 |
Connector Type | NEX10 Male |
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -45°C to +80°C |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
| Environment | IP67 |

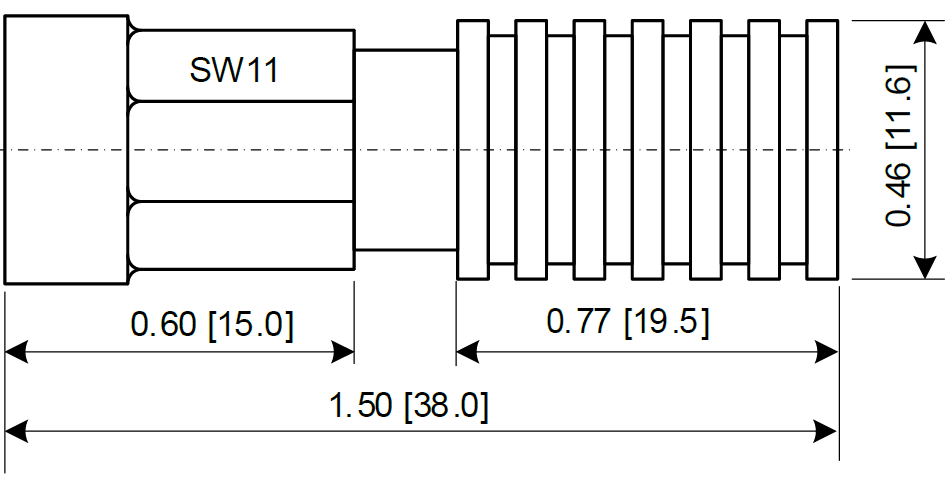

Outline Drawing:
Unit: inches [mm]
| ||
| ||
Datasheet: LD05S-XM DS 1-0-1_2025-0422 |
