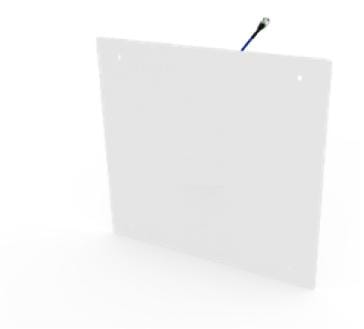

IXL-EYN-H2PRT2
Indoor VHF Low-profile Omni Antenna
VHF Low-Profile, 132-176/340-570/617-960MHz, N-Female, UL-94-V0 rated
Support Comba Antenna Monitoring System
Features:
• VHF omni-Antenna covering 132-176/ 340-570/ 617-960MHz
(VHF/UHF/700/800 Public Safety)
• Low-profile and suitable for indoor application
• Compact and cost-effective design
• Radio Frequency Identification tag preinstalled to
communicated with the CriticalPoint™ Antenna Monitoring System
Description
Electrical Specifications:
| Product Model | IXL-EYN-H2PRT2 | ||
| Frequency (MHz) | 132-176 | 340-570 | 617-960 |
| Gain (dBi) | 0.5 | 1.2 | 3.5 |
| Polarization | Horizontal | ||
| Beamwidth Horizontal(°) | 360 | ||
| VSWR | 1.8 | 1.8 | 1.5 |
| Average Power, max (W) | 50 | ||
| Impedance (ohm) | 50 | ||
Mechanical Specifications:
Dimension Diameter, Height (mm/in) | 15.16x14.09x0.06 / 385.0x358.0x1.6 |
| Weight (lb/kg) | 1.17 / 0.53 |
| Shipping Dimension (in/mm) | 15.94x14.96x1.77 / 405.0x380.0x45.0 |
| Shipping Weight | 1.81 / 0.82 |
| Material & Color | White |
| Flammability | UL-94-V0 |
| Mounting/Connector Type* | Ceil Mount, N-female |
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -55°C to +70°C |
| Humidity | Up to 95% |
| RoHS | Compliant |
| Environment | IP-54* |
*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated.”
*Note: Not recommended for use with metal J boxes directly. Plastic or fiberglass J boxes are acceptable.
*Note: For metal J box installation, recommended to install the antenna with MT-ND-EY as spacer.

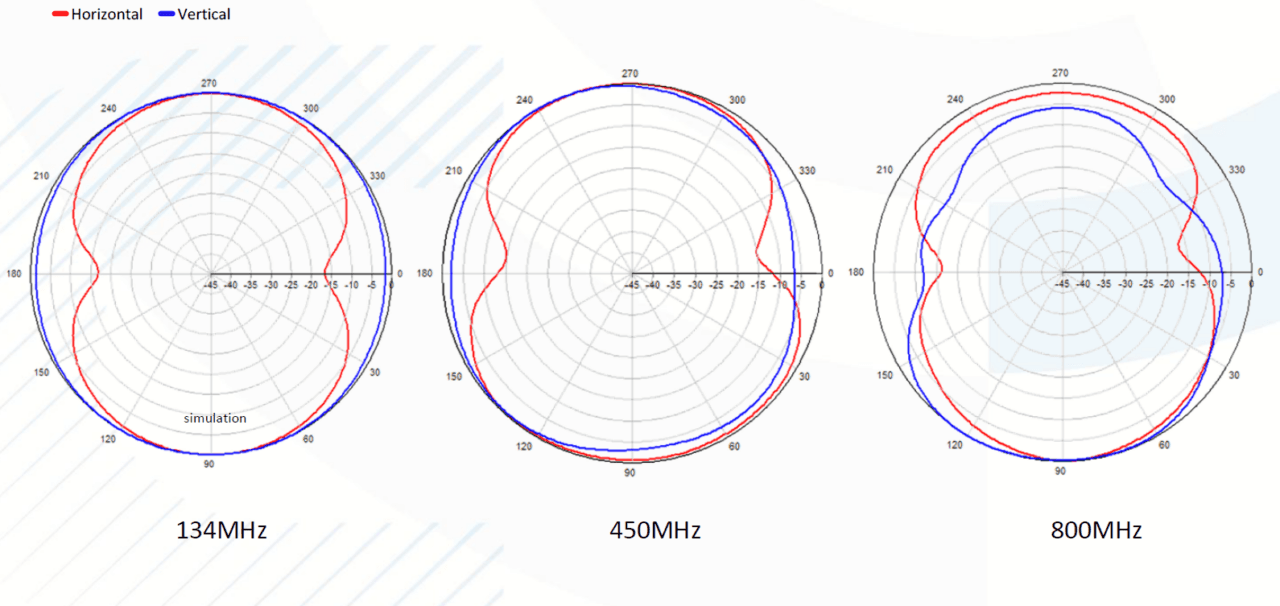

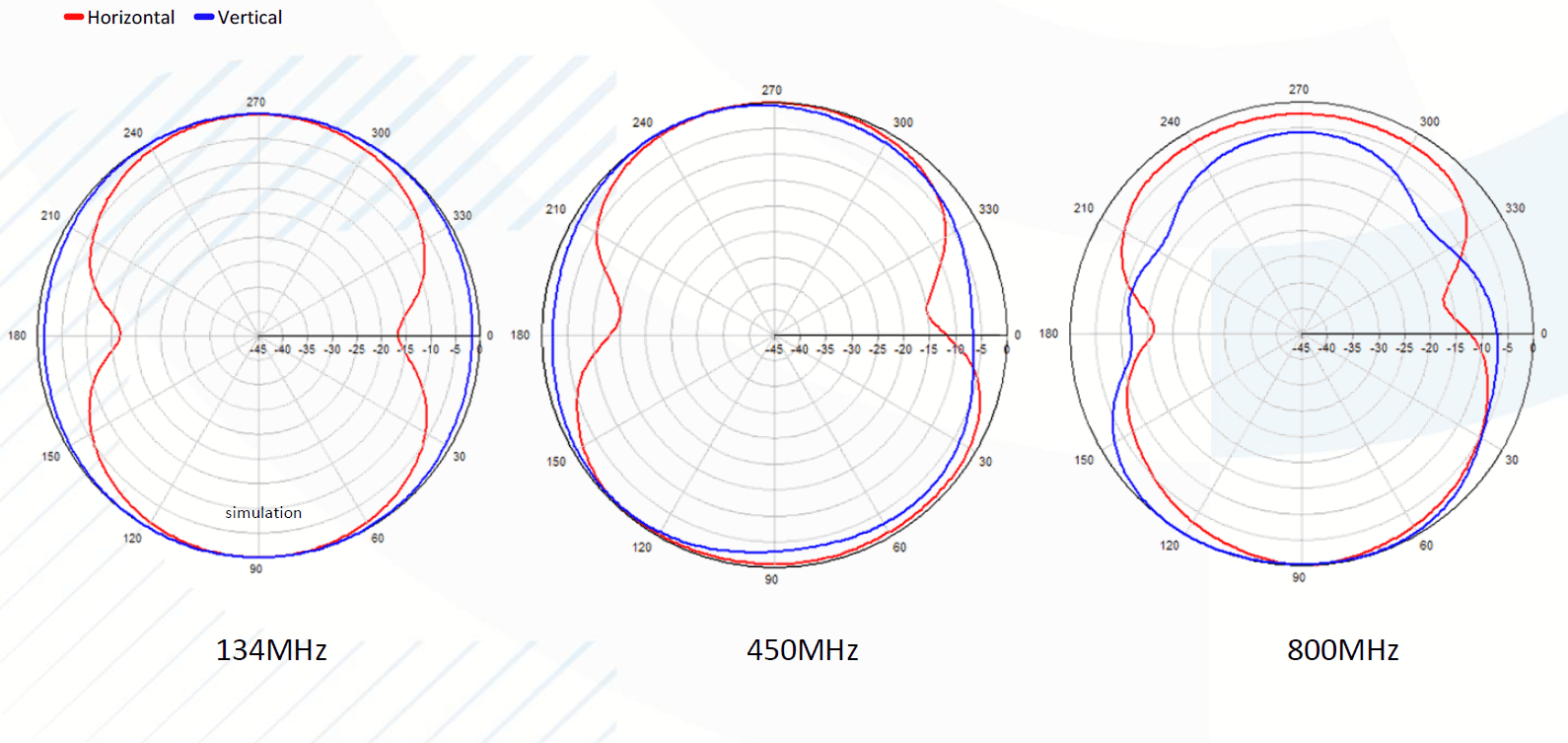

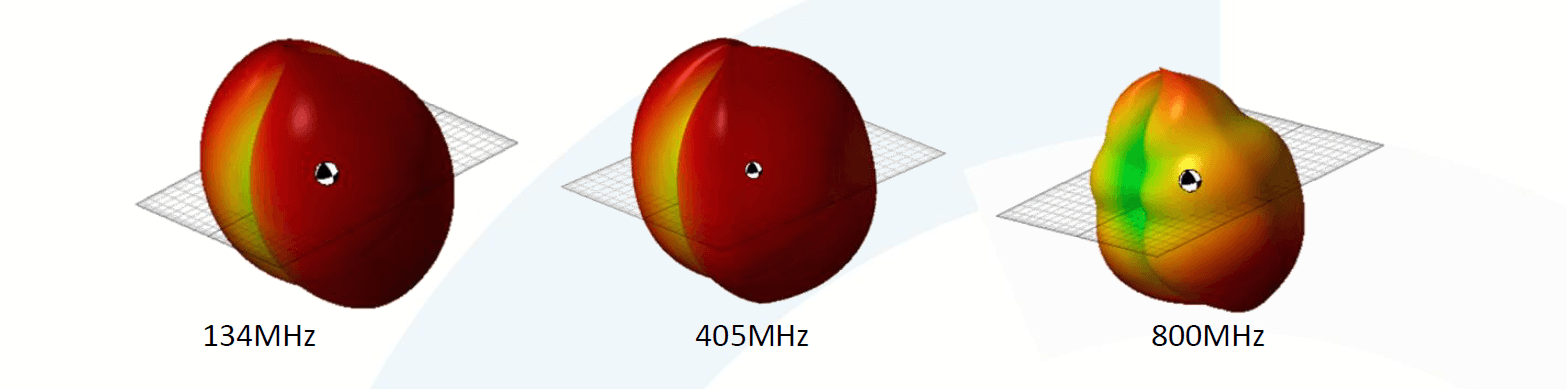

Antenna Pattern:
|

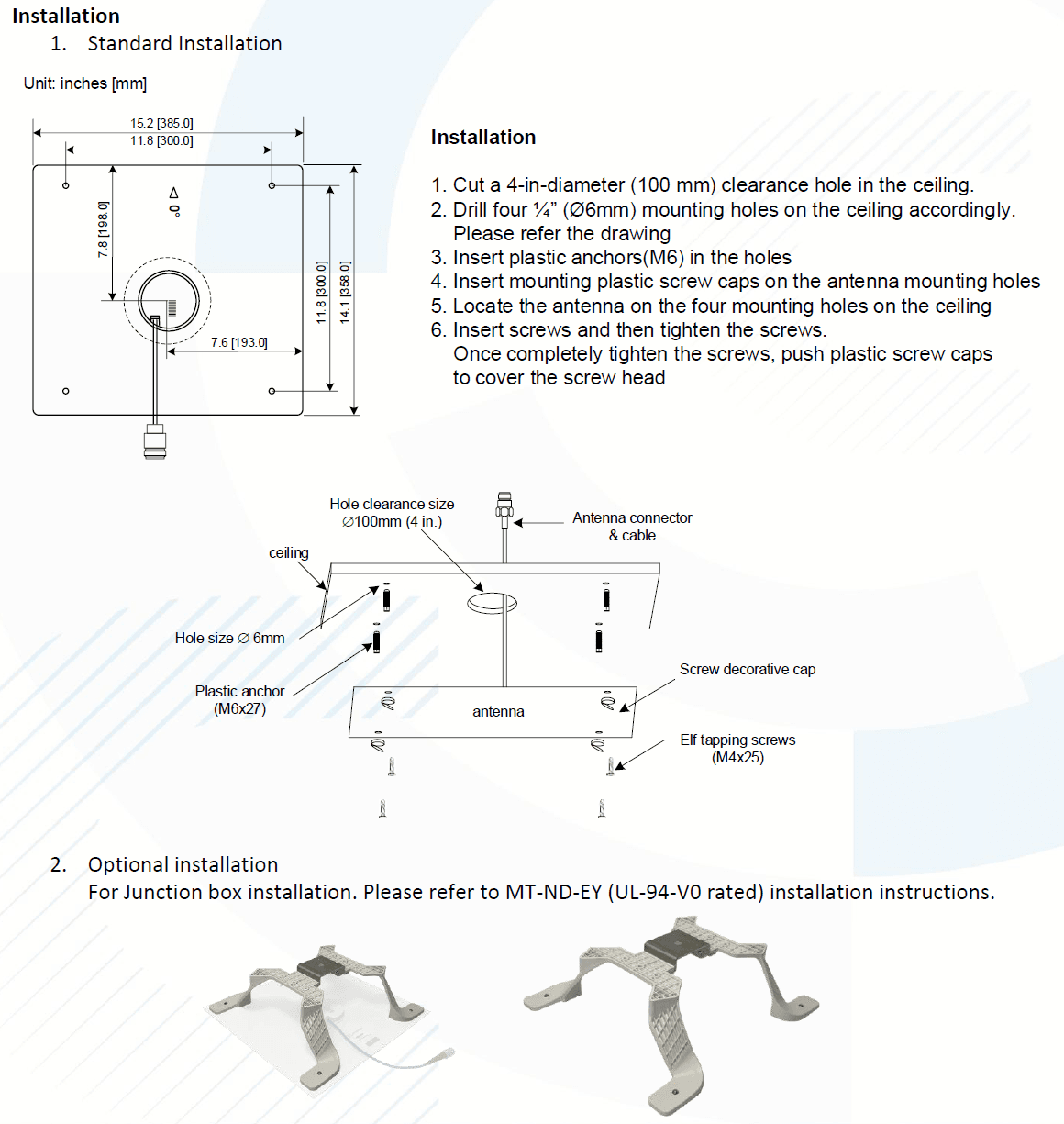

Outline Drawing & Installation Instructions:
| ||
Datasheet: IXL-EYN-H2PRT2 DS 1-0-2_2025_092517r
|
