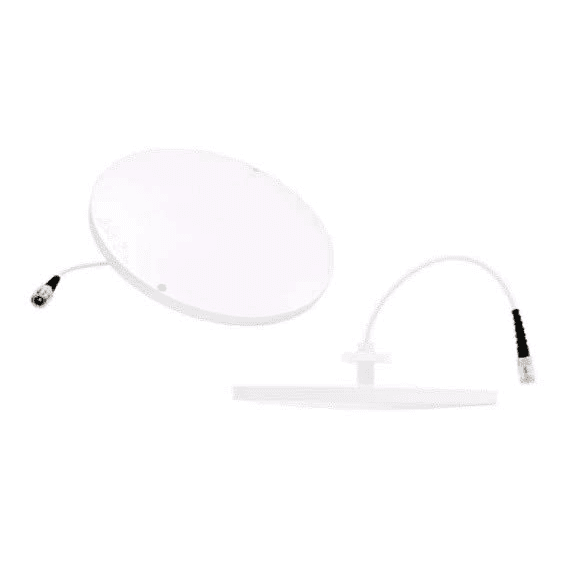

Indoor Wide Band Omni Antenna
380-2700MHz, N-Female, Low Profile, Supports Comba Antenna Mounting System
Features:
• Omni-Directional Wideband Antenna (380–2700 MHz)
• Covers UHF/700/ 800MHz Public Safety Band and Cellular networks
• Low-profile form factor designed for indoor applications
• Compact ceiling-mount design for discreet installation and cost-effectiveness
• Meets UL-94-V0 flammability rating for enhanced safety compliance
• Radio Frequency Identification tag preinstalled to
communicated with the CriticalPoint™ Antenna Monitoring System
Description
Electrical Specifications:
| Product Model | IXL-YJN-H4PURT2 | ||
| Frequency (MHz) | 380-520 | 698-960 | 1695-2700 |
| Gain (dBi) | 3.4 ± 1.0 | 3.5 ± 1.0 | 4.5 ± 1.0 |
| Polarization | Horizontal | ||
| Beamwidth Horizontal(°) | 360 | ||
| VSWR | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 |
| Average Power, max (W) | 50 | ||
| Impedance (ohm) | 50 | ||
Mechanical Specifications:
Dimension Diameter, Height (mm/in) | Ø 10.5x 0.7 / Ø 266 x 18 |
| Weight (lb/kg) | 0.9 / 0.4 |
| Shipping Dimension (in/mm) | 11.0x10.8x3.9 / 280x275x100 |
| Shipping Weight | 1.6/ 0.7 |
| Radome Material & Color | ABS, White, RAL9003 |
| Flammability | UL-94-V0 |
| Mounting/Connector Type* | Ceil Mount, N-female |
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -55°C to +70°C |
| Humidity | Up to 95% |
| RoHS | Compliant |
| Environment | IP-54* |
*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated”.
*Note: Not recommended for use with metal J boxes. Plastic or fiberglass J boxes are acceptable.

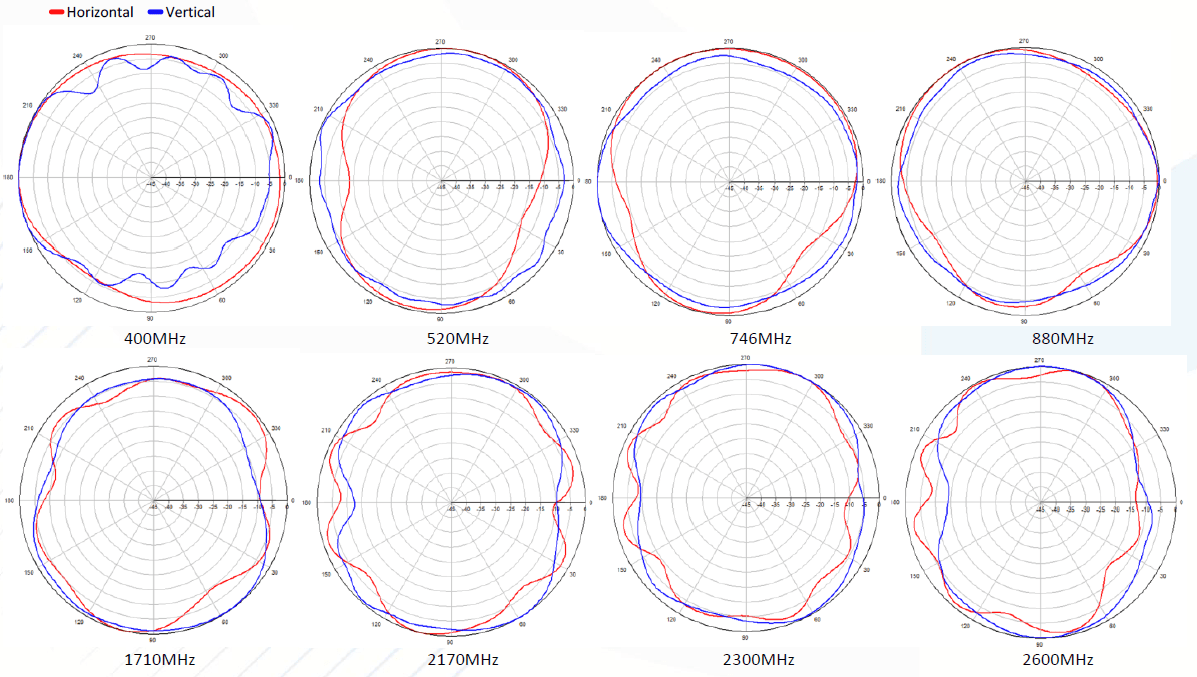

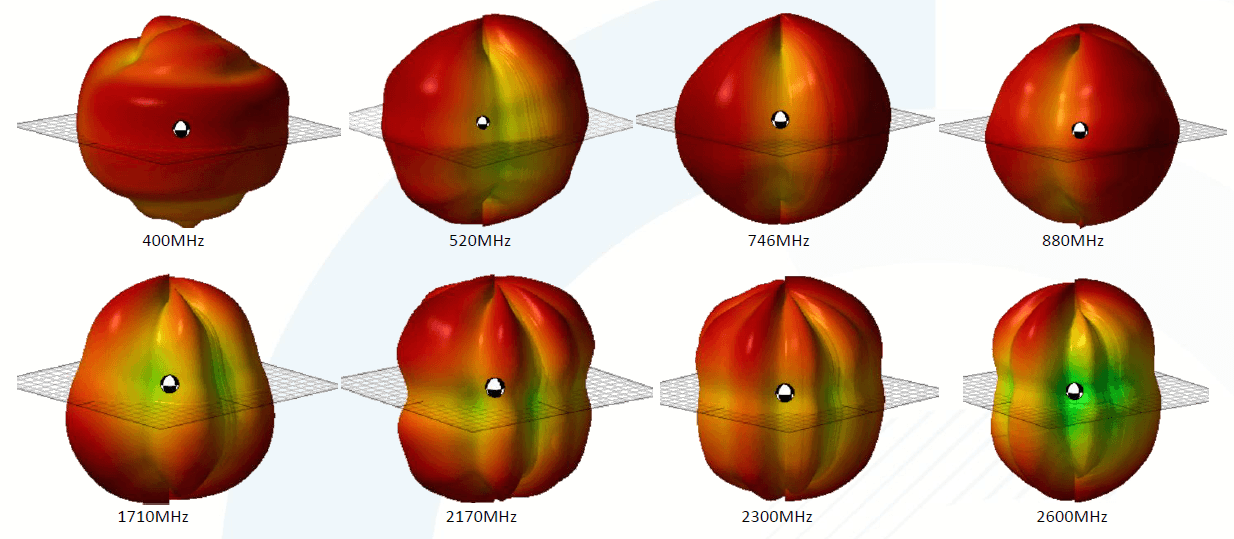

Antenna Pattern:
|

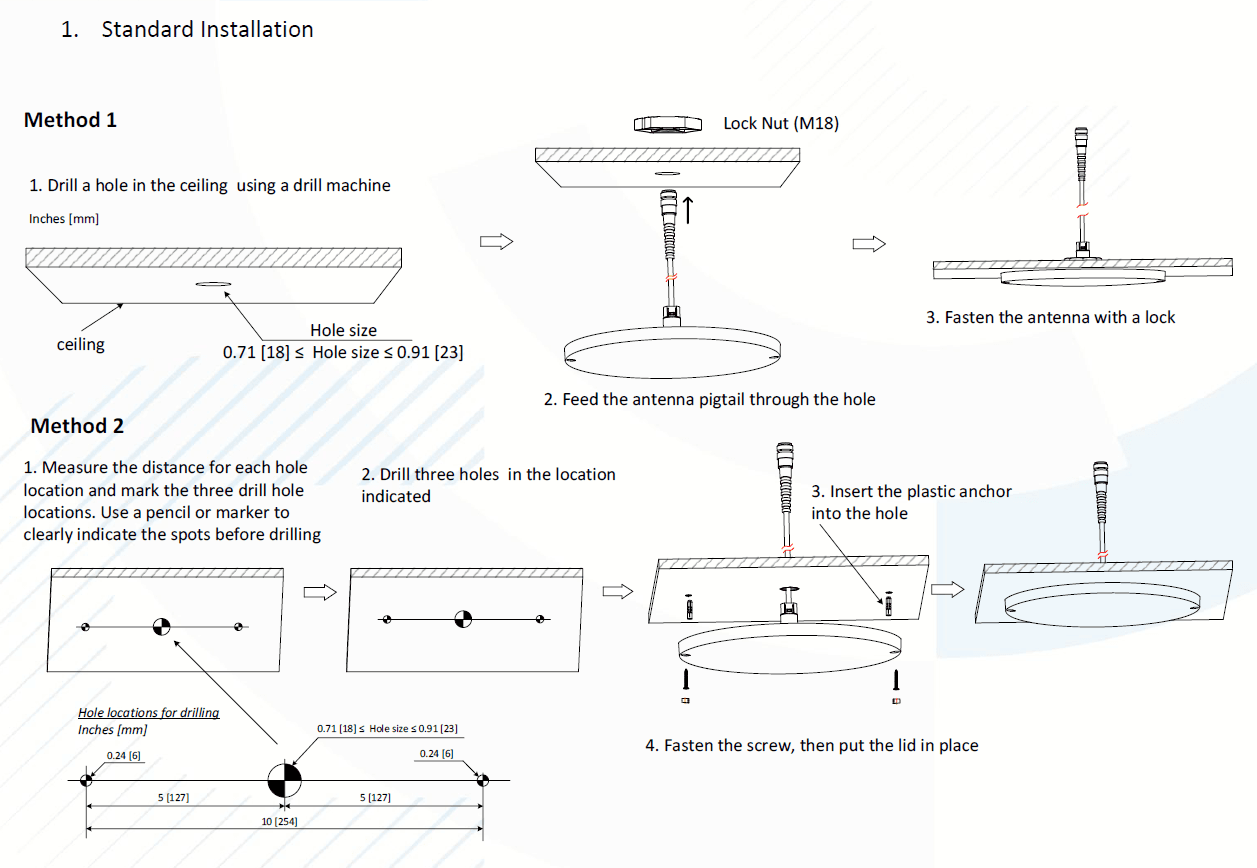

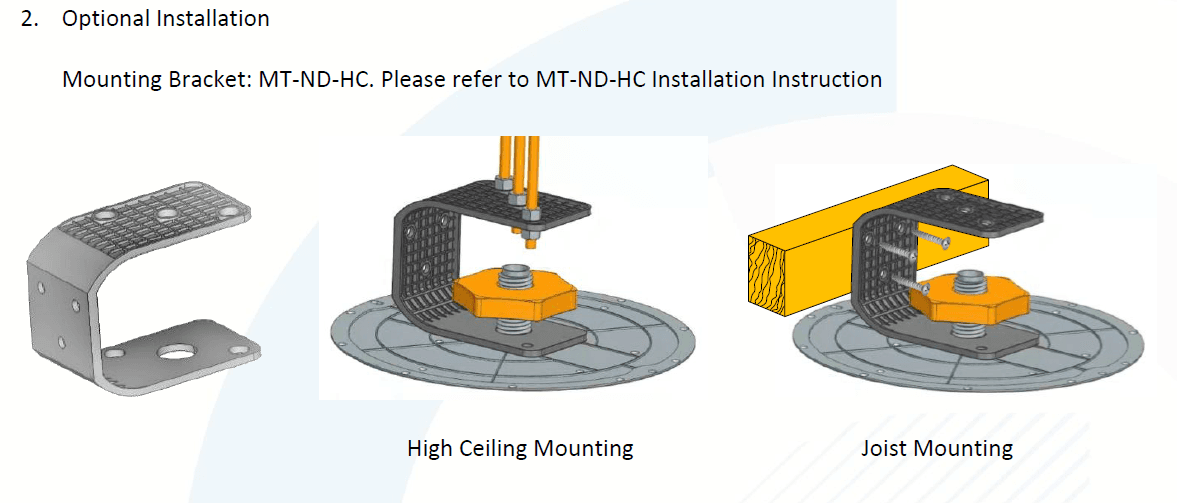

Outline Drawing & Installation Instructions:
| ||
Datasheet: IXL-YJN-H4PURT2 DS 1-0-1_2025_0923
|
