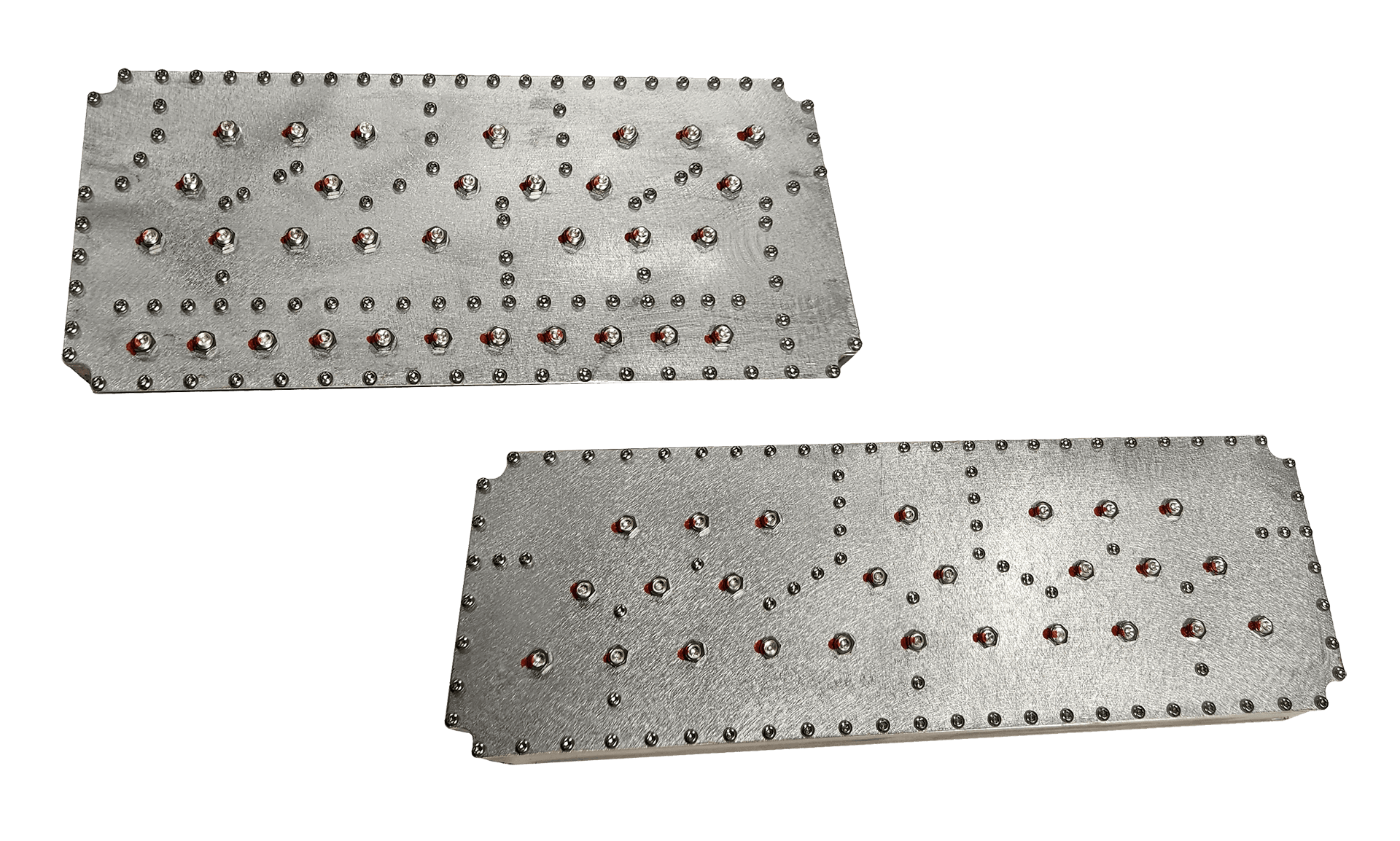

COMFLEX NG Band Pass Filters
The ComFlex NG system offers various band pass filters solutions.
Take a look at all the filters available below to see their specifications.
Description
Please select one of the tabs above to see the different band pass filters for ComFlex NG

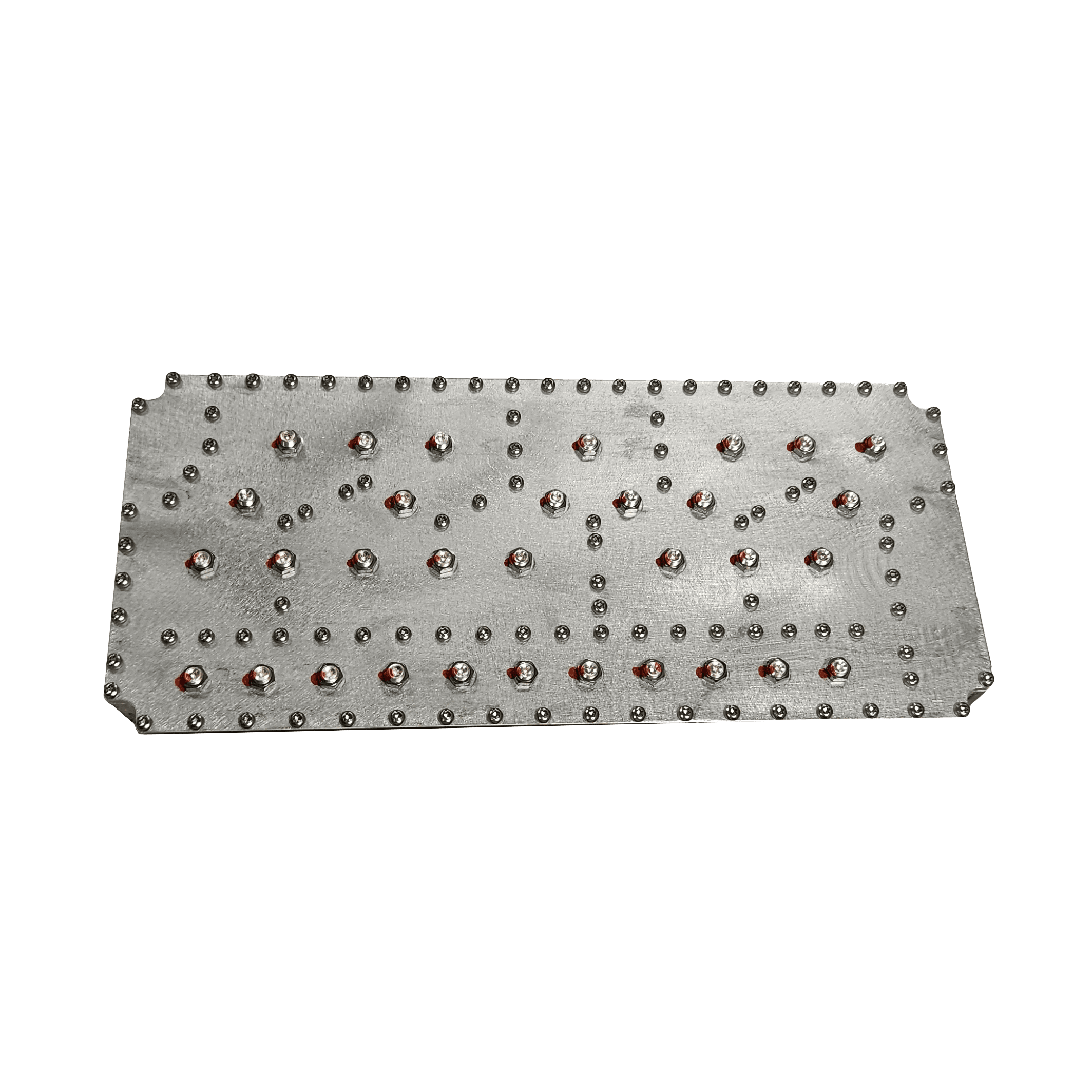

Cellular 700 MHz Band Pass Filter
MRU-FP-7
MRU-FP-7
Electrical Specifications:
ComFlex NG MRU-FP-7 Datasheet: Download
| Frequency (MHz) | 698-716 MHz & 776-798 |
| Insertion Loss | ≤ 5.5 |
| Rejection (dB) (769-775 MHz) | ≥ 65 |
| Return Loss (dB) | ≥ 18 |
| Average Power, max (W) | 50 |
| Impedance (ohm) | 50 |
Environmental Specifications:
| Dimension (in) | 11.8x5.3x2.9 (without connector) |
| Weight (lb.) | 4.48 |
| Shipping Dimension (in) | 17.32x14.57x8.86 |
| Shipping Weight (lb.) | 7.01 |
| Operating Temperature (°C) | -20 to +65 |
| Environment | Indoor |
| Connector | SMA-type Female |
| RoHS | Compliant |
ComFlex NG MRU-FP-7 Datasheet: Download

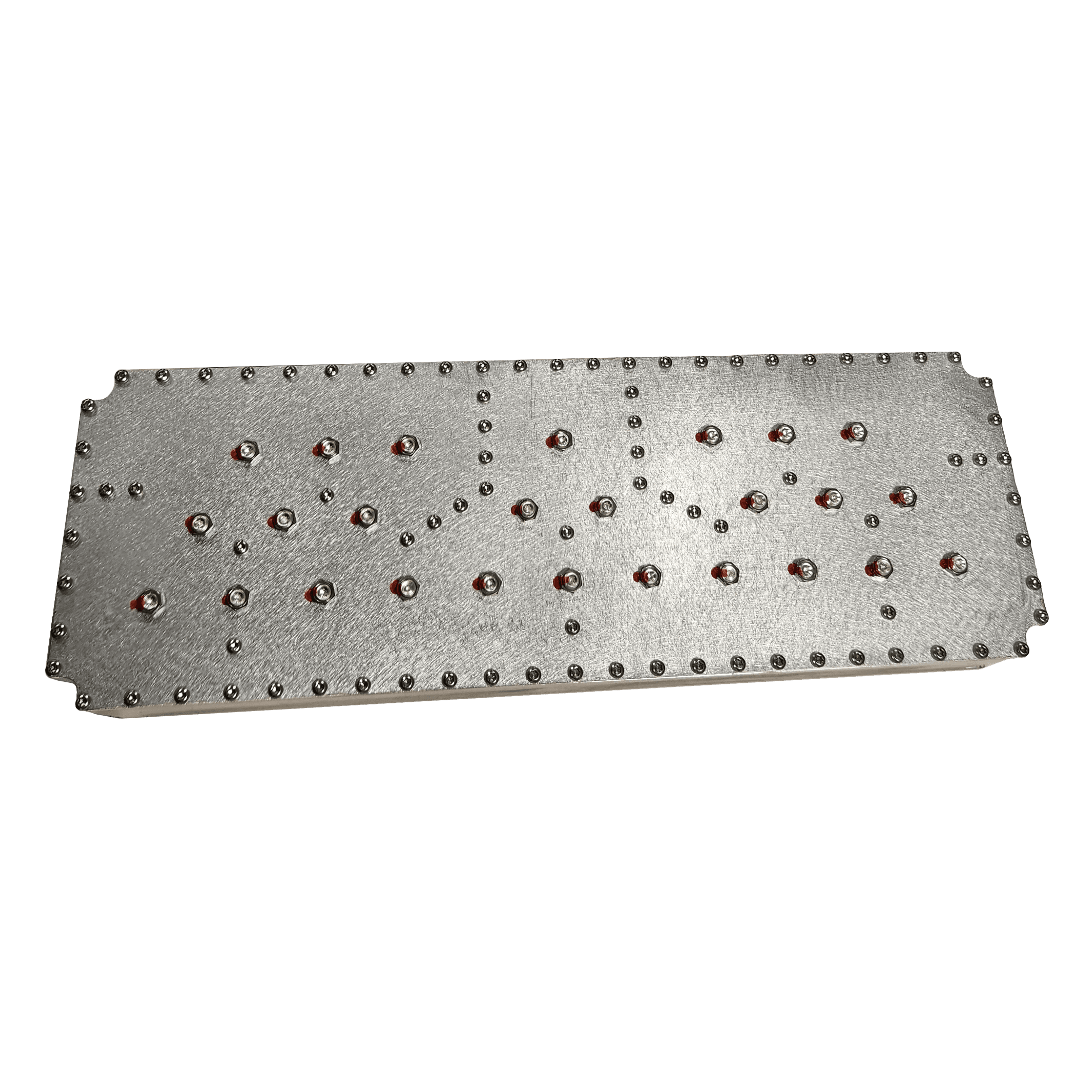

Cellular 800 MHz Band Pass Filter
MRU-FP-8
Electrical Specifications:
| Frequency (MHz) | 817-849 |
| Insertion Loss | ≤ 4 |
| Rejection (dB) (769-775 MHz) | ≥ 85 |
| Return Loss (dB) | ≥ 18 |
| Average Power, max (W) | 50 |
| Impedance (ohm) | 50 |
Environmental Specifications:
| Dimension (in) | 14.4x4.7x2.9 (without connector) |
| Weight (lb.) | 4.48 |
| Shipping Dimension (in) | 17.32x14.57x8.86 |
| Shipping Weight (lb.) | 7.01 |
| Operating Temperature (°C) | -20 to +65 |
| Environment | Indoor |
| Connector | SMA-type Female |
| RoHS | Compliant |
ComFlex NG MRU-FP-8 Datasheet: Download
