COMFLEX NG Band Pass Combiners & Filters
The ComFlex NG system offers various combiners & band pass filters solutions.
Take a look at all the filters/combiners available below to see their specifications.
Description
Please select one of the tabs above to see the different band pass filters & combiners for ComFlex NG

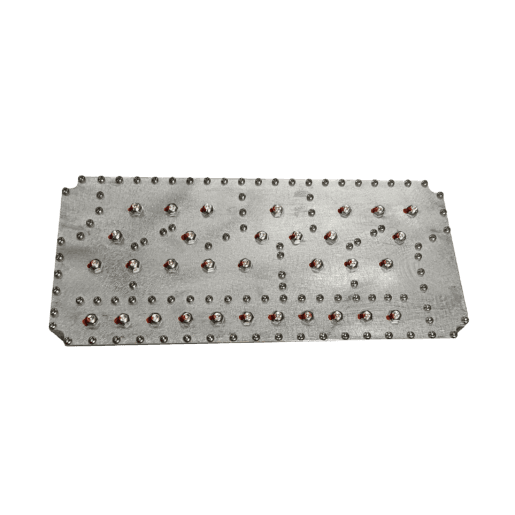

MRU-FP-7
| Frequency (MHz) | 698-716 MHz & 776-798 |
| Insertion Loss | ≤ 5.5 |
| Rejection (dB) (769-775 MHz) | ≥ 65 |
| Return Loss (dB) | ≥ 18 |
| Average Power, max (W) | 50 |
| Impedance (ohm) | 50 |
Environmental Specifications:
| Dimension (in) | 11.8x5.3x2.9 (without connector) |
| Weight (lb.) | 4.48 |
| Shipping Dimension (in) | 17.32x14.57x8.86 |
| Shipping Weight (lb.) | 7.01 |
| Operating Temperature (°C) | -20 to +65 |
| Environment | Indoor |
| Connector | SMA-type Female |
| RoHS | Compliant |
ComFlex NG MRU-FP-7 Datasheet: Download
Cellular 800 MHz Band Pass Filter

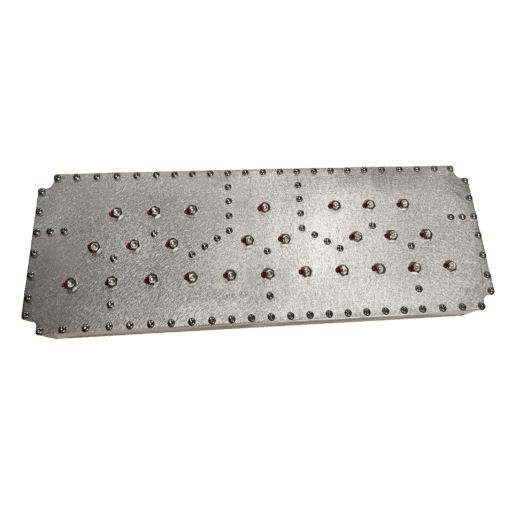

MRU-FP-8
| Frequency (MHz) | 817-849 |
| Insertion Loss | ≤ 4 |
| Rejection (dB) (769-775 MHz) | ≥ 85 |
| Return Loss (dB) | ≥ 18 |
| Average Power, max (W) | 50 |
| Impedance (ohm) | 50 |
Environmental Specifications:
| Dimension (in) | 14.4x4.7x2.9 (without connector) |
| Weight (lb.) | 4.48 |
| Shipping Dimension (in) | 17.32x14.57x8.86 |
| Shipping Weight (lb.) | 7.01 |
| Operating Temperature (°C) | -20 to +65 |
| Environment | Indoor |
| Connector | SMA-type Female |
| RoHS | Compliant |
ComFlex NG MRU-FP-8 Datasheet: Download

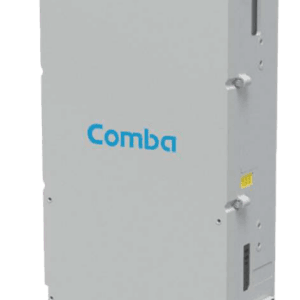

HRU-FDD-COMB

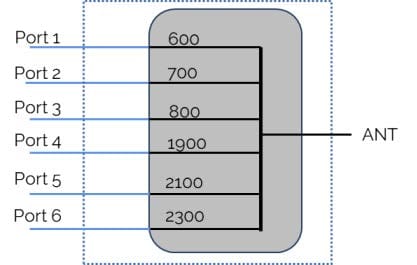

Features: • 6-in/1-out multiplexer for SISO • 6 input ports for low, medium radio unit connection • 1 output port for coverage antenna connection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical Characteristics:
Mechanical Specifications:
Datasheet: ComFlex NG HRU-FDD DS 0-0-4
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
