CN-NM-5D / CN-NF-5D

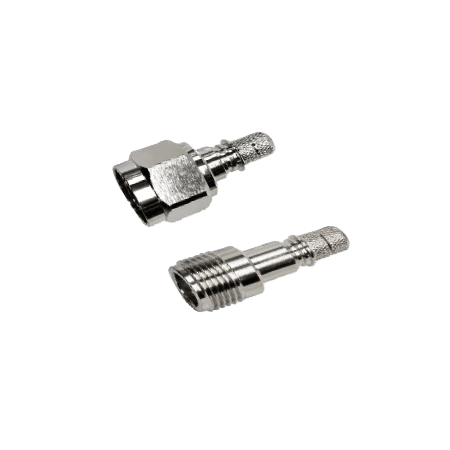

• N-type connectors for CS-BM500, 0.3” Coaxial Cable
Description
Electrical Specifications:
| Product Model | CN-NM-5D | CN-NF-5D |
| Connector Type | N-Male | N-Female |
| Frequency (MHz) | DC-6000 | |
| Impedance (ohm) | 50.0 | |
| Inner Conductor Contact Resistance (mΩ) ≤1 | ≤1 | |
| Outer Conductor Contact Resistance (mΩ) | ≤1 | |
| Insulation Resistance (MΩ) | ≥5000 | |
| Insulation Withstanding Voltage (V) | ≥1500 | |
| Insert Loss (dB) | ≤0.05√f(GHz) | |
| VSWR | DC-3.0GHz | ≤ 1.20 3.0-3.7GHz | ≤ 1.20 3.7-6.0GHz | ≤ 1.25 | |
| PIM (dBc) | ≤ -161 @ 2x 43dBm (@900MHz, 2x43dBm) | |
Mechanical Specifications:
Dimension (in/ mm) | 1.46×0.83×0.83 / 37.0×21.0x21.0 |
| Weight | 0.07 / 0.03 |
| Shipping Dimension (in/mm) | 2.76×1.57×1.57 / 70.0×40.0x40.0 |
| Shipping Weight (lb/kg) | 0.09 / 0.04 |
| Interface Durability, number of cycles | ≥ 500 |
| Connector Type | N-type |
| Outer Conductor Material | Brass, Ni Plated |
| Inner Conductor Material | Brass, Ag Plated |
| Insulator Material | PTFE |
| Other | Brass, Ni Plated |
Environmental Specifications:
| Application | Indoor/Outdoor |
| Operating Temperature | -40℃ to +85℃ |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
| Related Products | CS-BM500 Twin Coax Cable |

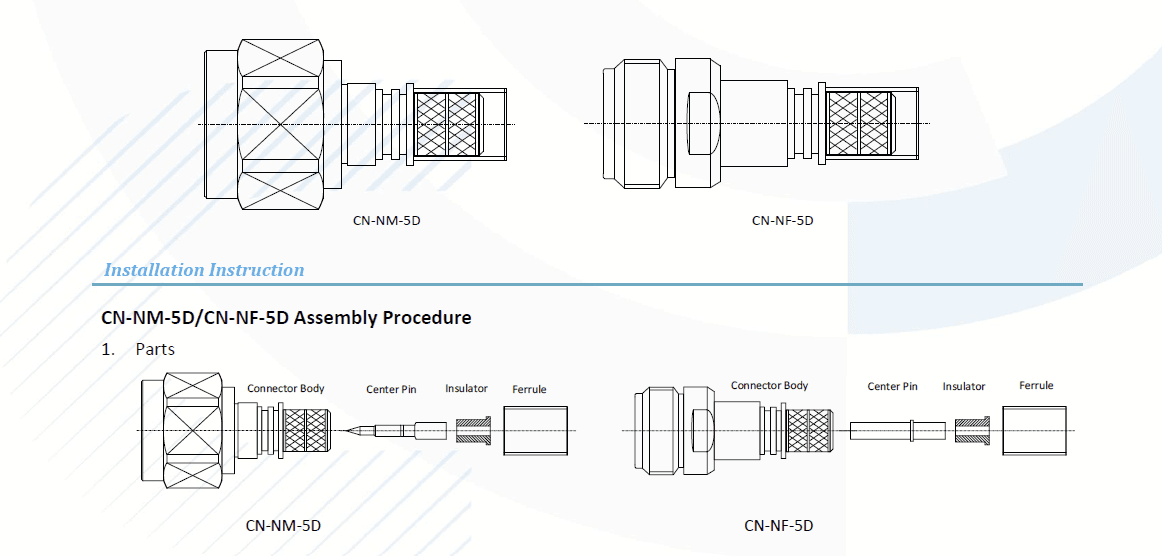

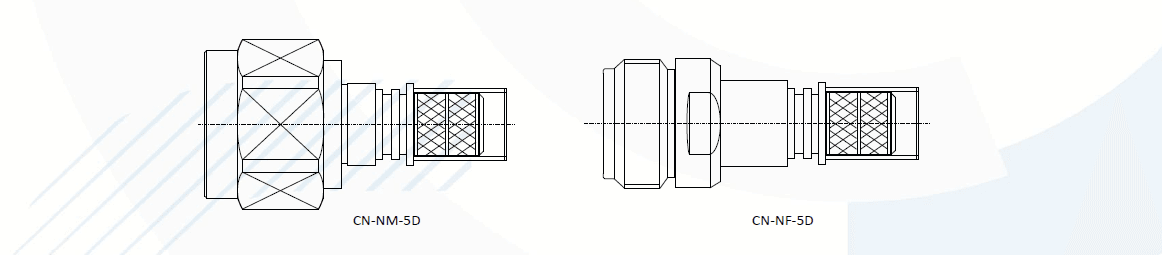

Outline Drawing:
| ||
| Datasheet: CN-xx-5D_DS 1-0-0_2026_0819 |

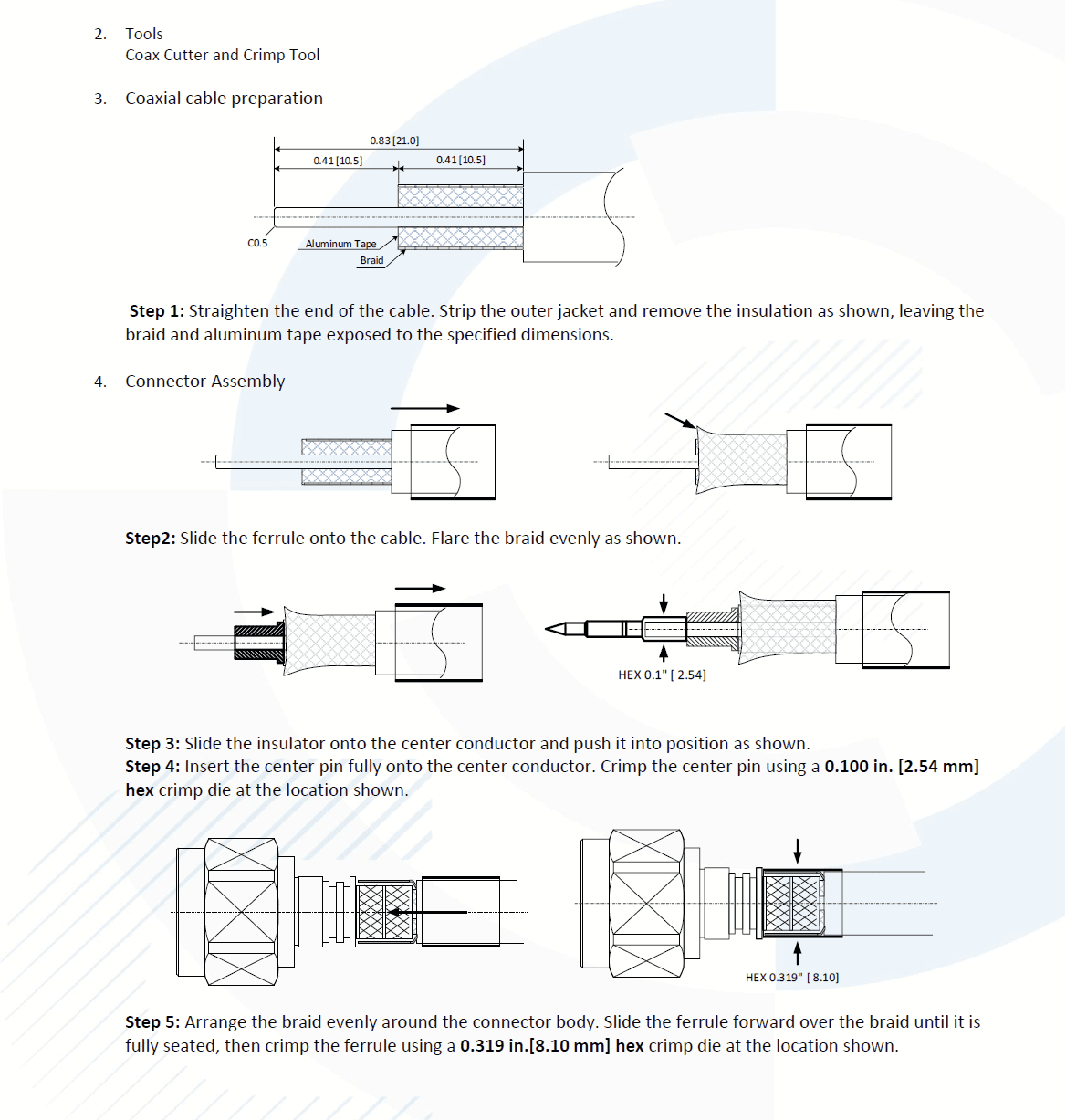

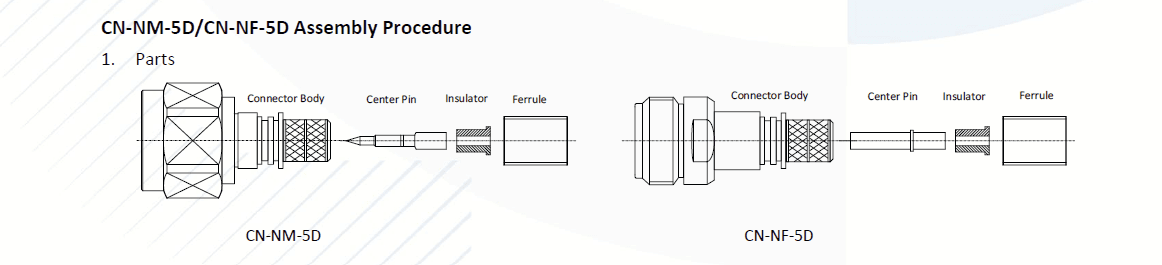

Installation Instructions:
|
