CS-F12PAR / CS-F12PAW

CS-F12PAR500 / CS-F12PAW500

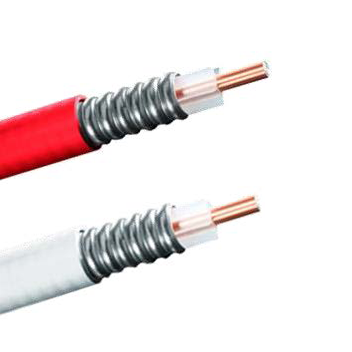

• 1/2” Aluminum Plenum Rated Coax

• Super-Flexible Air Dielectric Coax, Aluminum Plenum Rated Red & White Jacket



Category:

Description




Electrical Specifications:



 Product Model

CS-F12PAR500

CS-F12PAW500

CS-F12PAR

CS-F12PAW

 Size500 ft/spool1,000 ft/spool
 FrequencyDC-6000
 Impedance (ohm)50.0 ± 1.0
 Capacitance79.7 (pF/m), 23.0 (pF/ft)
 Inductance0.19(μH/m), 0.058 (μH/ft)
 Propagation Velocity (%)88
 DC Breakdown Voltage (KV)4.0
 Insulation Resistance (MΩ)> 5,000
 Peak Power Rating (kW)40.0
 Cut-off Frequency (GHz)8.8

 VSWR. typical

555-2200MHz
2300-2700MHz
3300-4200MHz
4400-6000MHz



1.15
1.15
1.20
1.25





Mechanical Specifications:



 Diameter Over Inner Conductor (in/mm)

0.189 / 4.80

 Diameter Over Insulation (in/mm)0.461 / 11.70
 Diameter Over Outer Conductor (in/mm)0.545 / 13.85
 Diameter Over Jacket (in/mm)0.618 / 15.70
 Minimum Bending Radius-Single (in/mm)2.5 / 63.5
 Minimum Bending Radius-Multiple (in/mm)5.0 / 127

 Shipping Dimension (in/m)               500ft Spool
                                                             1,000ft Spool

21.7x 21.7×16.8 / 550x550x426

23.6×23.6×21.1 / 600x600x536

 Shipping Weight(lb./kg)                     500ft Spool
                                                             1,000ft Spool		90.4 / 41
167.6 / 76



Material:



 Inner ConductorCopper Clad Aluminum Wire
 InsulationPE Spline
 Outer ConductorRing Corrugated Copper
 JacketPVC, Red & White Plenum Rated Jacket
 Hanger BlockHB-F12D (supports 3/8” or M10 threaded rod)
 Prep ToolAP-F12
 Associated ConnectorsCN-NM-F12: N-Male / CN-NF-F12: N-Female
CN-4M-F12: 4.3-10-Male / CN-4F-F12: 4.3-10-Female



Environmental Specifications:



 ApplicationIndoor/Outdoor
 Storage Temperature-25°C to +70°C
 Operating Temperature-25°C to +70°C
 Installation Temperature-20°C to +60°C



Compliance & Certification:



 Certification

Plenum Rated

CMP ETL UL-444/CSA C22.2NO214

 RoHSCompliant

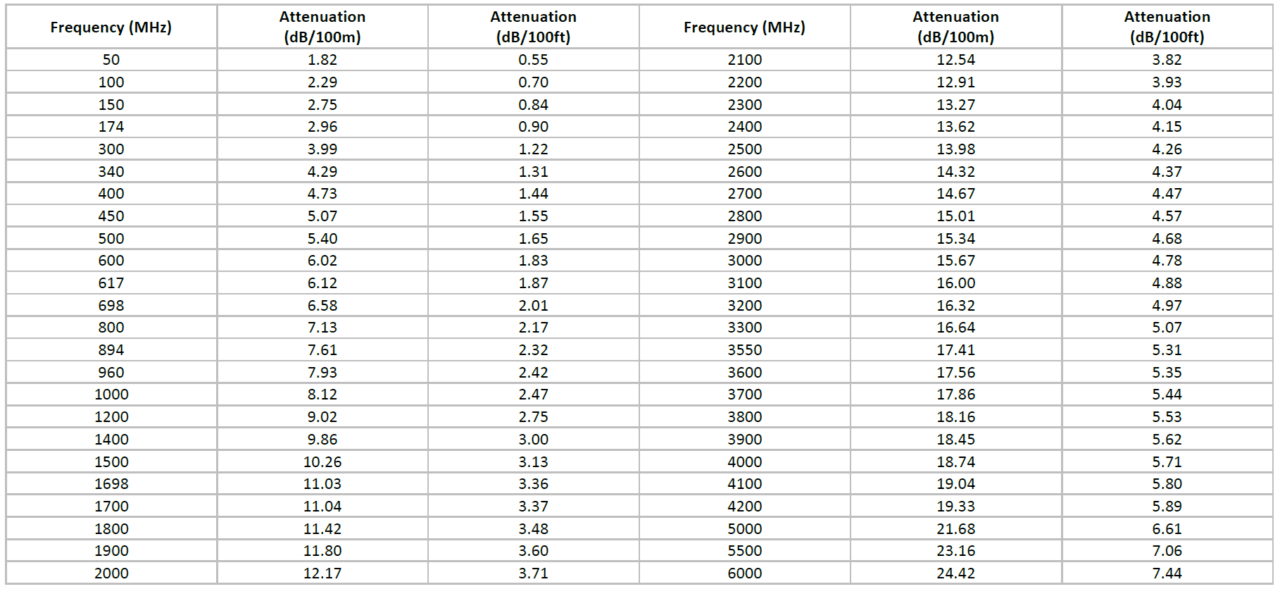

Attenuation Chart:



Note: Typical attenuation at ambient temperature +20°C (68°F)



 Datasheet: CS-F12PAx DS 2-0-1_2025_0616
