CS-F12UAK



• 1/2” Foamed PE Dielectric UV Resistant Coax

• UV Rated 1/2” Coax, Black Jacket, 100ft, 250ft and 500ft



Category:

Description




Electrical Specifications:

 Product Model

CS-F12UAK100



CS-F12UAK250





CS-F12UAK500



 Spool Size100 ft250 ft500 ft
 FrequencyDC-6000
 Impedance (ohm)50.0 ± 2.0
 Capacitance76 (pF/m), 23.2 (pF/ft)
 Inductance0.19(μH/m), 0.058 (μH/ft)
 Propagation Velocity (%)87
 DC Breakdown Voltage (KV)1950
 Insulation Resistance (MΩ)> 10,000
 Peak Power Rating (kW)40.0
 Cut-off Frequency (GHz)6

 VSWR. typical



100-800MHz | 1.25
800-2700MHz | 1.20
3000-4200MHz | 1.25
4800-5000MHz | 1.30
5150-5825MHz | 1.35





Mechanical Specifications:

 Diameter Over Inner Conductor (in/mm)

0.189±0.002 / 4.80±0.05

 Diameter Over Insulation (in/mm)0.480±0.008 / 12.20±0.20
 Diameter Over Outer Conductor (in/mm)0.547±0.010 / 13.90±0.25
 Diameter Over Jacket (in/mm)0.618±0.012/ 15.70±0.30
 Minimum Bending Radius-Single (in/mm)2.76 / 70
 Minimum Bending Radius-Multiple (in/mm)4.92 / 125
 Maximum Tensile Force (N/ lbf)800 / 180
 Cable Weight. (lb./ft (kg/m)0.12 / 0.18

 Shipping Dimension (in/m)



100ft Spool | 18.1×18.1×5.1 / 460x460x130


250ft Spool | 21.7×21.7×5.1 / 550x550x130


500ft Spool | 21.7×21.7×16.8 / 550x550x426

 Shipping Weight(lb./kg)



100ft Spool | 15.4 / 7.0
250ft Spool | 35.5 / 16.1
500ft Spool | 76.5 /34.7



Material:

 Inner ConductorCopper Clad Aluminum Wire
 InsulationFoam PE
 Outer ConductorRing Corrugated Copper
 JacketPE, Black UV Resistant
 Hanger Block



HB-F12D (dual, supports 3/8” or M10 threaded rod)


HB-F12S (single, supports 3/8” or M10 threaded rod)

 Prep Tool

AP-F12 (Prep-tool), FL-F12(Flaring tool), BL-F12 (Blades)
TL-F12(Tool kit included AP-F12, FL-F12 and hard case)

 Associated ConnectorsCN-NM-F12: N-Male / CN-NF-F12: N-Female
CN-4M-F12: 4.3-10-Male / CN-4F-F12: 4.3-10-Female
 Associated
Mounting Clip		CCL-F12S



Environmental Specifications:

 ApplicationIndoor/Outdoor
 Storage Temperature-55°C to +85°C
 Operating Temperature-40°C to +85°C
 Installation Temperature-20°C to +60°C

Compliance & Certification:



 Certification

UV Rated

 RoHSCompliant

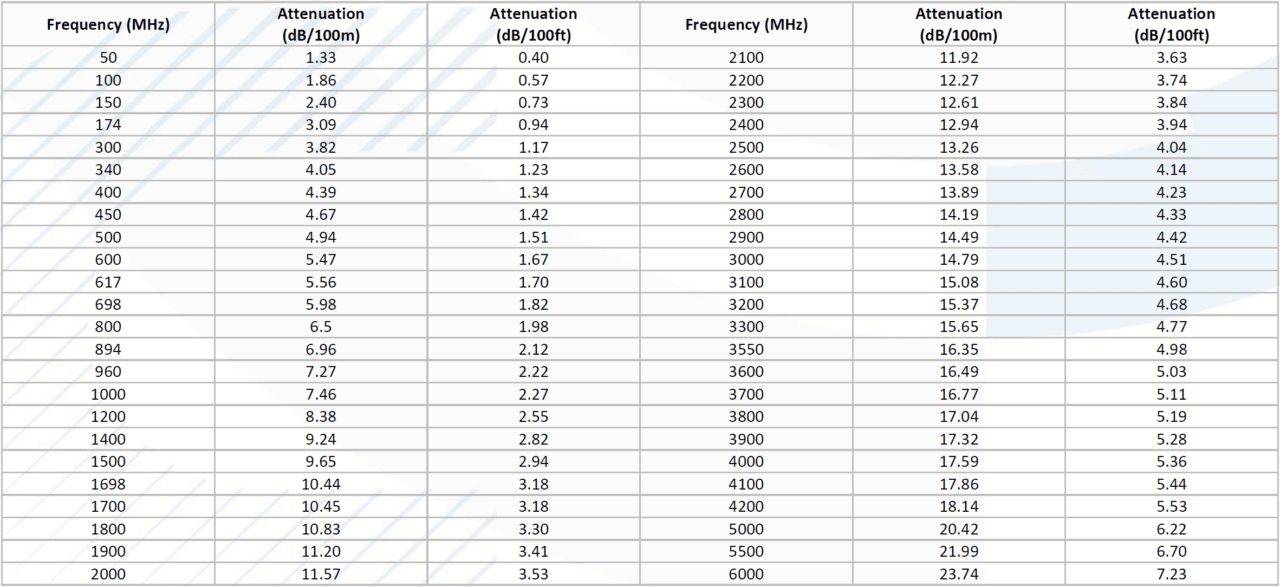

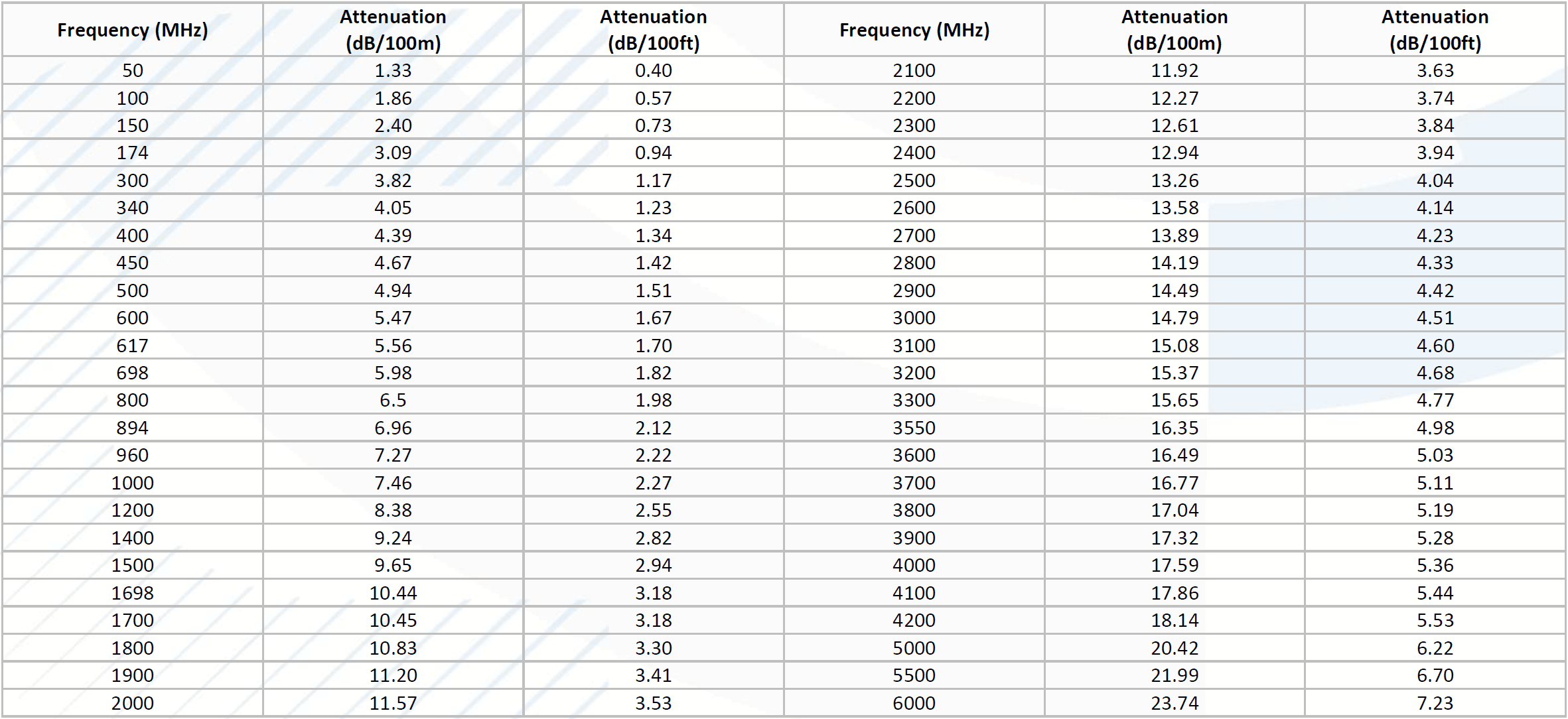

Attenuation Chart:






Note: Typical attenuation at ambient temperature +20°C (68°F)



 Datasheet: CS-F12UAKx DS 1-0-0_2026_0324
