IXL-EYN-H2P

134-176/340-570/617-960MHz, N-Female



Features:

• VHF omni Antenna covering 134-175/ 340-570/ 617-960MHz (VHF/UHF/700/800 Public Safety)

• Low-profile and suitable for indoor application

• Compact and cost-effective design

Description

Electrical Specifications:



 Product ModelIXL-EYN-H2P
 Frequency (MHz) 134-176 340-570 617-960
 Gain (dBi)-0.5 1.2 3.5
 PolarizationHorizontal
 Beamwidth Horizontal (°)360
 VSWR1.8 1.8 1.8
 Average Power, max (W)50
 Impedance (ohm)50



Mechanical Specifications:



 Dimension Diameter, Height (in/mm)

 15.16 x 14.09 x 0.06 / 385.0 x 358.0 x 1.6

 Weight (lb./kg) 1.17 / 0.53
 Shipping Dimension(in/mm) 15.94 x 14.96 x 1.77 / 405.0 x 380.0 x 45.0
 Shipping Weight(lb./kg) 1.81 / 0.82
 Radome Material & Color White
 Mounting/Connector Type Ceiling Mount, N-female

*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated”.

*Note: Not recommended for use with metal J boxes. Plastic or fiberglass J boxes are acceptable.



Environmental Specifications:



 ApplicationIndoor
 Operating Temperature-55°C to +70°C
 RoHSCompliant
 HumidityUp to 95%
 EnvironmentIP54*


Antenna Pattern:

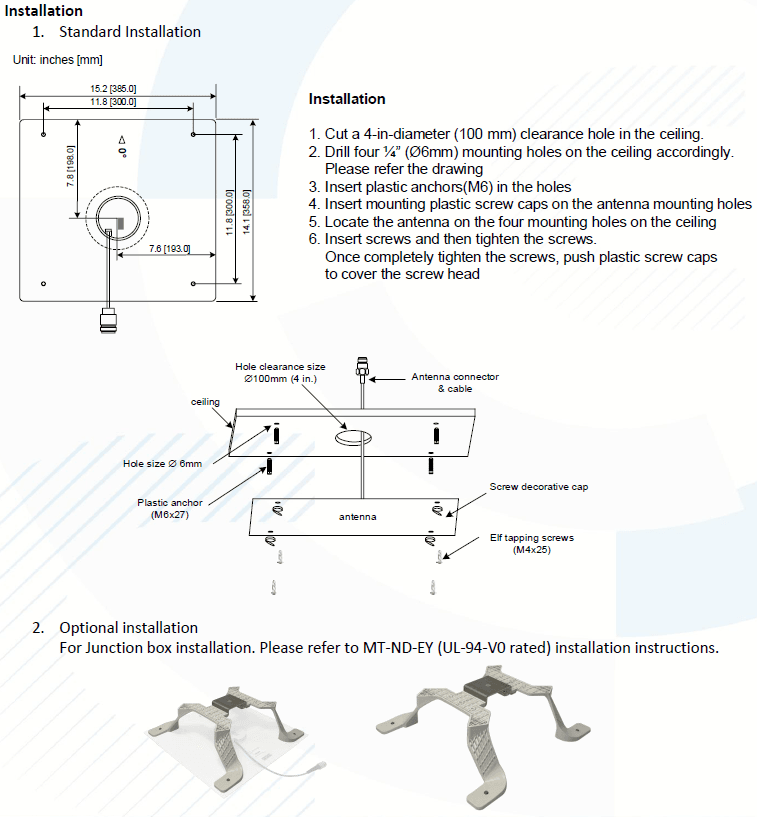

Outline Drawing:





Datasheet:

IXL-EYN-H2P DS 1-0-2_2024_0118
