IOX-MJN-V3UI
Omni Antenna with IP66 Protection
Low PIM(-153dBc), 698-2700MHz, N-Female
• Designed for waterproof application with IP66 protection
• Wideband coverage from 698 to 2700MHz
• Optimized for indoor and outdoor applications
• Compact and cost-effective form factor
• Compliant with UL-94-V0 flammability rating
Description
Electrical Specifications:
| Product Model | IOX-MJN-V3UI | ||
| Frequency (MHz) | 698-806 | 806-960 | 1695-2700 |
| Gain (dBi) | 1.8 ± 0.5 | 2.0 ± 0.5 | 3.0 ± 1.0 |
| Polarization | Vertical | ||
| Beamwidth Horizontal (°) | 360 | ||
| Beamwidth Vertical(°) | 90 | 70 | 35 |
| VSWR | ≤ 1.8 typical ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
| PIM(dBc) | < -153 @ 2 x 43dBm | ||
| Average Power, max (W) | 50 | ||
| Impedance (ohm) | 50 | ||
Mechanical Specifications:

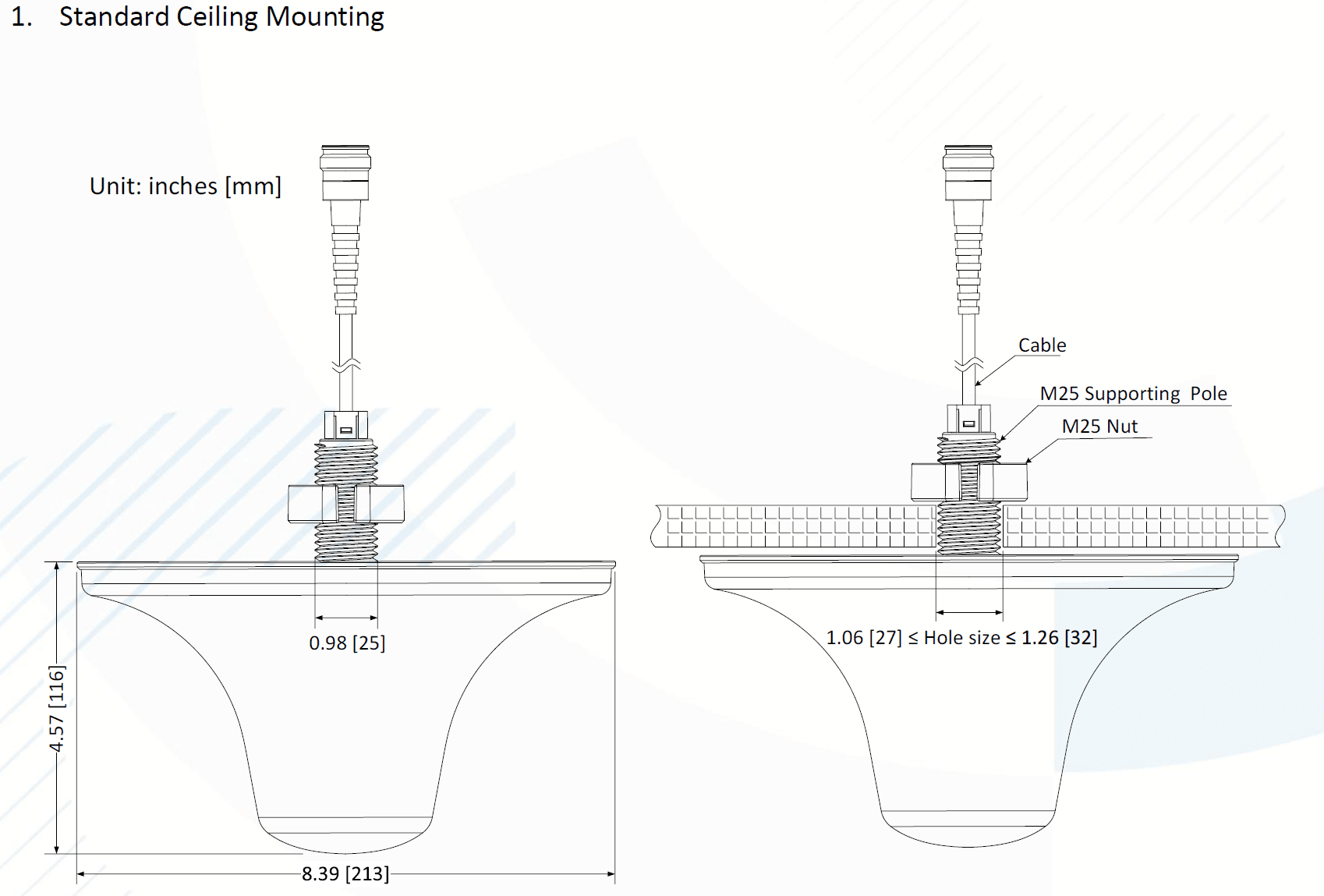

Dimension Diameter, Height (in/mm) | ∅ 8.0 x 4.6 / ∅ 213.0 x 116.0 |
| Weight (lb./kg) | 1.10 / 0.40 |
| Shipping Dimension(in/mm) | 7.09x7.09x7.09 / 180.0x180.0x180.0 |
| Shipping Weight(lb./kg) | 1.65 /0.75 |
| Radome Material & Color | ABS, White, RAL9003 |

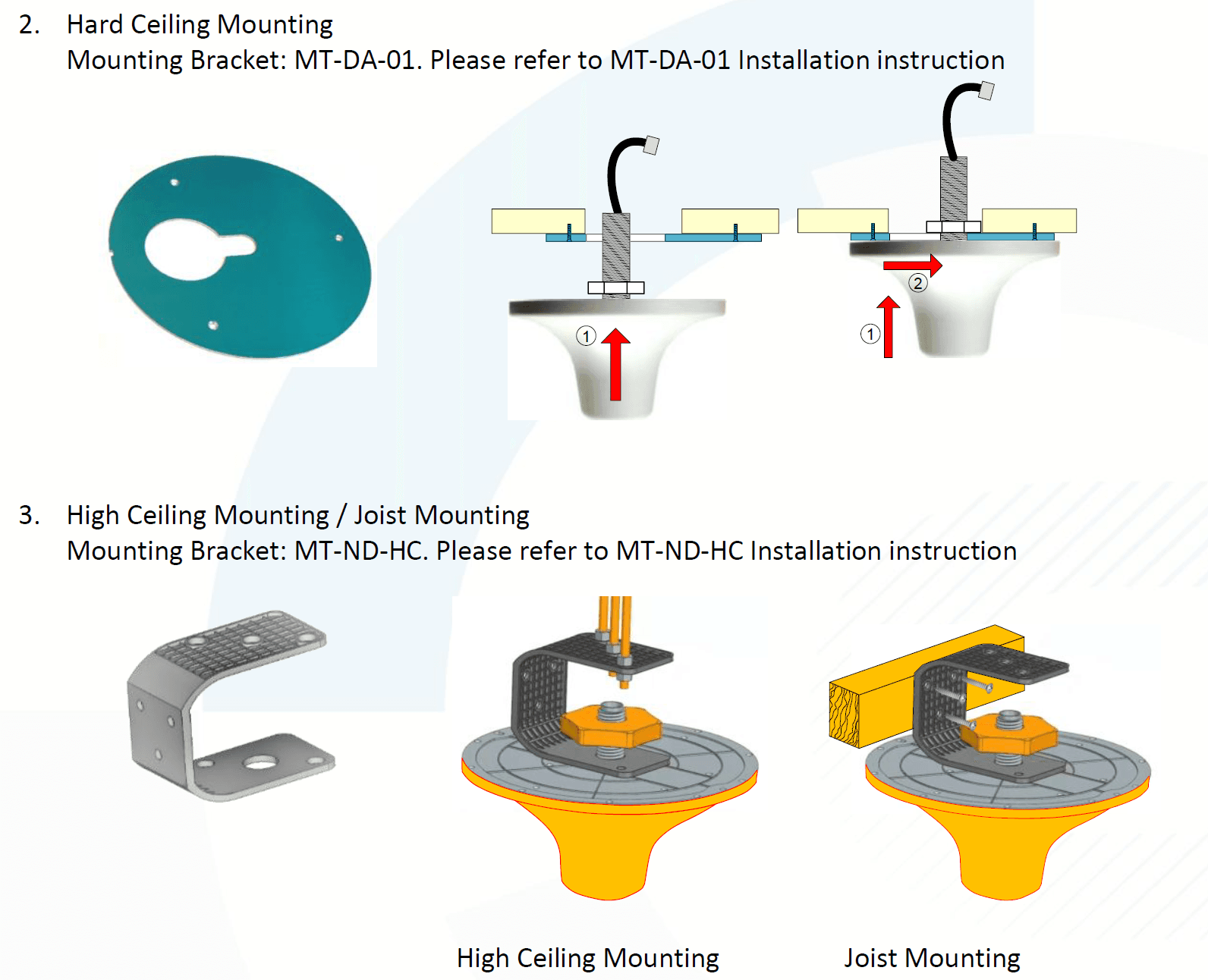

| Mounting | Ceil Mount, Option 1: Hard Ceiling mount bracket (MT-DA-01) Option 2: High Ceiling or Joist mount bracket (MT-ND-HC) |
| Flammability | UL-94-V0 |
*Note: Designed with an IP66 rating, the antenna is fully protected against dust ingress and high-pressure water exposure.
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -40°C to +65°C |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
| Environment | IP66 |

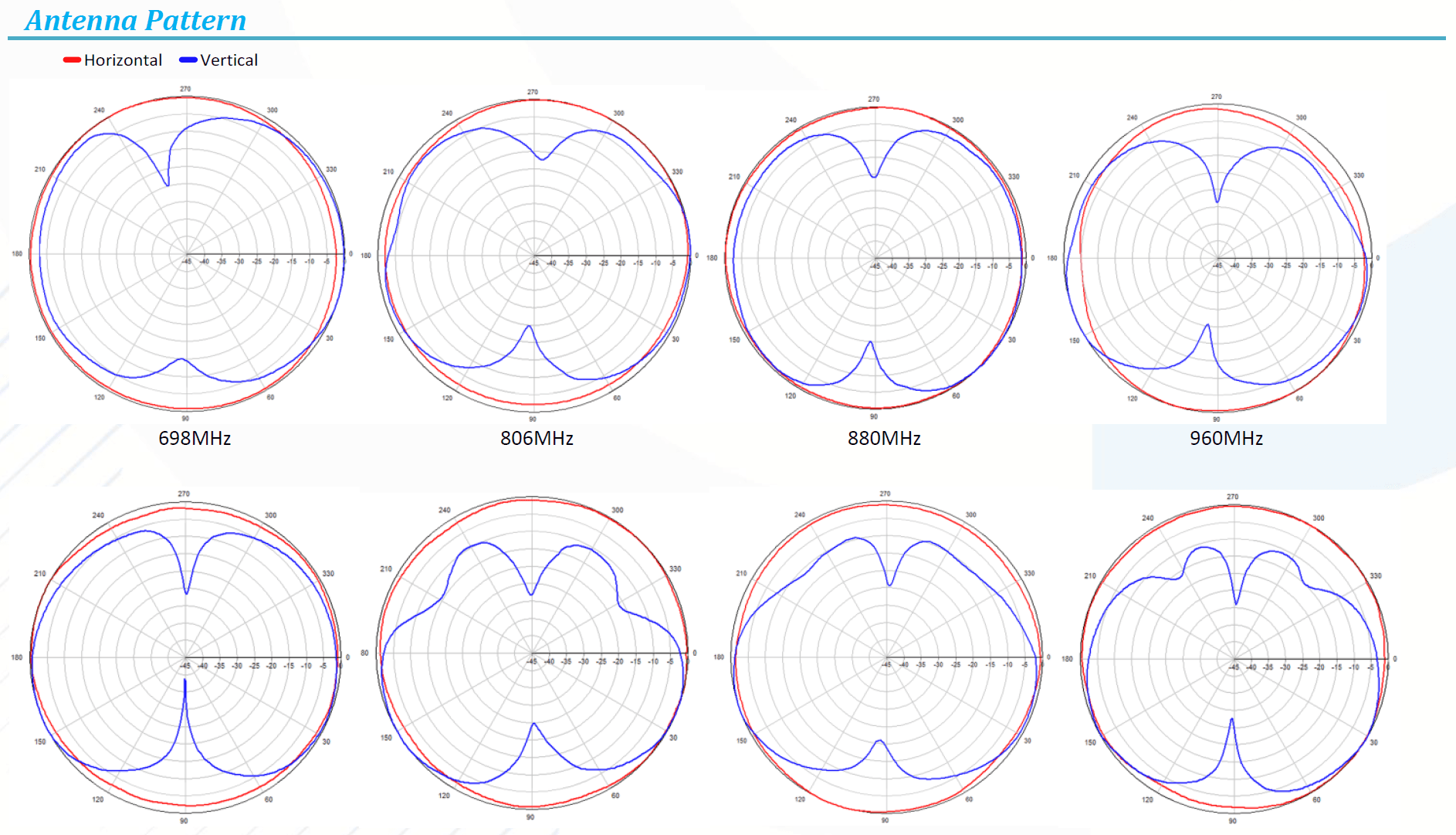

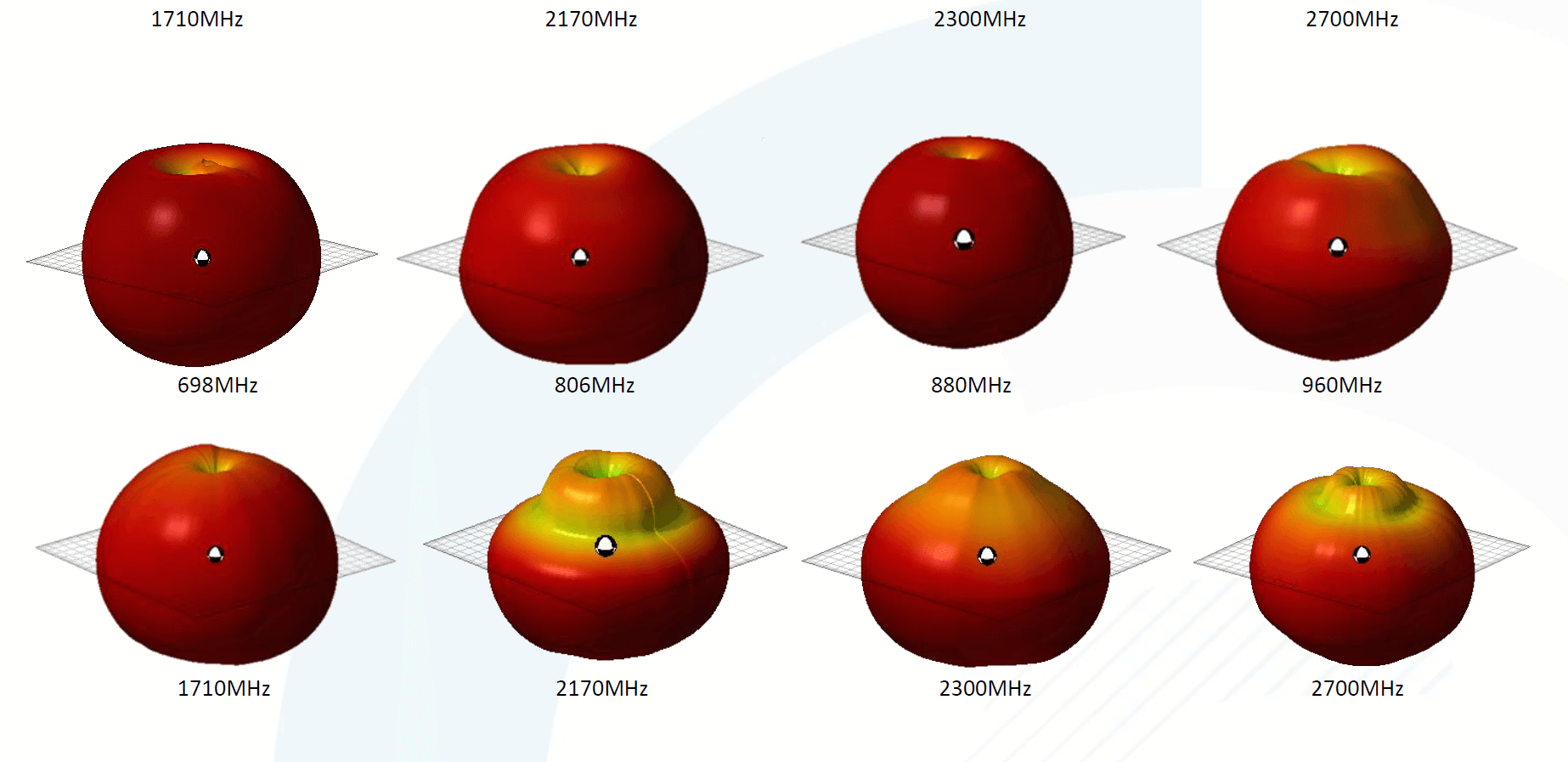

Antenna Pattern:
|
