S-SMSM3F-B141 / JS-SMSF3F-B141
JS-4M4MxF-B141 / JS-4M4FxF-B141
JS-NMNMxF-B141 / JS-NMNFxF-B141
JS-NMNMR1.5F-B141 / JS-NFNMR1.5F-B141 (R/A)

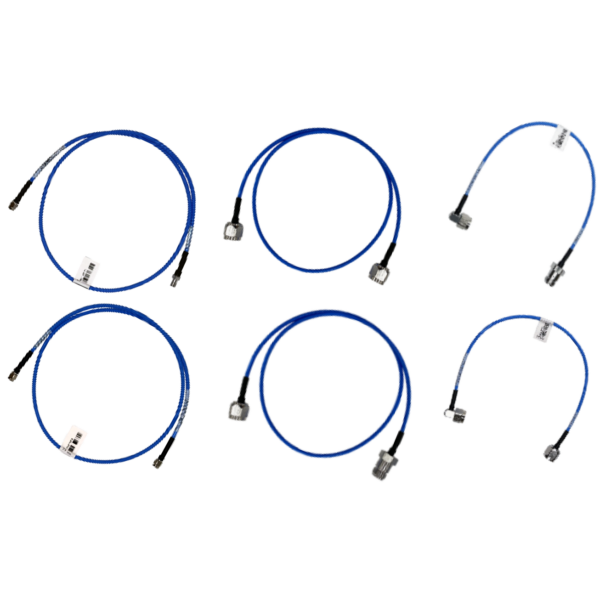

DC-6.0GHz, 4.3-10 type, N-type Connector, Blue
• Flexible .141 type, Low loss and Low PIM Jumper
• Plenum Rated Jumper with blue jacket
• Customized jumper length is available
• 100% tested and individually labeled with guaranteed PIM
Description
Electrical Specifications:
| Product Model | 1.5ft | 3ft | 6ft |
| 4.3-10 /M-M | JS-4M4M1.5F-B141 | JS-4M4M3F-B141 | JS-4M4M6F-B141 |
| 4.3-10 /M-F | JS-4M4F1.5F-B141 | JS-4M4F3F-B141 | JS-4M4F6F-B141 |
| N-type /M-M | JS-NMNM1.5F-B141 | JS-NMNM3F-B141 | JS-NMNM6F-B141 |
| N-type /M-F | JS-NMNF1.5F-B141 | JS-NMNF3F-B141 | JS-NMNF6F-B141 |
| N-type / M-M R/A | JS-NMNMR1.5F-B141 | NA | NA |
| N-type / F-M R/A | JS-NFNMR1.5F-B141 | NA | NA |
| SMA/ M-M | NA | JS-SMSM3F-B141 | NA |
| SMA/ M-F | NA | JS-SMSF3F-B141 | NA |
| Insertion Loss(dB) typical | Straight | R/A | ||
| 380MHz | 0.25 | 0.38 | 0.41 | 0.72 |
| 500MHz | 0.27 | 0.40 | 0.45 | 0.79 |
| 960MHz | 0.34 | 0.46 | 0.57 | 1.10 |
| 1700MHz | 0.43 | 0.55 | 0.75 | 1.38 |
| 1900MHz | 0.47 | 0.57 | 0.80 | 1.46 |
| 2100MHZ | 0.49 | 0.59 | 0.84 | 1.54 |
| 2700MHZ | 0.57 | 0.65 | 0.96 | 1.75 |
| 3600MHz | 0.67 | 0.72 | 1.12 | 2.05 |
| 3800MHz | 0.69 | 0.74 | 1.15 | 2.08 |
| 6000MHz | 0.85 | .088 | 1.45 | 2.66 |
| Insulation Resistance (M) | ≥ 5000 |
| Insulation Withstanding Voltage (V) | 750, RMS, 50Hz @ sea level |
| VSWR | ≤ 1.22 | ≤ 1.22 | ≤ 1.22 |
| PIM (dBc) | ≤ -161 @ 2 x 43dBm, 4.3-10 connector, ≤ -158 @ 2 x 43dBm, N-type connector |
| Impedance (ohm) | 50 |
Mechanical Specifications:
| Cable Type | Flexible 141 type |
| Connector type | 4.3-10/N-type with male to male & male to female |
| Cable Length | 1.5 ft, 3 ft and 6 ft. can be customized |
| Outer Conductor Material | Brass, Tri-Alloy Plated |
| Inner Conductor Material | Brass, Ag Plated |
| Insulator | PTFE |
Environmental Specifications:
| Application | Indoor/Outdoor |
| Operating Temperature | -40°C to +125°C |
| Relative Humidity (%) | Up to 95% |
| RoHS | Compliant |
| Environment | NA |
| Plenum rated class | UL-CMP |
Outline Drawing:
Jumper Bend Radius Guideline:
| ||
| ||
Datasheet: JS-B141 series DS 1-0-7_2025-0210 |
