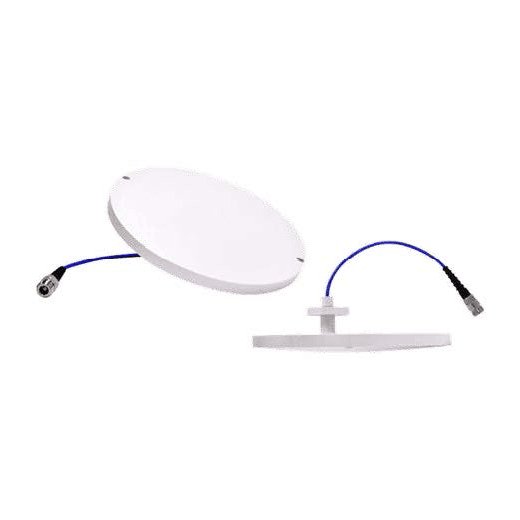

IXL-MJN-H4URT2
Indoor Wide Band Omni Antenna
698-2700MHz, N-Female, Low profile
Features:
• Omni-Directional Wideband Antenna (698–2700 MHz)
• Covers 700/800 MHz Public Safety Band and 2G/3G/4G cellular networks
• Low-profile design optimized for indoor applications
• Compact and cost-effective solution
• Compliant with UL-94-V0 flammability rating for safety
• Radio Frequency Identification tag preinstalled to communicated with the CriticalPoint™ Antenna Monitoring System
Description
Electrical Specifications:
| Product Model | IXL-MJN-H4URT2 | ||
| Frequency (MHz) | 698-806 | 806-960 | 1695-2700 |
| Gain (dBi) | 2.2 ± 0.5 | 3.5 ± 0.5 | 4.5 ± 1.0 |
| Polarization | Horizontal | ||
| Beamwidth Horizontal(°) | 360 | ||
| VSWR | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
| PIM (dBc) | < -153 @2 x 43dBm | ||
| Average Power, max (W) | 50 | ||
| Impedance (ohm) | 50 | ||
Mechanical Specifications:
Dimension Diameter, Height (mm/in) | Ø 8.7x 0.7 / Ø 220 x 18 |
| Weight (lb/kg) | 0.7 / 0.3 |
| Shipping Dimension (in/mm) | 8.9x8.7x3.6 / 225x220x90 |
| Shipping Weight | 1.1/ 0.5 |
| Radome Material & Color | ABS, White, RAL9003 |
| Flammability | UL-94-V0 |
| Mounting/Connector Type* | Ceil Mount, N-female |
Environmental Specifications:
| Application | Indoor |
| Operating Temperature | -55°C to +70°C |
| Humidity | Up to 95% |
| RoHS | Compliant |
| Environment | IP-54* |
*Note: Recommended for indoor application and the antenna can be used “outdoor garage rated”.
*Note: Not recommended for use with metal J boxes. Plastic or fiberglass J boxes are acceptable.

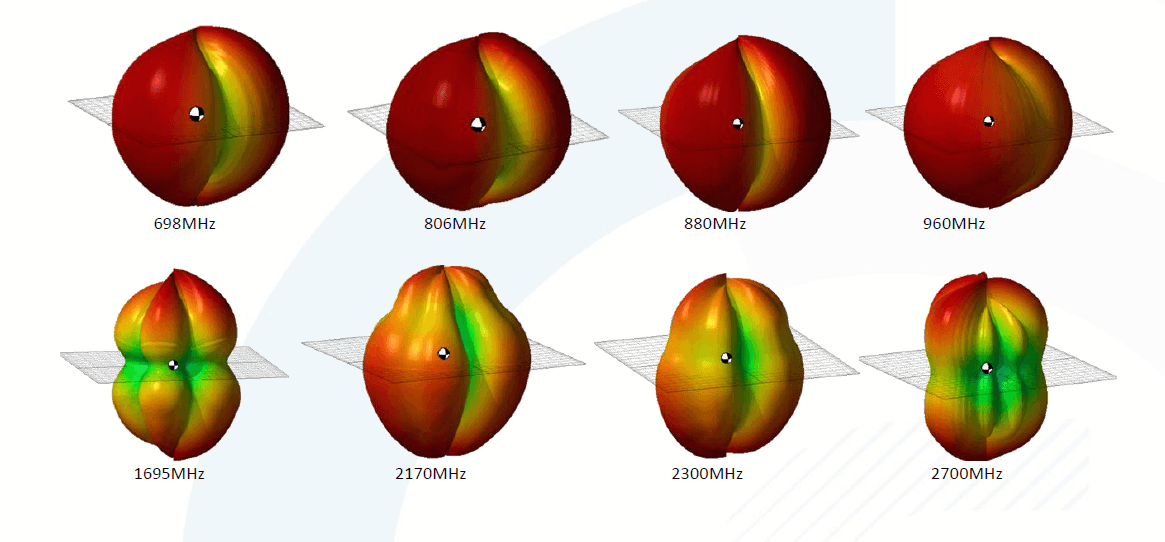

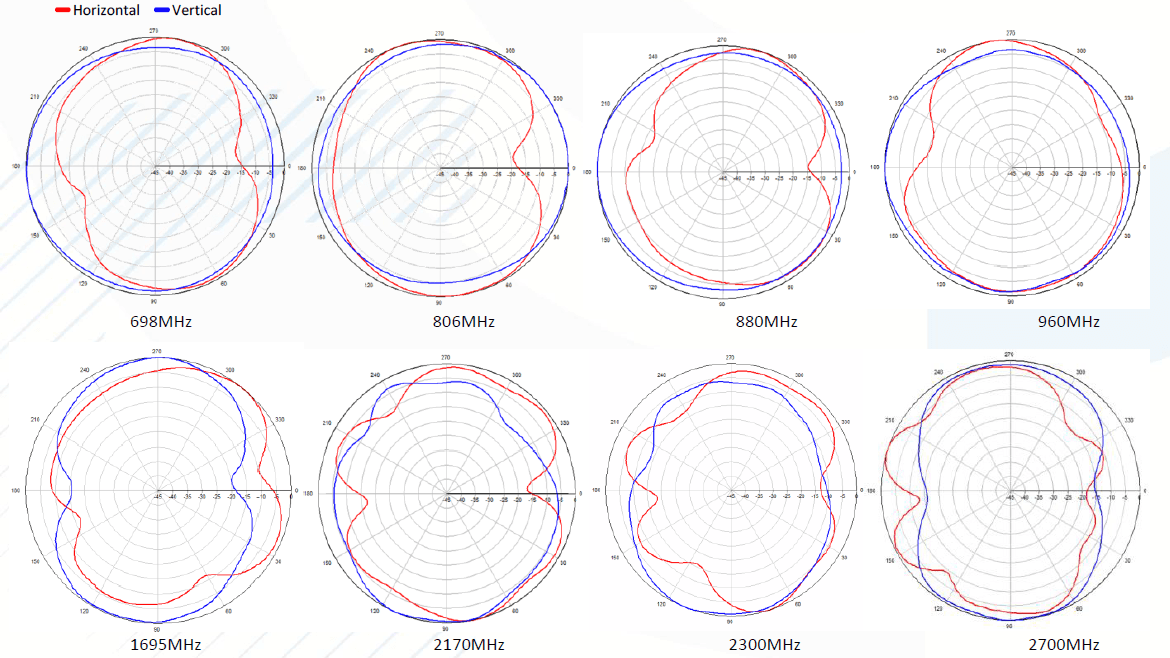

Antenna Pattern:
|

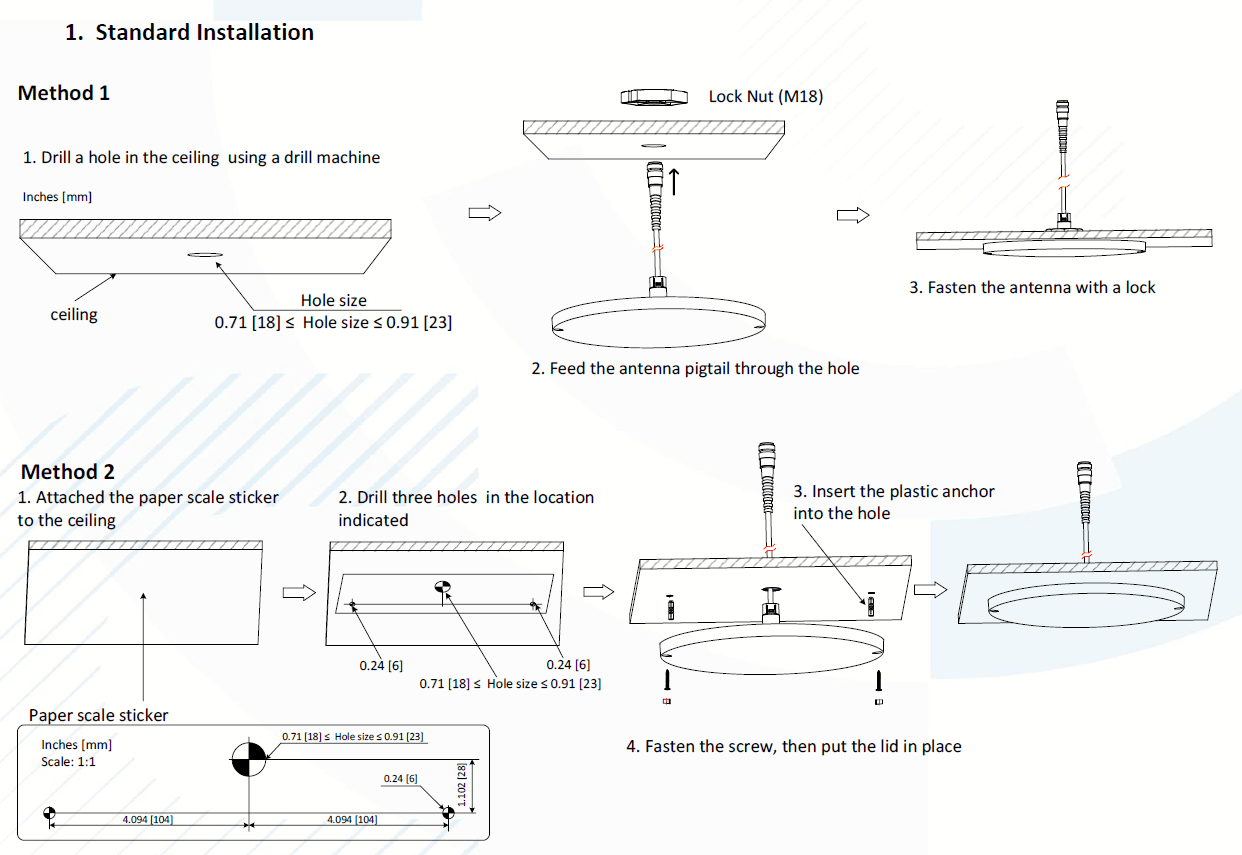

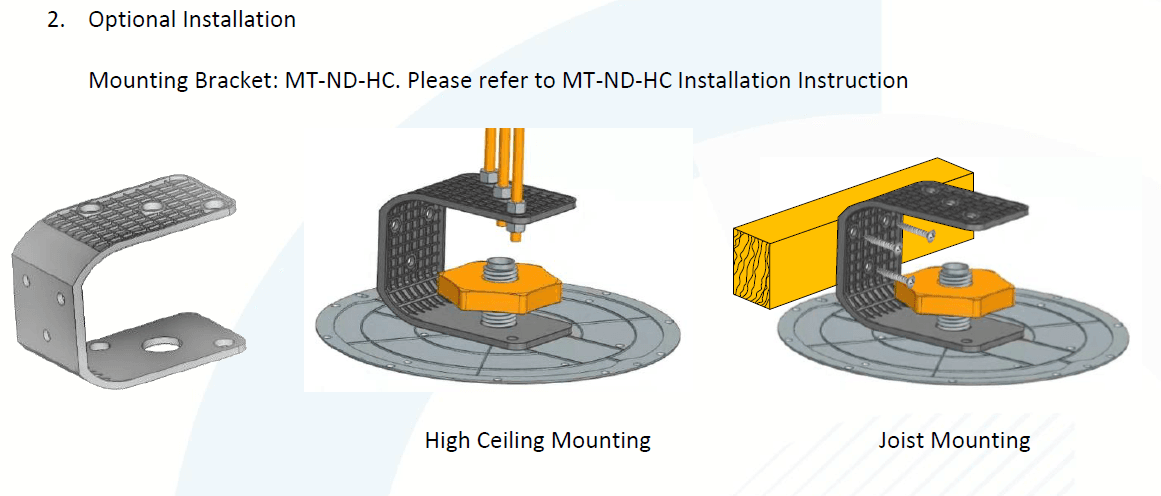

Outline Drawing & Installation Instructions:
| ||
Datasheet: IXL-MJN-H4URT2 DS 1-01_2025_0923
|
