IX-MJN-V5PRT2
698-2700MHz, N-Female
Supports Comba Antenna Monitoring System
• Omni antenna wideband covering 698-2700MHz
(700/800 Public Safety Band, 2G/3G/4G Network)
• Suitable for Indoor application, Non-PIM rating
• Compact ceiling mount and cost-effective design
• Radio Frequency Identification tag preinstalled to
communicated with the CriticalPointTM Antenna Monitoring System
Description
Electrical Specifications:
| Product Model | IX-MJN-V5PRT2 | |||
| Frequency (MHz) | 698-806 | 806-960 | 1695-2200 | 2300-2700 |
| Gain (dBi) | 2.0 ± 0.5 | 2.2 ± 0.5 | 5.3 ± 0.5 | 5.5 ± 0.5 |
| Polarization | Vertical | |||
| Beamwidth Horizontal (°) | 360 | |||
| VSWR | ≤ 2.0 | ≤ 1.8 | ≤ 1.5 | ≤ 1.5 |
| Average Power, max (W) | 50 | |||
| Impedance (ohm) | 50 | |||
Mechanical Specifications:
Dimension Diameter, Height (in/mm) | ∅ 7.3x 3.3 / ∅ 186 x 83 |
| Weight (lb./kg) | 0.6 / 0.25 |
| Shipping Dimension(in/mm) | 5.9x6.3x7.1 / 150.0x160.0x180.0 |
| Shipping Weight(lb./kg) | 1.1 / 0.5 |
| Radome Material & Color | ABS, White |

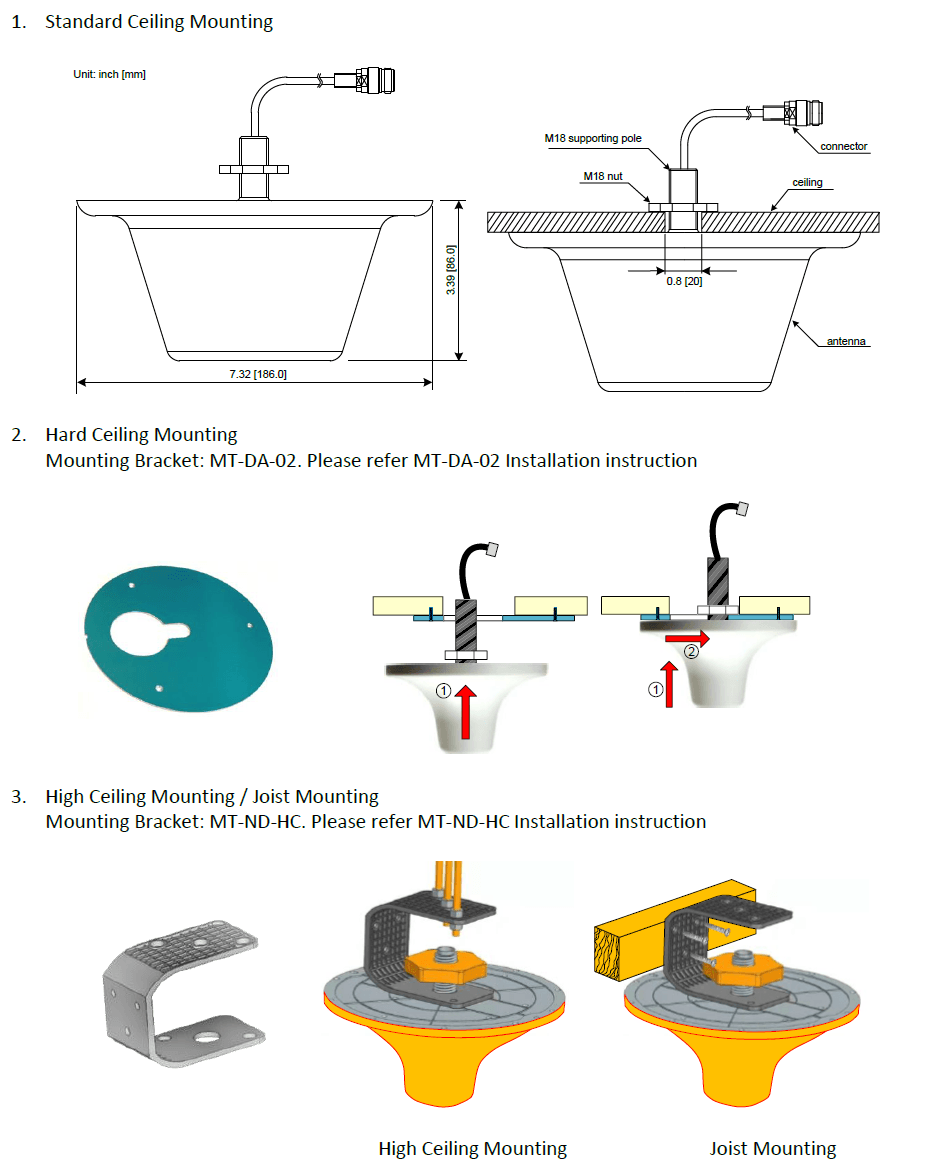

| Mounting | Ceil Mount MT-DA-02 mounting kit required for hard ceiling |
| Connector Type | N-Female |
Environmental Specifications:
| Application | Indoor* |
| Operating Temperature | -35°C to +60°C |
| Relative Humidity | Up to 95% |
| RoHS | Compliant |
* Note: Recommended for indoor application and the antenna can be used “outdoor garage rated”
** Note: Acceptable mounting backplanes; drywall, metal J boxes, Plastic or Fiberglass J boxes. MT-DA-02 mounting kit is required for hard ceiling

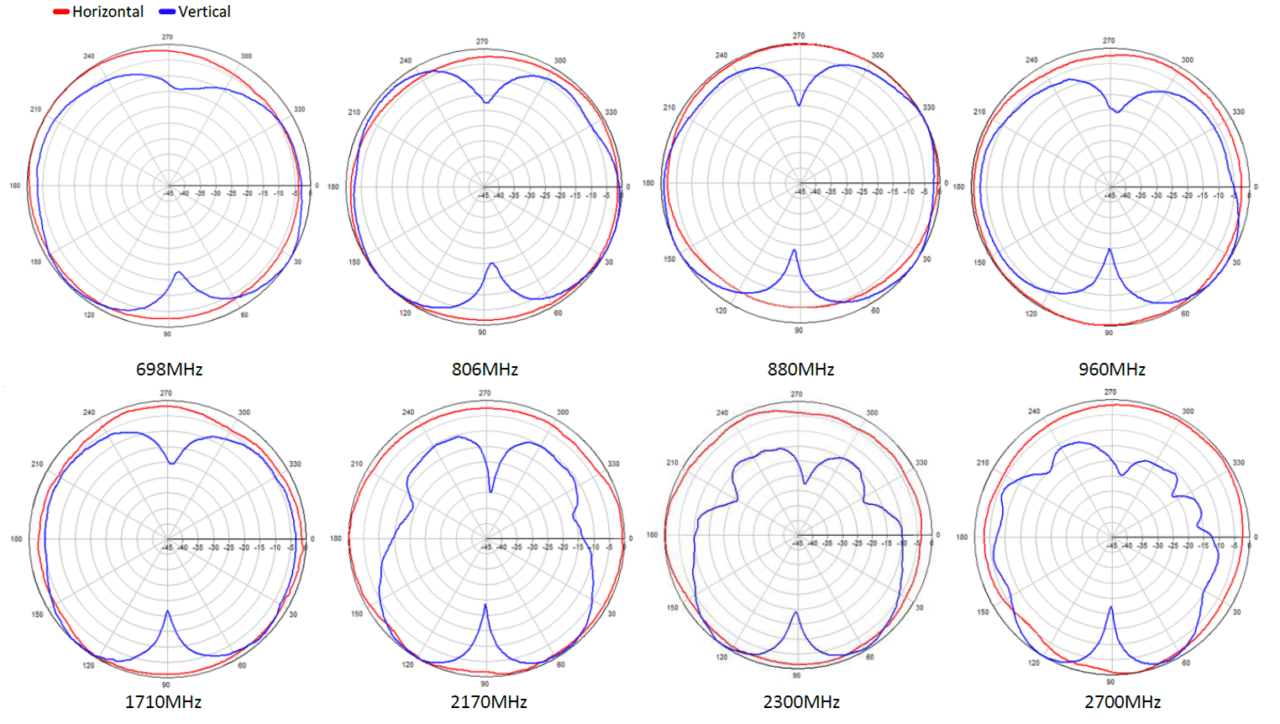

Antenna Pattern:
|
